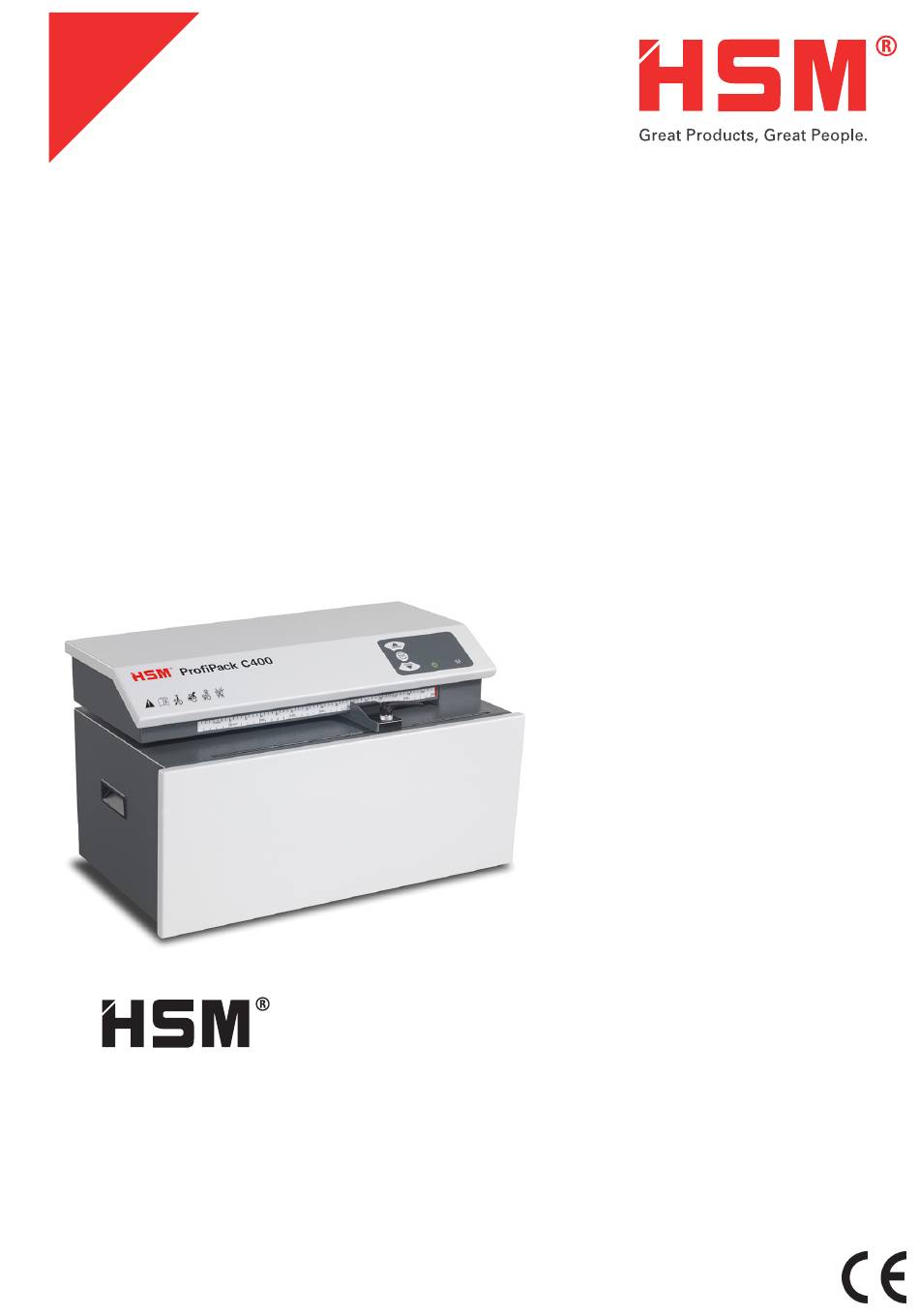

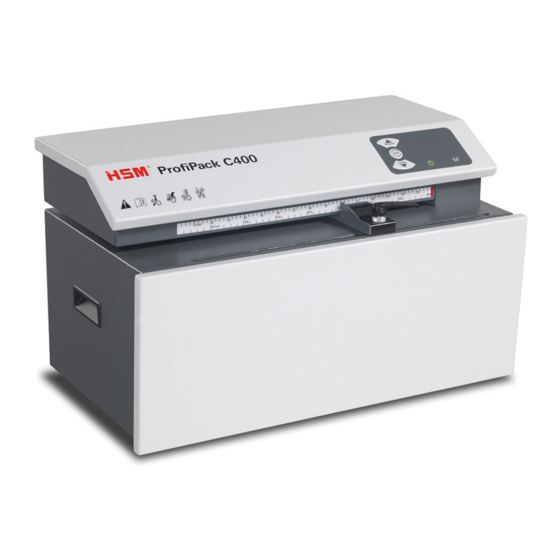

OPERATING INSTRUCTIONS
ProfiPack C400
1.528.999.200-A
– 08/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProfiPack C400 and is the answer not in the manual?

Questions and answers

Related Manuals for HSM ProfiPack C400

Summary of Contents for HSM ProfiPack C400

  • Page 1 OPERATING INSTRUCTIONS ProfiPack C400 1.528.999.200-A – 08/2018...

  • Page 2: Safety Instructions

    The ProfiPack C400 is exclusively designed ing it, and disconnect it from the for the manufacture of packaging cushions mains. made from cardboard. Service work may only be carried The warranty period for the machine is out by HSM Customer Service or 2 years. This guarantee does not cover by the service technicians of our wear, damage caused by incorrect handling, contractual partners. natural wear and intervention by third par- ties. • Make sure that the mains plug is well ac- cessible.

  • Page 3: Transportation And Installation

    3 Transportation and installation 4 Overview Use the recessed grips at the sides to transport the shredder. HSM GmbH + Co. KG Austrasse 1-9 88699 Frickingen / Germany Feed opening Safety notice Warning sticker / type plate Operator control panel Limit stop “Padding” flap...

  • Page 4: Operation

    The cutting unit starts up. Normal operation Flap up Feed in cardboard Secure setting with star grip screws on left (finger-tight). 415 mm • Cardboard widths of up to 415 mm can be processed. • Wider cardboard is automatically trimmed. • The cutting unit is switched off using the stop button. Padding Switch off Flap in lower position Move the power switch on the right-hand side Secure setting with star grip screws on left to position “0”. (finger-tight). ProfiPack C400 08/2018...

  • Page 5: Troubleshooting

    If a large quantity of cardboard has already been pulled in before the blockage occur- red, you can also press the forward button. This makes the cutting unit run forwards and shreds the remaining cardboard. During this function, the “Ready for opera- tion” and “Blockage” indicators flash alter- nately. For all other malfunctions, check whether the motor was overloaded before contacting our customer service. Let the machine cool down for approx. 15 – 20 mins. before re- starting. ProfiPack C400 08/2018...

  • Page 6: 10 Technical Data

    2.000 m Noise emission 66 - 68 dB(A) (idle / under load) 68 - 70 dB(A) Size W x D x H (mm) 610 x 395 x 375 Weight 47 kg This packaging padding machine complies with the relevant harmonisation legislation of the European Union: • Low voltage directive 2014/35/EU • EMC directive 2014/30/EU • RoHS directive 2011/65/EU The EU declaration of conformity can be requested from the manufacturer. ProfiPack C400 08/2018...
