2-CHANNEL REMOTE CONTROL P-257/4
DESCRIPTION
P-257/4 remote control is a transmitter
of EXTA FREE wireless control system.
It is used to realize following control
functions: switching on / switching off,
brightening / dimming, roller blinds
opening and closing, time mode op-
eration. The remote control is equipped
with a comfortable key ring and can be
easily kept with keys, etc.
FEATURES
● 4-channel radio transmitter (remote
control),
● remote control of EXTA FREE system
receivers,
● possibility of independent control of
four receivers,
● wide range of operation (up to 250 m),
● battery powered,
● modern design with extra, practical
chain finished with a key ring,
● possibility of simultaneous switching
on/switching off any number of EXTA
FREE system receivers,
● possibility of increasing operation ran-
ge by means of RTN-01 retransmitter.

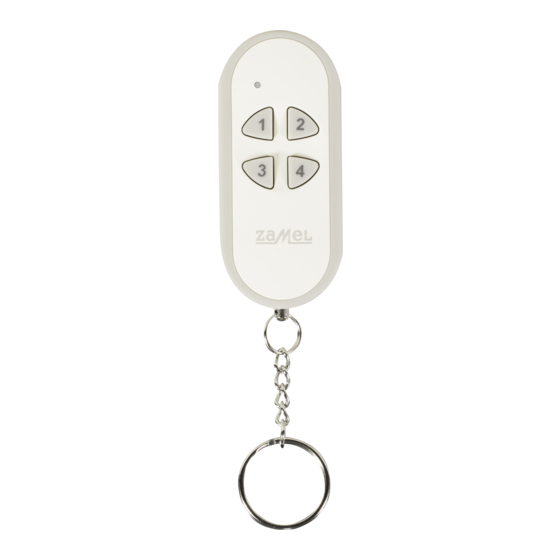

APPEARANCE
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. +48 (32) 210 46 65, fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl
TECHNICAL DATA
Input rated voltage: 3 V DC
Number of channels: 4
Optic signalling of transmitting/battery status: LED red diode
Ambient temperature range: -10 ÷ +55
Casing protection degree: IP20 (EN 60529)
Reference standard: ETSI EN 300 220-1
Optic signalling of transmitter's operation
MANUAL INSTRUCTION
P-257/4
Battery type: CR2032
Battery life: 3 ÷ 5 years (depending on use)
Transmission: radio 868,32 MHz
Coding way: unidirectional
Coding: addressing transmission
Range: up to 250 m in the open area
C
o
Operating position: free
Protection level: III
Pollution degree: 2
Dimensions: 74 x 33 x 11,5 mm
Weight: 0,02 kg
ETSI EN 300 220-2
Push-buttons
The symbol means selective
collecting of electrical and electronic
equipment. It is forbidden to put the
used equipment together
with other waste.
VER. 003_20.05.2011
