Zamel EXTA FREE P-256/8 Manual

COOPERATION AND OPERATING RANGE
ROP- ROP- ROB- SRP-
Symbol
01 02 01 02
RNK-02 180 m 200 m 200 m 200 m 200 m 250 m 180 m 250 m 250 m 180 m 250 m
RNK-04 180 m 200 m 200 m 200 m 200 m 250 m 180 m 250 m 250 m 180 m 250 m
P-256/8 230 m 250 m 250 m 250 m 250 m 300 m 200 m 300 m 300 m 230 m 300 m
P-257/4 (2) 180 m 200 m 200 m 200 m 200 m 250 m 180 m 250 m 250 m 180 m 250 m
RNM-10 230 m 250 m 250 m 250 m 250 m 300 m 200 m 300 m 300 m 230 m 300 m
RNP-01 160 m 180 m 180 m 180 m 180 m 200 m 160 m 200 m 200 m 160 m 200 m
RNP-02 160 m 180 m 180 m 180 m 180 m 200 m 160 m 200 m 200 m 160 m 200 m
RNL-01 160 m 180 m 180 m lack*
RTN-01 200 m 200 m 200 m 200 m 200 m 250 m 200 m 250 m 250 m 200 m 250 m
RCR-01 160 m 180 m 180 m lack*
RTI-01 160 m 180 m 180 m 180 m 180 m 200 m 160 m 200 m 200 m 160 m 200 m
RXM-01 230 m 250 m 250 m 250 m 250 m 300 m 200 m 300 m 300 m 230 m 300 m
* 1-channel transmitters do not cooperate with roller blind controllers.
CAUTION: The given range concerns open area - an ideal condi-
tion without any natural or artificial obstacles. If there are some
obstacles between a transmitter and a receiver, it is advisable to
decrease the range according to: wood and plaster: from 5 to 20 %,
bricks: from 10 to 40 %, reinforced concrete: from 40 to 80 %, metal:
from 90 to 100%, glass: from 10 to 20 %, Over- and underground
medium and high electrical power lines, radio and television trans-
mitters, GSM transmitters set close to a device system have also a
negative influence on the range.
SRP- RWG- RWL- ROM- ROM- RDP-
03 01 01 01 10
lack* 200 m 160 m 200 m 200 m 160 m 200 m
lack* 200 m 160 m 200 m 200 m 160 m 200 m
8-CHANNEL REMOTE CONTROL P-256/8
P-256/8
RTN-
01 01
TECHNICAL DATA
Input rated voltage:
Battery type:
Battery life:
Number of channels:
Transmission:
Coding way:
Coding:
Range:
Optic signalling of transmitting/bat-
tery status:
Ambient temperature range:
Operating position:
Casing protection degree:
Protection level:
Pollution degree:
Dimensions:
Weight:
Reference standard:
DESCRIPTION

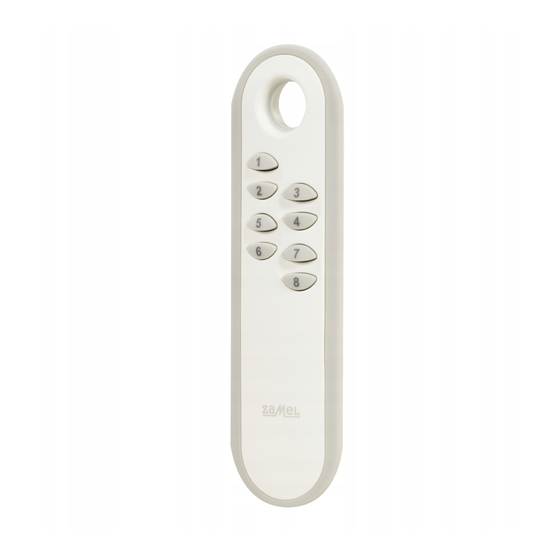

8-channel remote control P-256/8 is a universal transmitter which allows
to realise control functions as: lighting control, roller blinds opening and
closing, entry and garage gates opening/closing, etc. The remote control
is equipped with backlight elements which give signal conected with op-
erating and ergonomic silicone keyboard.
3 V DC
CR2032
3 ÷ 5 years (depending on use)
8
radio 868,32 MHz
unidirectional
addressing transmission
up to 300 m in the open area
2 x LED red diode
-10 ÷ +55 C
o
free
IP20 (EN 60529)
III
2
152 x 43 x 17,5 mm
0,06 kg
ETSI EN 300 220-1,
ETSI EN 300 220-2
