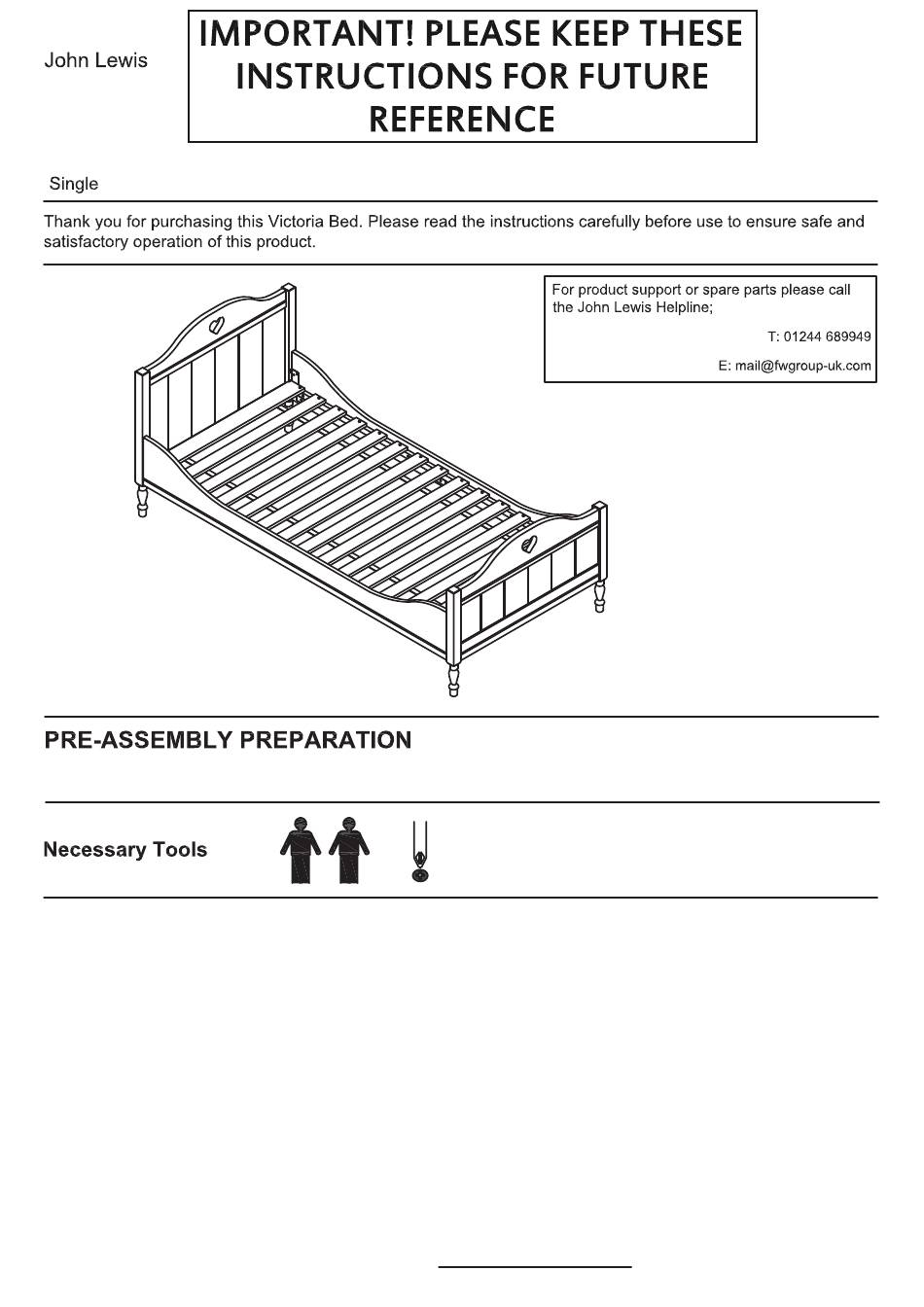

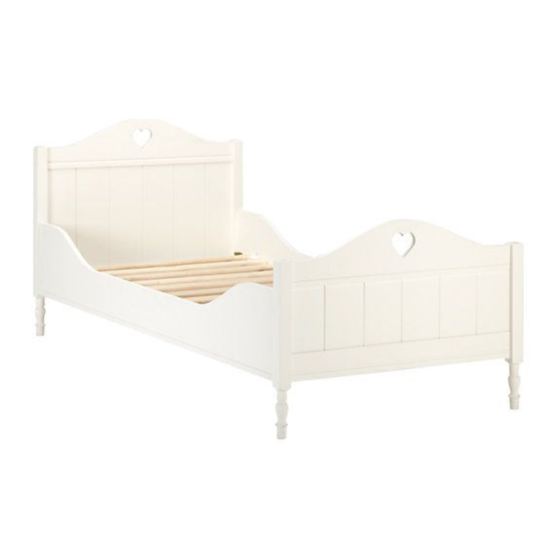

Victoria Bed
Stock code: 803/67902
Please ensure instructions are read in full before attempting to assemble this product.
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet. If any components are missing, please contact the John Lewis Helpline.
This product is HEAVY. It should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 60 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.
This bed is not designed to be dismantled for storage or transportation after assembly.
If you require any additional information or have any issues with this product please call the
John Lewis Helpline on 01244 689949 or email mail@fwgroup-uk.com.
1/7
Advertisement
Related Manuals for John Lewis Victoria 803/67902
Summary of Contents for John Lewis Victoria 803/67902
- Page 1 Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact the John Lewis Helpline. This product is HEAVY. It should be assembled as near as possible to the point of use. TAKE CARE WHEN LIFTING to avoid personal injury and (or) damage to the product.
- Page 3 Attach the PS Bracket (D) to the Side Rails (3), securing in place by using Spanner (E) to tighten the M6 x 18mm Bolt (C) and the M6 Spring Washer (F) as shown in the diagram below. Next, secure by using a screwdriver to tighten the M3.5 x 16mm Screws (A) to the PS Bracket (D) as shown in the diagram below.
- Page 4 Starting at the headend, place one of the end Slats (4) as close to the headboard as possible, and pull the rest of the slats down towards the footboard. Ensure the slats are spaced evenly across the bed and secure in place using Screws M4 x 32mm (B). This product is not designed to be dismantled for storage or transportation after assembly.
-
Page 6: Care And Maintenance
Care and Maintenance Wood furniture Wood displays different grain patterns depending on which way they are cut - for example, the ‘medullary ray’ which can appear on oak furniture is a mark of good quality timber - these are just characteristics of the natural beauty of the wood. -
Page 7: Safety Instructions
If you need any additional information or have any issues with this product please call the John Lewis helpline on 01244 689949 or email mail@fwgroup-uk.com This bed is for use with a standard single size mattress L190 x W90 x H18.
