John Lewis

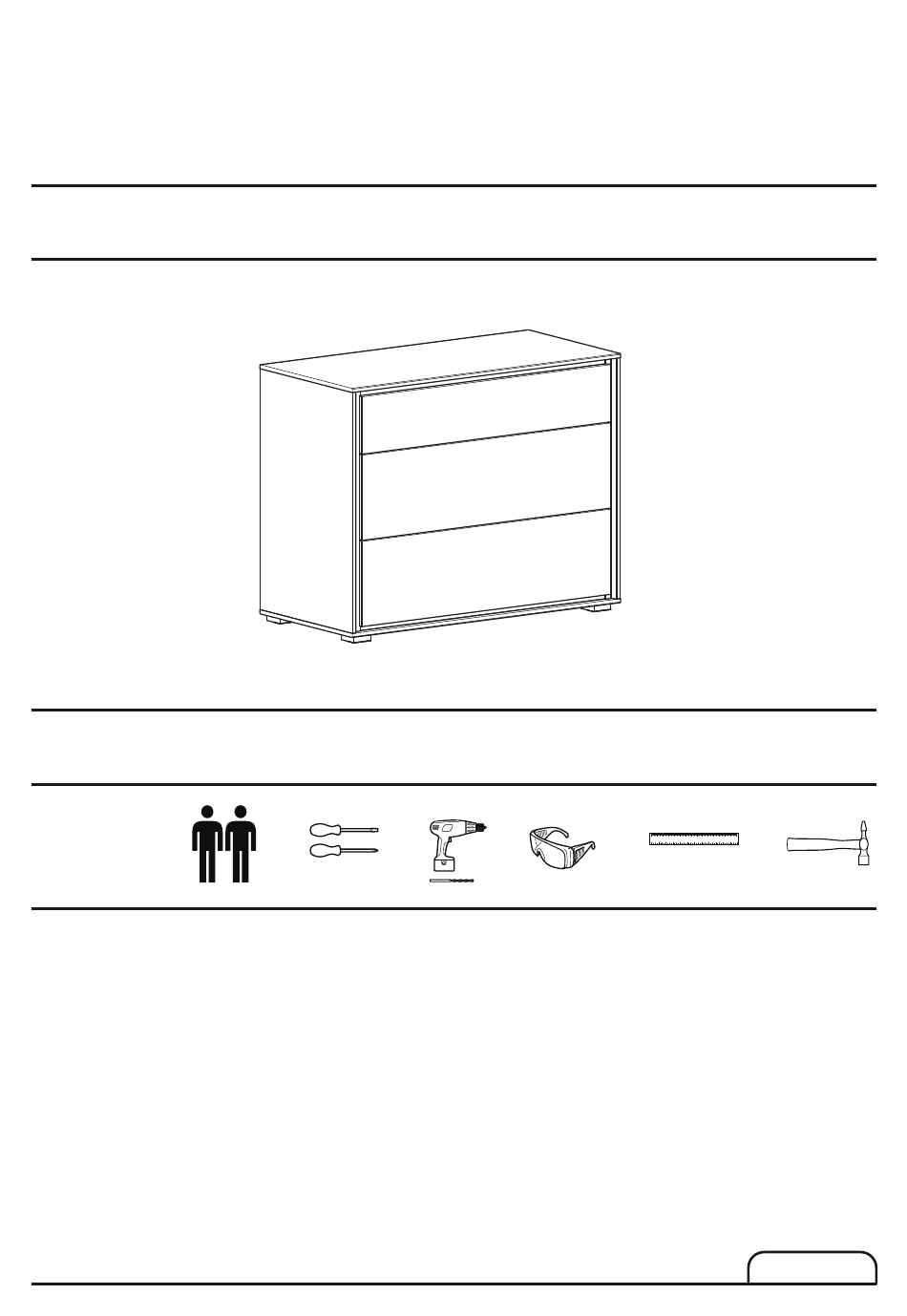

Thank you for purchasing this Napoli chest 3 drawers. Please read the instructions carefully before use
to ensure safe and satisfactory operation of this product.
PRE-ASSEMBLY PREPARATION
Please ensure instructions are read in full before attempting to assemble this product.
Necessary Tools
Please check the pack contents before attempting to assemble this product.A full checklist of compo-
nents is given in this leaflet. If any components are missing, please contact the John Lewis Helpline.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 50 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
Read this leaflet in full before commencing assembly.
If you are missing some fittings please contact our spare parts helpline on 0330 005 9435.
Opening hours are 9am - 5pm Monday to Friday.
Napoli chest 3 drawers
Screwdriver
Stock Code: 80310604
Drill
Eye protection
0
0
20
30
40
50
60
70
80
90
00
0
20
30
40
50
0
2
3
4
5
6
Ruler/tape
Small hammer
measure
Page 1
NAN 02/14
Advertisement
Related Manuals for John Lewis Napoli 80310604
Summary of Contents for John Lewis Napoli 80310604
- Page 1 Please check the pack contents before attempting to assemble this product.A full checklist of compo- nents is given in this leaflet. If any components are missing, please contact the John Lewis Helpline. This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE WHEN LIFTING to avoid personal injury and (or) damage to the product.
- Page 2 Fittings checklist Metal dowel x 26 30mm Screw x 20 Middle cam lock x 16 30mm Short cam lock x 10 Wooden dowel x 32 25mm Nail x 30 Nail guide x 1 11mm Euroscrew x 12 15mm Screw x 2 30mm Screw x 12 Support foot x 4 Bracket “L”...
-
Page 3: Parts Checklist
Parts checklist Page 3 NAN 02/14... - Page 4 Step by step assembly instructions Step One ttach 4x metal dowels ( ) into the pre-drilled holes on top panel (1) as shown. Use a screwdriver to turn fitting ( ) clockwise to fix. ttach 4x metal dowels ( ) into the pre-drilled holes on bottom panel (3) as shown. Use a screwdriver to turn fitting ( ) clockwise to fix.
- Page 5 Step by step assembly instructions Step Two ttach 6x wooden dowels (E) into the pre-drilled holes as shown on side panel (2) as shown. Place 4x cam lock (C) into the holes on side panels (2) as shown, arrow pointing towards the bolt. ttach 2x metal dowels ( ) into the pre-drilled holes on side panel (2) as shown.
- Page 6 Step by step assembly instructions Step Four ttach 2x wooden dowels (E) into the pre-drilled holes on rail (5) as shown. Place 2x cam lock (C) into the holes on side panels (5) as shown, arrow pointing towards the bolt. Repeat for the other rail Step Five ttach 2x metal dowels ( ) into the pre-drilled holes, in only two of four rail (7) as shown.
- Page 7 Step by step assembly instructions Step Six Fix two rails (7) onto side panel (2) using 6x screw (B). Pay attention to fix in the front part of side panel (2) the rail with the metal dowels fixed as show. Repeat for the other side panel Step Seven ttach rails (4) (5) onto side panels (2) as shown.
- Page 8 Step by step assembly instructions Step Eight ttach top panel (1) onto side panels (2) as shown. Ensure metal dowels ( ) and wooden dowels (E) are aligned correctly with the holes of matching parts before attaching. Secure top panel (1) onto side panels (2) using a screwdriver to turn fitting (C) clockwise to fix. Step Nine ttach bottom panel (3) onto side panels (2) as shown.
- Page 9 Step by step assembly instructions Step Ten Position back panel (6) as shown ttach 4x support foot (M) to bottom (3) with 8x screw(B). Step Eleven ttach back panel (6) onto back side of the unit using 30x nails (F), with the help of the nail guide (G). Important: The cabinet MUST be ‘square’...
- Page 10 Step by step assembly instructions Step Twelve With help of an assistant, carefully stand up the unit upright Important: Two people are needed here Step Thirteen Fix runner parts (Z1) (Z2) through holes shown in the detail view using euroscrews (H). Page 10 NAN 02/14...
- Page 11 Step by step assembly instructions Step Fourteen To prevent possible overbalancing we recommend that this unit is secured to a suitable wall by use “L” Bracket (N) fitted to the Top of the unit. Loosen the screw (I) and fix “L” bracket (N) to the wall using spacer (O) and appropriate wall plug and screw (not included) Tighten Screw (I) See wall fixings guide at the end of booklet.
- Page 12 Step by step assembly instructions Step Fifteen ttach 4x wooden dowels (E) into the pre-drilled holes on drawer sides (15) (16) as shown, Place the cam lock (D) into the holes on drawer sides (15) (16) as shown, arrow pointing towards the bolt, ttach 2x metal dowels ( ) into the pre-drilled holes on drawer front (13).
- Page 13 Step by step assembly instructions Step Seventeen Slide drawer bottom panel (9) into the drawer box grooves. Position drawer front (13) onto drawer box, turn locking nuts (D) clockwise to lock. Step Eighteen ttach 4x wooden dowels (E) into the pre-drilled holes on drawer sides (11) (12) as shown. Place the cam lock (D) into the holes on drawer sides (11) (12) as shown arrow pointing towards the bolt, ttach 4x metal dowels ( ) into the pre-drilled holes on drawer front (8).
- Page 14 Step by step assembly instructions Step Nineteen Fit the RH (14) and LH (15) drawer sides to the drawer back (16) using 30 mm screws (L), Repeat for the second drawer. Step Twenty Slide drawer bottom panel (9) into the drawer box grooves, Position drawer front (8) onto drawer box, turn locking nuts (D) clockwise to lock.
- Page 15 Step by step assembly instructions Step Twenty-one Pull out the runners, then ensure plastic securing pegs are to the OUT position. Page 15 NAN 02/14...
- Page 16 Step by step assembly instructions Step Twenty-two Slide the drawer box tilted until the stop. ttach the drawer box leaning on the runners. Push the plastic securing pegs in the IN position Page 16 NAN 02/14...
- Page 17 Step by step assembly instructions Step Twenty-three Use the small plastic knob of the runners to align the drawers if needed. Page 17 NAN 02/14...
-
Page 18: Care And Maintenance
Wall fixing - if in doubt seek professional advice Wood Brick or Masonry Cavity wall If xing to wood Use an appropriate Special toggle make sure that it wall plug provided you wall plugs are isn't chipboard as are sure your wall is needed. -
Page 19: Safety Instructions
It must under no circumstances be used free-standing.No liability will be accepted for damage or injury caused by inadequate fixing or use without fixing. PLEASE KEEPTHESE INSTRUCTIONS FOR FUTURE REFERENCE John Lewis Partnership 171Victoria Street London SWIE 5NN www.johnlewis.com Page 19...
