Final Assembly; Powering Up And Testing - JOLIN LAB TABOR Build Manual

At last, put the panel on - check its direction - tighten the nuts.
Then solder all the front panel components.
tip: we are soldering them now to ensure that all the mechanical parts are
aligned with the panel.
Before powering it up:
•
Check the power header for shorts with the multimeter.
tip: follow this tutorial
how to perform this procedure.
•
Mind the polarity on the header socket of your PSU,
How to check if the module is doing its things properly?
•
Play a bit with the knobs until you are sure that all the 7 LEDs light up correctly
•
Blue LEDs are on regardless of the RM input
•
All the three outputs are working (play with the knobs if the TR out is silent)
2
https://www.youtube.com/watch?v=qS0SoIiiQCo
2
by Quincas Moreira - aka SynthDiyGuy if you have any doubts on

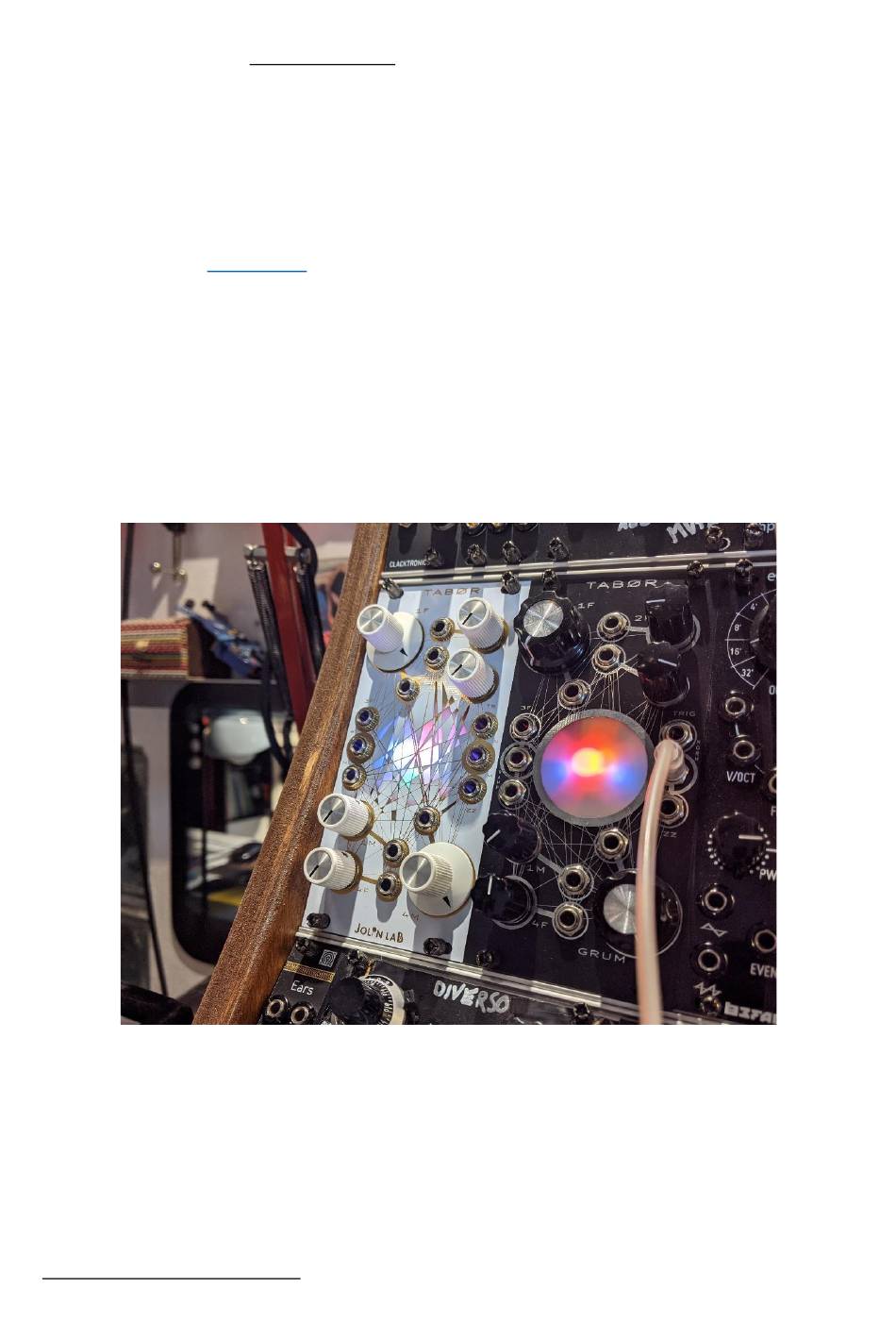

done! enjoy your newborn
TABØR
remember that red line is -12v
