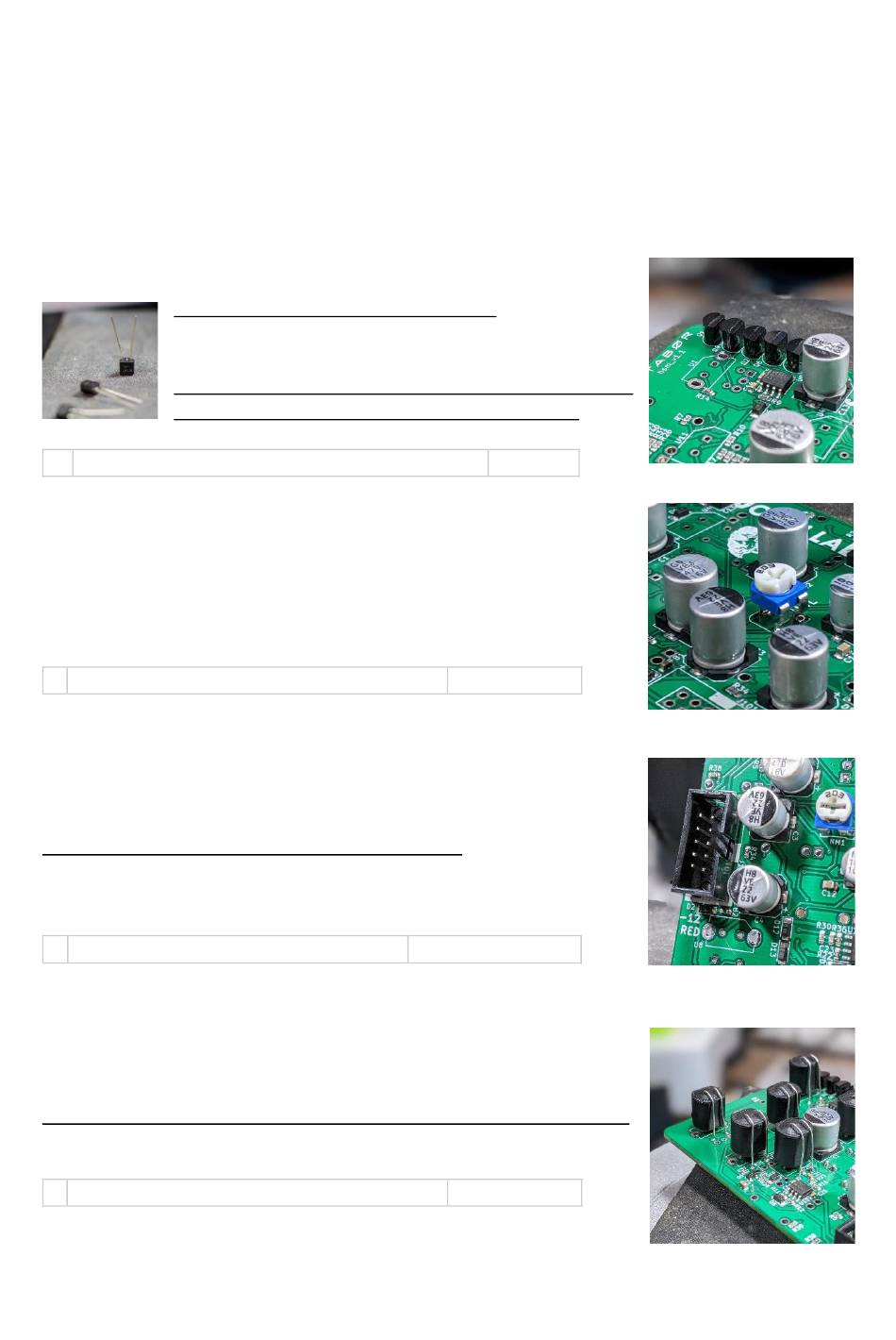

transistors:

Remove the middle leg of the transistors (pin 2: the base).
tip: you can gently move it back and forth until it breaks,
or you can cut it - the shortest possible - with the cutter.
The "D" shape white symbol on the PCB needs to be
aligned with the "D" shape of the transistor's body.
5 Q1, Q2, Q4, Q6, Q7

trimmer:

This trimmer regulates the NM output level. Any value around 20k - 50k
will do.
1 NM1

eurorack power socket:

Place the socket matching the drawing on the PCB. Be careful with the
notch direction.
tip: solder one pin and check. If the socked is aligned with the PCB
solder all the other pins.
1 J101

vactrols:

Match the short leg of the vactrol with the squared solder pad on the PCB.
tip: it's easier to bend at 90° degree all the four legs before trying
to fit the vactrol in place.
9 U1, U2, U3, U4, U5, U6, U7, U8, U11
now let's begin starting from the bottom layer
(the side where TABØR is written in the upper right corner)
BC337
20k
EURORACK_HEADER
VTL5C1
