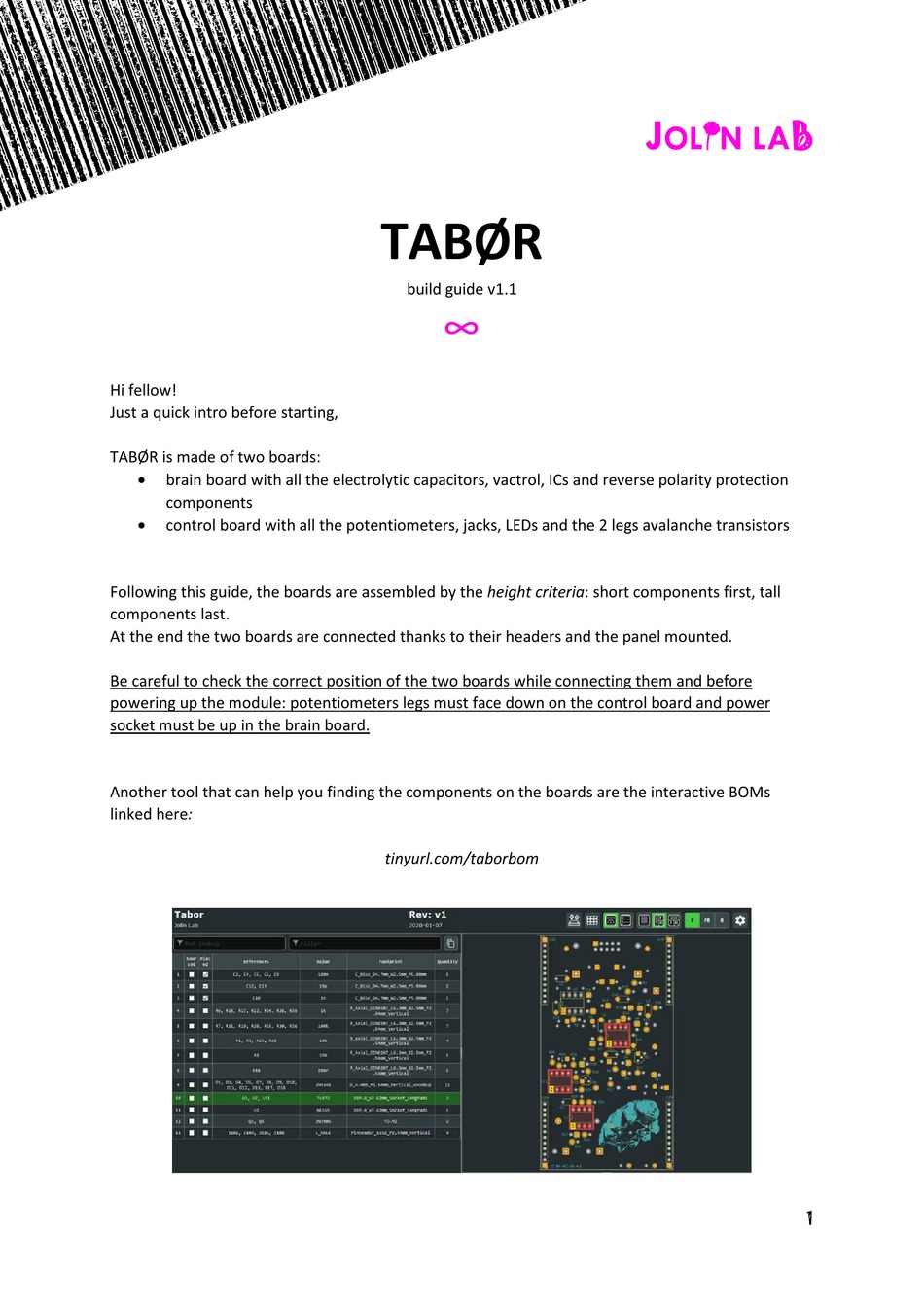

Hi fellow!
Just a quick intro before starting,
TABØR is made of two boards:
•
brain board with all the electrolytic capacitors, vactrol, ICs and reverse polarity protection
components
•
control board with all the potentiometers, jacks, LEDs and the 2 legs avalanche transistors
Following this guide, the boards are assembled by the height criteria: short components first, tall
components last.
At the end the two boards are connected thanks to their headers and the panel mounted.
Be careful to check the correct position of the two boards while connecting them and before
powering up the module: potentiometers legs must face down on the control board and power
socket must be up in the brain board.
Another tool that can help you finding the components on the boards are the interactive BOMs
linked here:
TABØR
build guide v1.1
∞
tinyurl.com/taborbom
J
OLJN LAB
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JOLIN LAB TABOR
Summary of Contents for JOLIN LAB TABOR
- Page 1 OLJN LAB TABØR build guide v1.1 ∞ Hi fellow! Just a quick intro before starting, TABØR is made of two boards: • brain board with all the electrolytic capacitors, vactrol, ICs and reverse polarity protection components • control board with all the potentiometers, jacks, LEDs and the 2 legs avalanche transistors Following this guide, the boards are assembled by the height criteria: short components first, tall components last.
- Page 2 Download them and open the .html file with a browser. You can use them to check where a component is located on the board. They work also offline. now let’s begin! brain board ceramic caps: Snap them in. Don’t mind their polarity. tip: since they are of the same height, you can wait and solder all the ceramic caps, diodes and resistors at the same time after you’ve placed all of them on this side of the board.
- Page 3 resistors: They are placed in vertical position. The body of the resistor goes on top of the white circle marked on the PCB. tip: they don’t have a polarity; this precaution is due to avoid them touching while soldered. R6, R15, R17, R22, R24, R26, R35 R7, R11, R19, R20, R25, R30, R36 100k R1, R3, R23, R28...
- Page 4 diodes: They are placed in vertical position. Mind their polarity, the horizontal line (white) on the PCB needs to match the horizontal line (white) on the component. D2, D6 1N5817 ferrite: Snap them in. Don’t mind their polarity. FB1, FB2 FERRITE eurorack power socket: Place the socket matching the drawing on the PCB.
- Page 5 control board resistors: They are placed in vertical position. The body of the resistor goes on top of the white circle marked on the PCB. tip: they don’t have a polarity; this precaution is due to avoid them touching while soldered. 16 R4, R5, R8, R9, R10, R12, R13, R14, R16, R21, R27, R29, R31, R33, R34, R37 transistors: Remove the middle leg of the transistors (pin 2: the base).
- Page 6 surface components: Wait to solder them: just place all of them in their right place and move to the next step. p2, p3, p4 50k_t18 50k_round 10k_t18 10k_round J2, J3, J4, J5, J6, J7, J8, J9, J10, J11, J12, J13 PJ398SM now the other side headers:...
- Page 7 tip: mind the polarity on the header socket on your case, remember that red line is -12v done! enjoy your new born TABØR find us: web ⇒ www.jolinlab.com e-mail ⇒ jolinlab@gmail.com Instagram ⇒ @jolinlab...
