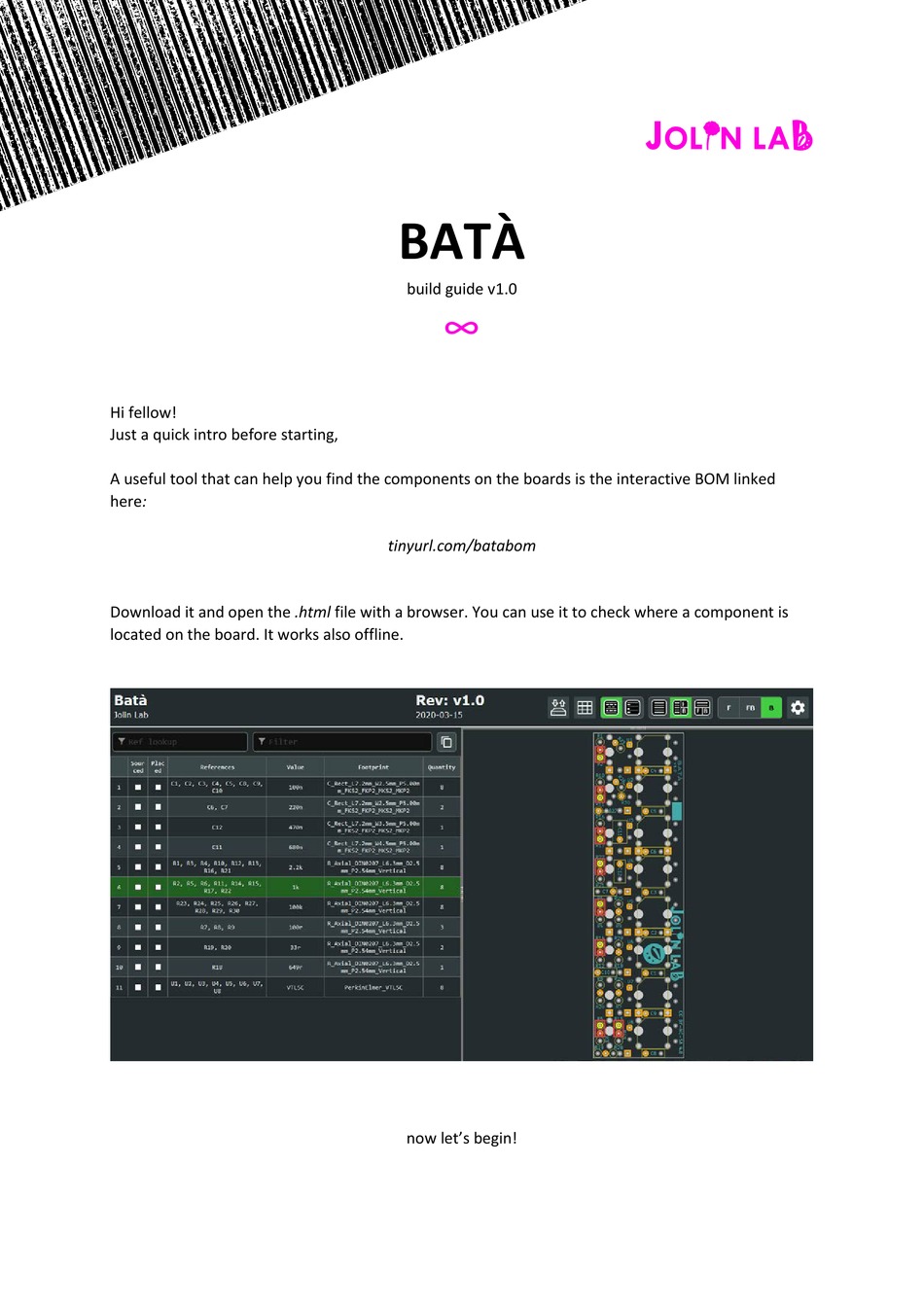

JOLIN LAB BATA Build Manual

OLJN LAB

BATÀ

build guide v1.0

∞

Hi fellow!

Just a quick intro before starting,

A useful tool that can help you find the components on the boards is the interactive BOM linked

here:

tinyurl.com/batabom

Download it and open the .html file with a browser. You can use it to check where a component is

located on the board. It works also offline.

now let's begin!

Table of Contents

Need help?

Do you have a question about the BATA and is the answer not in the manual?

Page 1 OLJN LAB BATÀ build guide v1.0 ∞ Hi fellow! Just a quick intro before starting, A useful tool that can help you find the components on the boards is the interactive BOM linked here: tinyurl.com/batabom Download it and open the .html file with a browser. You can use it to check where a component is located on the board.
Page 2 resistors: They are placed in vertical position. The body of the resistor goes on top of the white circle marked on the PCB. If two resistors are placed mirrored one in front of the other and both their legs don’t fit into the hole don’t worry: cut the bent leg of one of the two resistors and solder it from the top.
Page 3 film capacitors: Snap them in. Don’t mind their polarity. 8 C1, C2, C3, C4, C5, C8, C9, C10 100n 2 C6, C7 220n 1 C12 470n 1 C11 680n vactrols: Match the short leg of the vactrol with the squared solder pad on the PCB. tip: it’s easier to bend at 90°...
Page 4 At last put the panel on - check its direction - tighten the nuts and then solder all the jacks and LEDs -the closer to the panel, the more they will be evident on the panel’s hollow line. tip: we are soldering them now to ensure that all the jack sockets and LEDs are aligned with the panel check if everything is in place done! enjoy your new...
