BluDot Open Plan Assembly Note

Low bookcase with storage
Hide thumbs

Advertisement

Quick Links

Download this manual

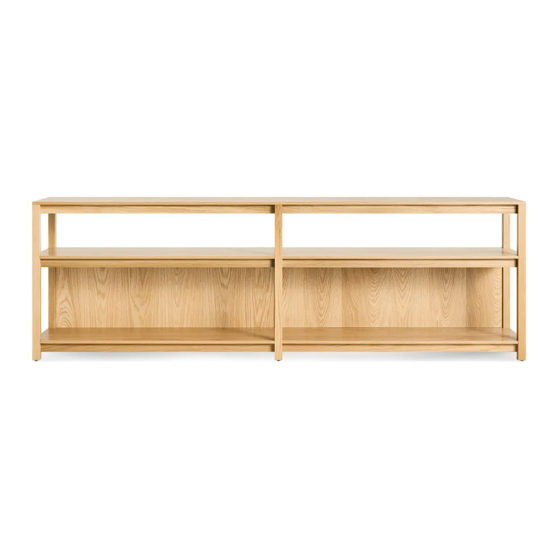

Open Plan Low Bookcase
With Storage
D E S I G N E D I N 2 0 2 0
A S S E M B LY N O T E S | R E V 0 2
N E E D A H A N D ?
Contact us at service@bludot.com or
844.425.8368 for assistance.
@ B L U D O T
We design all our pieces in our Minneapolis studio. Follow
along on Instagram for some sneak peeks into the process.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Open Plan and is the answer not in the manual?

Questions and answers

Related Manuals for BluDot Open Plan

Summary of Contents for BluDot Open Plan

  • Page 1 Open Plan Low Bookcase With Storage D E S I G N E D I N 2 0 2 0 A S S E M B LY N O T E S | R E V 0 2 N E E D A H A N D ? @ B L U D O T Contact us at service@bludot.com or...

  • Page 2: Parts & Hardware

    Parts & Hardware Parts & Hardware 8041 An�-�p Bracket Pt. 1217 Pt. 1218 Pt. 8041 8042 An�-�p Strap Pt. 8042 Pt. 8054 Pt. 1695 Pt. 1690 Pt. 8053 Pt. 9016 Door Hinge Partition Panel Door Panel 1 | 8 4 4 . 4 2 5 . 8 3 6 8 O P E N P L A N L O W B O O K C A S E W I T H S T O R A G E...
  • Page 3 Parts & Hardware Parts & Hardware Pin holes Center Front Leg Center Back Leg Back Panel Top Panel Center Panel Bottom Panel Left Side Frame Right Side Frame A S S E M B LY N O T E S S E R V I C E @ B L U D O T.
  • Page 4 Step 01 AT TA C H PA N E L S T O C E N T E R F R O N T L E G . Assemble this product on a soft clean surface with the help of another individual. Attach the top, center, and bottom panels to the center front leg using the hardware provided.
  • Page 5 Step 02 AT TA C H C E N T E R B A C K L E G . Attach center back leg using the hardware provided. P T. 9 016 x 1 PT. 1 69 5 x 3 A S S E M B LY N O T E S S E R V I C E @ B L U D O T.
  • Page 6 Step 03 A L I G N B A C K PA N E L . Place metal pins in the center back panel and align with back panel pieces as shown. PT. 80 53 x 4 5 | 8 4 4 . 4 2 5 . 8 3 6 8 O P E N P L A N L O W B O O K C A S E W I T H S T O R A G E...
  • Page 7 Step 04 AT TA C H S I D E F R A M E S . Align metal pins in the back panel and attach the side frames using the hardware provided. PT. 8 05 3 x 4 P T. 1690 x 8 P T.
  • Page 8 Step 05 S E C U R E S I D E F R A M E S . Carefully flip the bookcase to position it on its back. Secure side frames in place as shown using the hardware provided. P T.
  • Page 9 Step 06 AT TA C H PA R T I T I O N PA N E L . Insert partition panel inside the bookcase at an angle as shown. Attach the side frames using the hardware provided. Tighten bolts that were installed in previous steps.
  • Page 10 Step 07 I N S TA L L D O O R H I N G E S . Install hinges to the doors as shown using the hardware provided. PT. 1 21 7 x 16 Do or H inge x 8 9 | 8 4 4 .
  • Page 11 Step 08 I N S TA L L D O O R S . Install doors as shown using the hardware provided. PT. 1 21 7 x 32 A S S E M B LY N O T E S S E R V I C E @ B L U D O T.
  • Page 12 Step 09 AT TA C H A N T I -T I P B R A C K E T T O B O O K C A S E . Brackets must be installed to the back rail of the top panel.
  • Page 13 Step 10 AT TA C H A N T I -T I P B R A C K E T T O W A L L . Wall anchors and fasteners are included for installation into drywall. Please consult your local hardware professional to determine the hardware best suited for your wall type.
  • Page 14 Step 11 S E C U R E B O O K C A S E . Install and tighten wall straps prior to using the product. Adjust glides at bottom of legs to ensure they are level prior to use. 8042 An�-�p Strap PT.
  • Page 15 Step 12 D O O R A D J U S T M E N T. Hinges work in pairs. If you adjust one hinge, chances are you will have to adjust all the hinges. If door needs adjustment from TOP TO BOTTOM, Use Screw #3.

  • Page 16: Additional Information

    Additional Information C LEAN Clean with a slightly damp, soft cloth. To remove dirt and fingerprints, use quality cleaners formulated for wood furniture. Wipe completely dry with a soft cloth in the direction of the wood grain. B L U D O T D E S I G N & M A N U F A C T U R I N G , I N C . D E S I G N E D I N M I N N E A P O L I S , M N...
