4. Mounting the Sensor

The sensor can be mounted on the following types of surfaces:
•
Wall, ceiling, or electrical box (NEMA enclosure)
•
Tabletop

Wall, Ceiling, or Electrical Box Mounting

Use the included mounting bracket to install the sensor on a wall, ceiling, or electrical box.
To wall-mount the sensor:
1
Route Ethernet cable through the opening in the cradle.
2
Screw the mounting bracket to a wall, ceiling, or electrical box (NEMA enclosure):
•
If mounting to a solid surface wall or ceiling, use the two sheet metal screws.
•
If mounting to drywall, use the two sheet metal screws and two wall anchors.
•
If mounting to an electrical box (NEMA enclosure), use the two threaded screws.

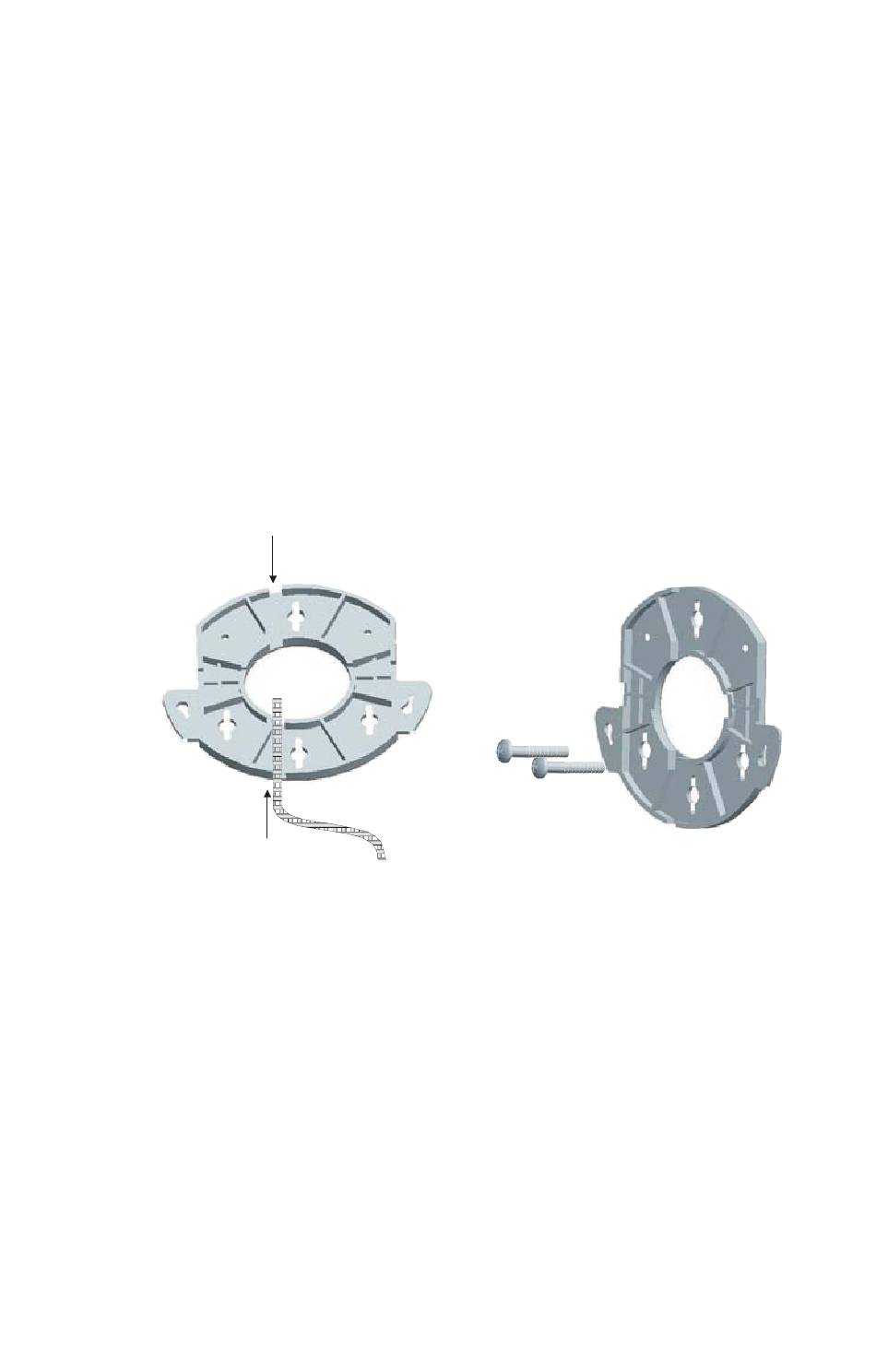

The figures below show a cable being routed through the large opening in the cradle and
then the cradle being mounted to a wall.
3
Connect the Ethernet cable (for power and network connection) to the port on the rear of
the sensor.
4
Twist the sensor onto the mounting bracket.
Tabletop Mounting
To install the sensor on a flat surface such as a table or desktop:
1
Remove the backing from the four rubber feet and attach them on the bottom of the sensor.
2
Place the sensor on the table.
3
Connect the Ethernet cable (for power and network connection) to the port on the rear of
the sensor.
Routing a cable Wall-mounting the cradle
