Summary of Contents for Xycom ST1210

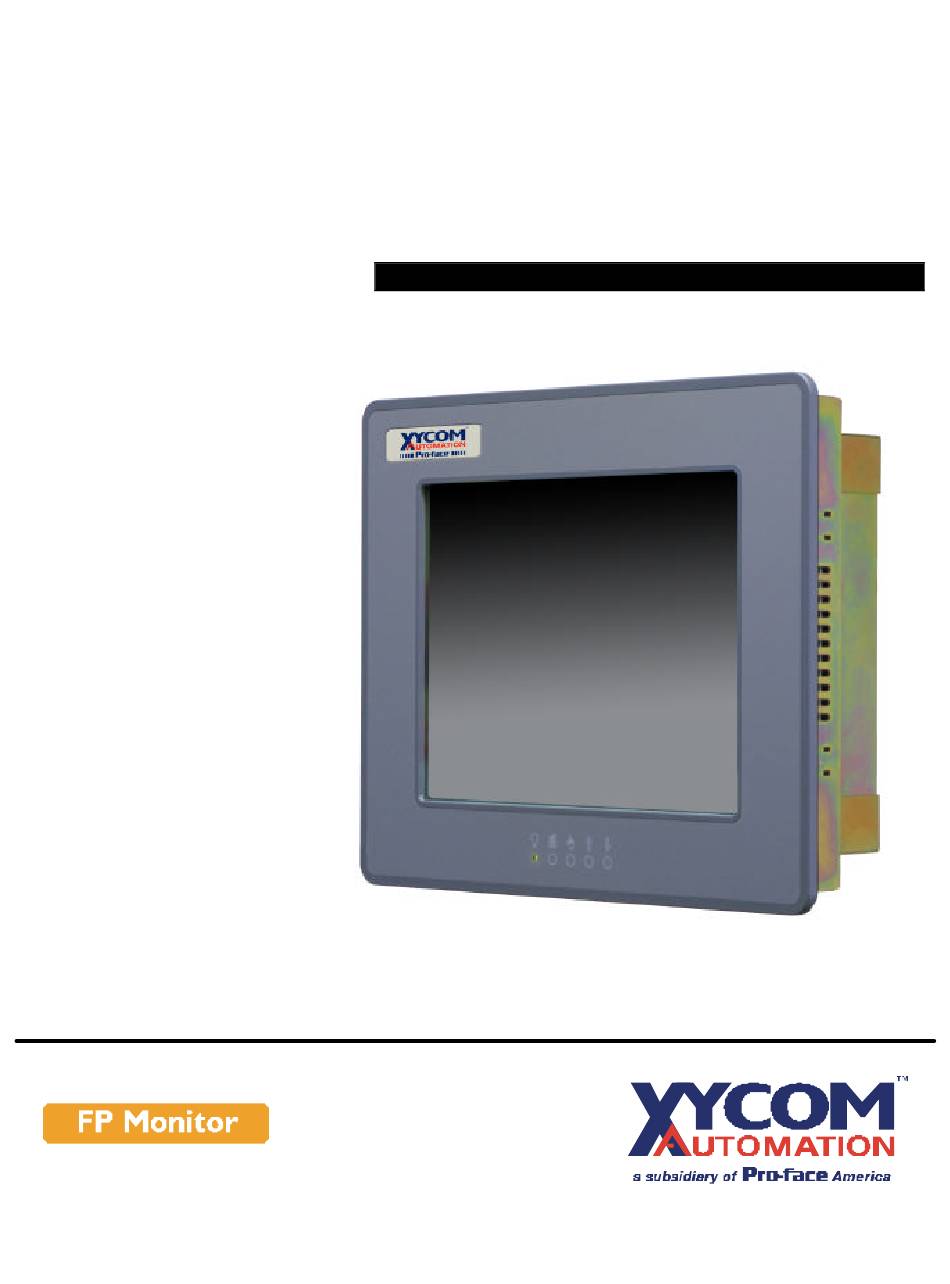

- Page 1 ST1210 FLAT PANEL INDUSTRIAL MONITOR FLAT PANEL INDUSTRIA Hardware Guide...
- Page 2 Xycom Automation Part Number 141284(C) Trademark Information Xycom Automation is a trademark of Xycom Automation, Inc. Brand or product names may be registered trademarks of their respective owners. Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
-
Page 3: Table Of Contents
Table of Contents 1. Product Overview..…..................1-1 Product Features…………………………………………….……………………………………1-1 Standard ST1210 Features…………………………………………………………………….1-1 Parts List…………………………………………………….……………………………………1-1 Standard ST1210 Parts List…………………………………………………………………...1-1 Manual Overview…………………………………………….…………………………………..1-2 Text Conventions Used in this Manual …………………….……………………………………1-2 Product Dimensions ……………………………………….…………………………………….1-3 Front Panel Controls …………………………………………….……………………………1-3 Product Specifications and Ratings……..………………….……………………………………1-4 Environmental……...…….……………………………………………………………………1-4 Electrical ……………………………………………………………………………………...1-4 Front Panel/Enclosure ..…….…………………………….…………………………………..1-4... -
Page 4: Product Overview
Units ship with all necessary cables and software Parts List When you remove the ST1210 from its shipping carton, verify that you have the parts listed below. Save the box and inner wrapping in case you need to reship the unit. -
Page 5: Manual Overview
Manual Overview The manual is divided in the following chapters: • Chapter 1 – Product Overview • Chapter 2 – Installation • Chapter 3 – Monitor Settings • Chapter 4 – Hardware Text Conventions Used in this Manual Throughout this manual, certain terms are formatted in ways that indicate what type of object is being described. -
Page 6: Product Dimensions
Product Dimensions 10.50[266.70] 12.60[320.04] 3.00[76.20] in.[mm] Front Panel Controls The front panel controls, from left to right are Menu, Select, Increment, Decrement. Their use is detailed in Chapter 3— Monitor Settings. -
Page 7: Product Specifications And Ratings
Product Specifications and Ratings Environmental Operating Nonoperating Thermal 0°C to 50°C (32°F to 122°F) -20°C to 60°C (32°F to 122°F) Humidity 20% to 80% RH, noncondensing 20% to 80% RH, noncondensing 15 g peak acceleration, 30 g peak acceleration, Shock 11 msec duration 11 msec duration Vibration,... -
Page 8: Installation
2. Installation Environmental Considerations The rugged design of the ST1210 allows it to be installed in most industrial environments. Refer to the electrical and environmental specifications and tolerances (pg. 1-4) for more detailed information. System Power It is a good practice to use isolation transformers on the incoming AC power line to the system. -
Page 9: Electrical Noise
Electrical Noise Electrical noise is seldom responsible for damaging components, unless extremely high energy or high voltage levels are present. However, noise can cause temporary malfunctions that can result in hazardous machine operation in certain applications. Noise may be present only at certain times, may appear at widely spread intervals, or in some cases may exist continuously. -
Page 10: Panel Installation
sure that outside air is not brought inside the enclosure unless a fabric or other reliable filter is used. This filtration prevents conductive particles or other harmful contaminants from entering the enclosure. • Do not select a location near equipment that generates excessive electromagnetic interference (EMI) or radio frequency interface (RFI) (equipment such as high-power welding machines, induction heating equipment, and large motor starters). -
Page 11: Monitor Settings
Not all video controllers produce exactly the same video output levels or the same timing. The ST1210 uses onscreen programming to make setup and adjustment easy. The menus are selected and the menu items are adjusted using the buttons located on the monitor front panel. -
Page 12: Main Osd Menu
Select: This button selects the highlighted menu item. This button will perform the menu command labeled number two. Increment and Decrement: These buttons are used to scroll through menu items or to adjust settings. Main OSD menu This menu is opened with the Menu button. The following icons are displayed with their labels appearing in the top blue bar of the menu screen. -
Page 13: Position Submenu
Position Submenu Menu Option Description Image Horizontal Position Move the image position horizontally: Press Increment or Decrement to adjust; range is 6 to 301. Image Vertical Position Move the image position vertically: Press Increment or Decrement to adjust; range is 1 to 36. Auto Center Set the screen to center: Press Increment or Decrement to select Yes or No. -
Page 14: Hardware
After 50,000 hours of use, the two lamps used for LCD back lighting may become dim or burn out. You may return the monitor to Xycom for lamp replacement or you can order new lamps and follow the procedure below to install them. You can perform the lamp replacement procedure without removing the monitor from the NEMA enclosure where it is mounted, but you should do this only in a clean environment. - Page 15 Carefully slide the new lamps fully into place noting the top lamp has a small triangle molded in the end where the wires protrude. Similar triangles a stamped in the LCD sheet metal near the top hole. Reconnect the lamp wires to the inverter. These are keyed connectors permitting insertion in only one orientation.
-
Page 16: Appendix A: Reaching Technical Support
5. Details of attempts made to rectify the problem(s) and results. 6. The log number assigned from Xycom Automation Technical Support if this is an ongoing problem. 7. The name of the Technical Support Engineer with whom you last spoke, if known. - Page 17 141284(C) Xycom Automation, Inc. 734-429-4971 • Fax: 734-429-1010 750 North Maple Drive http://www.xycom.com Saline, MI 48176...
