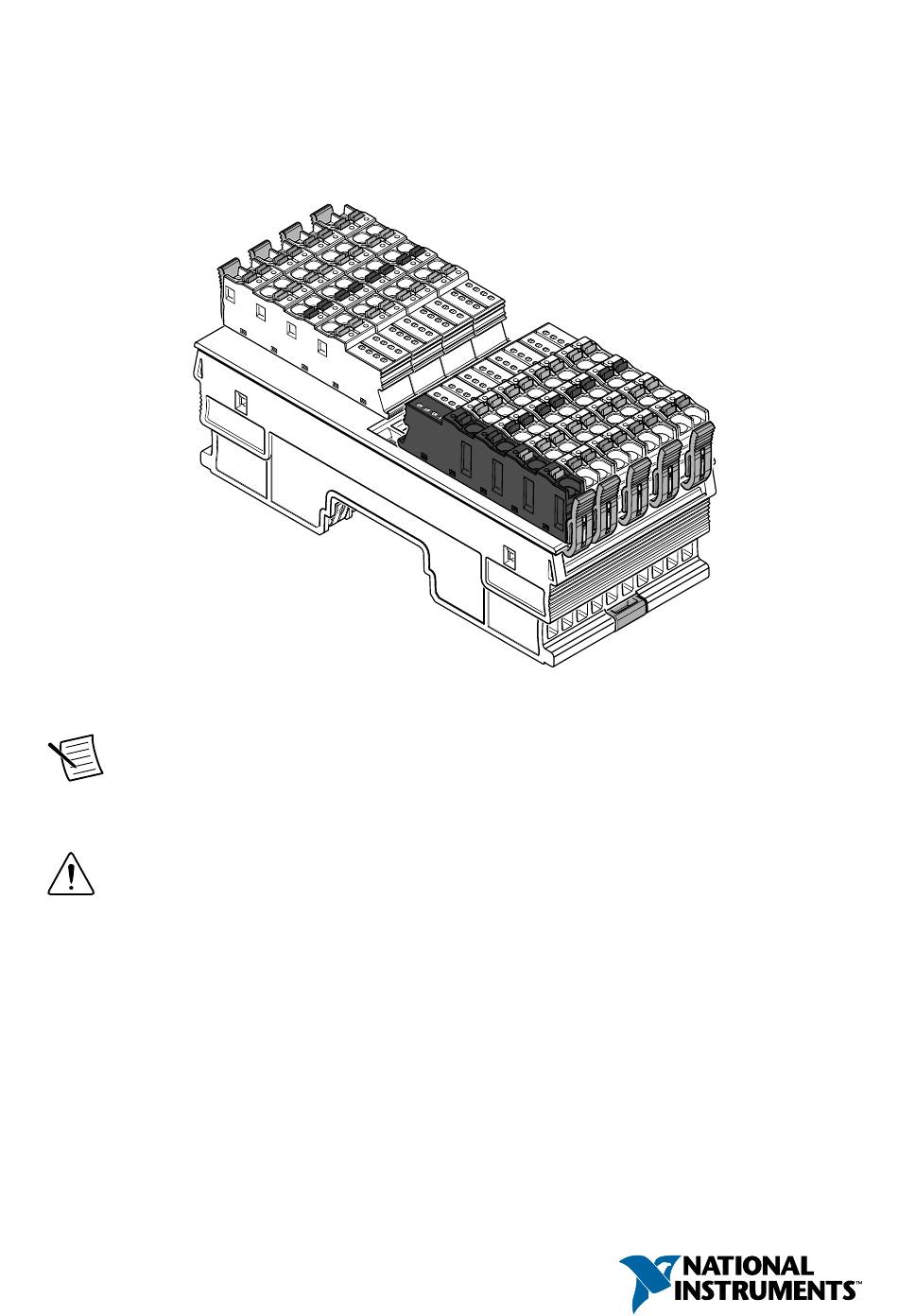

GETTING STARTED GUIDE
NI REM-11152
Digital Input Module for Remote I/O
This document explains how to connect to the REM-11152.
Note
The guidelines in this document are specific to the REM-11152. The other
components in the system might not meet the same safety ratings. Refer to the
documentation for each component in the system to determine the safety and EMC
ratings for the entire system.
Caution
document. Product misuse can result in a hazard. You can compromise the safety
protection built into the product if the product is damaged in any way. If the product
is damaged, return it to NI for repair.
Do not operate the REM-11152 in a manner not specified in this

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REM-11152 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for National Instruments REM-11152

  • Page 1 This document explains how to connect to the REM-11152. Note The guidelines in this document are specific to the REM-11152. The other components in the system might not meet the same safety ratings. Refer to the documentation for each component in the system to determine the safety and EMC ratings for the entire system.
  • Page 2: Isolation Withstand Voltages

    Furthermore, any changes or modifications to the product not expressly approved by National Instruments could void your authority to operate it under your local regulatory rules. Preparing the Environment Ensure that the environment in which you are using the REM-11152 meets the following specifications. Operating temperature -25 °C to 60 °C...
  • Page 3: Verifying The Kit Contents

    Verifying the Kit Contents Verify that the following items are included in the REM-11152 kit. Figure 1. REM-11152 Kit Contents 1. NI REM-11152 3. Supply voltage connector 2. Bus connector 4. Spring-terminal block (x8) Unpacking the Kit Caution To prevent electrostatic discharge (ESD) from damaging the device, ground yourself using a grounding strap or by holding a grounded object, such as your computer chassis.
  • Page 4: Installing Bus Connectors

    White Bus coupler, power module Installing Bus Connectors What to Use • Bus connector • DIN rail What to Do Complete the following steps to install bus connectors on the DIN rail. 4 | ni.com | REM-11152 Getting Started Guide...
  • Page 5: Installing The Module

    Repeat Steps 2 and 3 for additional bus connectors. Installing the Module What to Use • REM-11152 • Mounted bus connector What to Do Complete the following steps to install the REM-11152 on the DIN rail. REM-11152 Getting Started Guide | © National Instruments | 5...
  • Page 6: Installing Spring-Terminal Blocks

    Note Verify that the bus connector socket aligns with the socket on the underside of the module. Press the REM-11152 directly onto the bus connector and DIN rail until it clicks into place. Caution Tilting the module when mounting it on the DIN rail will damage the contacts.
  • Page 7 Digital inputs 0 to 7 40 to 47 Orange DI8...DI15 Digital inputs 8 to 15 10 to 17, 50 to 57 Red 24 VDC (U ) Sensor supply voltage output REM-11152 Getting Started Guide | © National Instruments | 7...
  • Page 8 The REM-11152 is ready for operation. Green Flashing Data is invalid or unavailable. The REM-11152 cannot communicate with Green/Yellow Flashing the connected devices. The REM-11152 did not detect a valid cycle Solid after power-on. Yellow The REM-11152 is not part of the Flashing configuration.
  • Page 9 24 VDC – REM-11152 • The input signals connect to the DI terminals. • GND provides a path for the return current to flow. • and FE are optional, device-dependent connections. REM-11152 Getting Started Guide | © National Instruments | 9...
  • Page 10: Connection Guidelines

    Connection Guidelines • Make sure that devices you connect to the REM-11152 are compatible with the module specifications. • Push the wire into the terminal when using a solid wire or a stranded wire with a ferrule.
  • Page 11: Removing Bus Connectors

    If you want to remove a bus connector in the middle of the system, you must remove any modules or bus connectors following the desired connector or slide them along the DIN rail at least 15.0 mm (0.60 in.). REM-11152 Getting Started Guide | © National Instruments | 11...
  • Page 12: Where To Go Next

    NI corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. NI also has offices located around the world. For telephone support in the United States, create your service request at ni.com/support or dial 1 866 ASK MYNI (275 6964). For 12 | ni.com | REM-11152 Getting Started Guide...
  • Page 13 United States, visit the Worldwide Offices section of ni.com/ niglobal to access the branch office websites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. REM-11152 Getting Started Guide | © National Instruments | 13...
  • Page 14 CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S. Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015. © 2016 National Instruments. All rights reserved. 376551A-01 Oct16...
