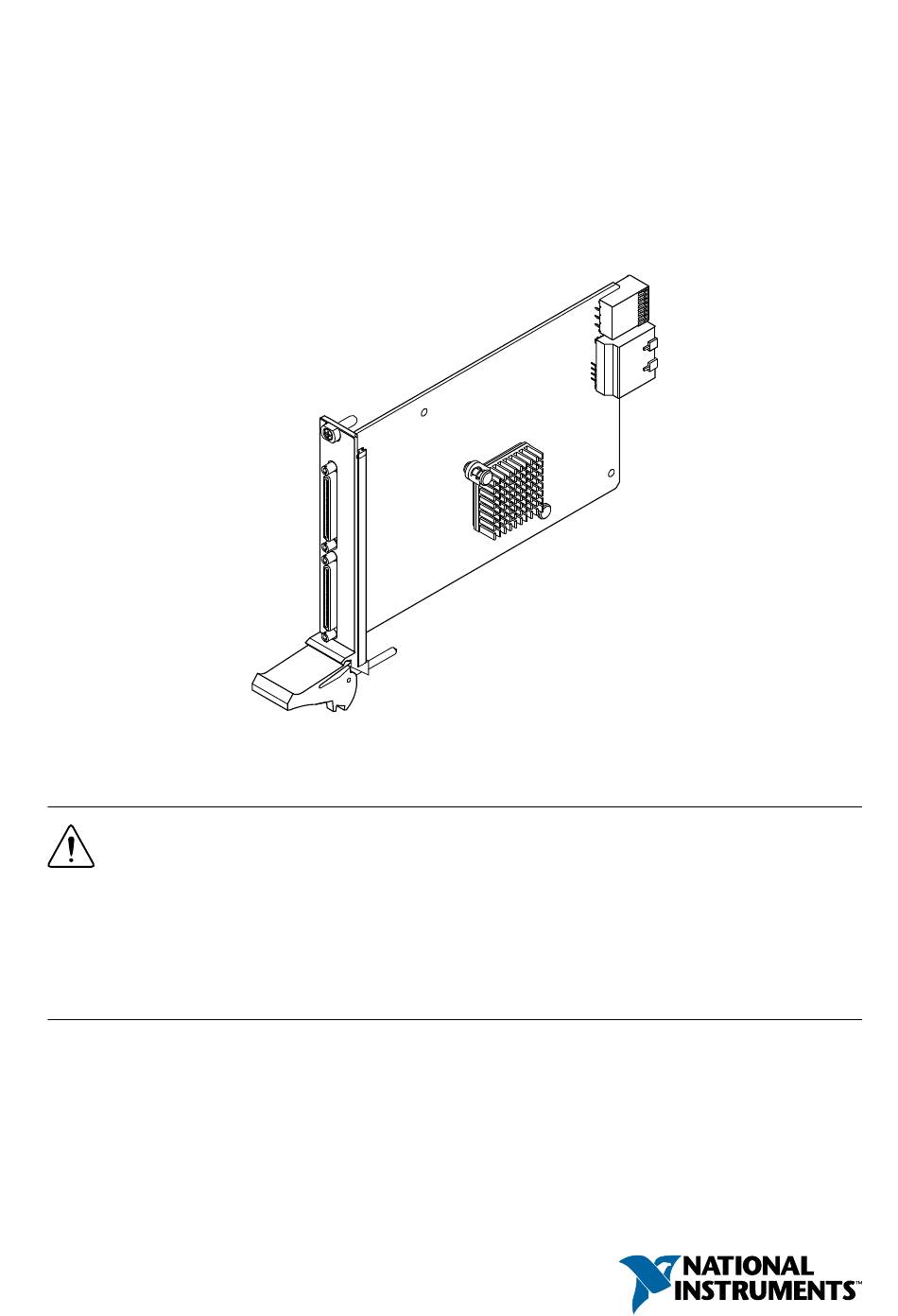

GETTING STARTED GUIDE
NI PXIe-7857R
R Series Reconfigurable I/O Module (AI, AO, DIO) for PXI Express,
8 AI, 8 AO, 48 DIO, 1 MS/s AI, 512 MB DRAM, Kintex-7 160T FPGA
This document describes how to begin using the NI PXIe-7857R.
Safety Guidelines
Caution
document. Product misuse can result in a hazard. You can compromise the safety
protection built into the product if the product is damaged in any way. If the product
is damaged, return it to NI for repair.
Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for
electromagnetic compatibility (EMC) stated in the product specifications. These requirements
and limits provide reasonable protection against harmful interference when the product is
operated in the intended operational electromagnetic environment.
Do not operate the NI PXIe-7857R in a manner not specified in this
