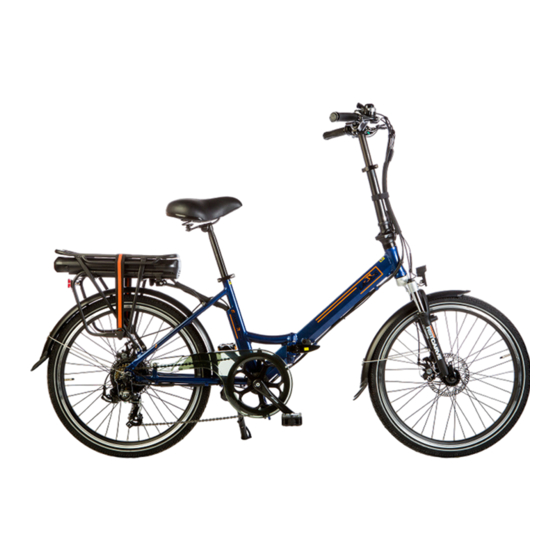

Lacros SCAMPER S200 XL Original Manual

Electric folding bike
Hide thumbs Also See for SCAMPER S200 XL:
Table of Contents

Advertisement

Quick Links

Download this manual
CE ORIGINAL MANUAL
LACROS SCAMPER S200(XL)/S400(XL)
VERSION CE 1.4 EN
LACROS SCAMPER S200
/S400
(XL)
(XL)
ELECTRIC FOLDING BIKE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCAMPER S200 XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lacros SCAMPER S200 XL

Summary of Contents for Lacros SCAMPER S200 XL

  • Page 1 CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN LACROS SCAMPER S200 /S400 (XL) (XL) ELECTRIC FOLDING BIKE...

  • Page 2: For Your Safety

    1. The LACROS Electric bike is equipped with an electromotor. It is very important that you are familiar with the bike as soon as possible. We advise you to choose the first "practice rides" for easy roads with little traffic and a smooth road surface.

  • Page 3: Quality Standard

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN Quality Standard Your product is an electric folding bike. The bicycle can be folded at 2 locations, on the handlebar stem and halfway at the frame. The bike is equipped with a pedal support system which is powered by an external battery.

  • Page 4: Table Of Contents

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN Turn on the display ............9 Index Switch bicycle LED lights on and off ....... 9 Thumb lever Walk Assist ..........9 For your safety ............... 2 Switch between the 9 levels of motor support ....9 Quality Standard ............

  • Page 5: Unfolding The Bicycle

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN 1. Unfolding the bicycle Magnetic lock Push the wheels apart to remove them from their magnetic lock. A = Metal locking plate B = Magnet C = Direction in which you can lock...

  • Page 6: Folding The Bicycle

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN 2. Folding the bicycle Folding the pedals Fold down the bicycle's stand and fold the pedals in by pushing the entire pedal towards the bike and then folding it up or down.

  • Page 7: How To Use The Bicycle

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN 3. How to use the bicycle Switch on the battery and read the battery status The battery is located on the luggage rack with the Scamper. Switch on the electrical system with the button on the left side of the battery (B).

  • Page 8: Switch Between The 9 Levels Of Motor Support

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN Switch between the 9 levels of motor support The electrical motor support has 9 levels. The active setting is displayed on the top left of the display. You can increase or decrease the support by using the (+) and (-) buttons.

  • Page 9: Bigstone-Display

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN ▪ Bigstone-display Turn on the display Press the ”M” button (1) on the left of the display to activate the bicycle's electrical circuit. (Note that the battery is already turned on) A menu will now appear on the display, the electrical...

  • Page 10: Usb-Input Display

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN USB-input display Below the display you will find a USB-port (A) where you can, for example, charge your telephone or navigation while cycling. This charging only works when the display is on.

  • Page 11: Battery And Charge

    Charge recommendation • Always recharge the battery with the Lacros charger supplied with the bike. Do not use any other charger. • The first 2 recharges of a new bicycle must be more than 60%. To realize this, wait the first 2 times before recharging, until the battery indicator on the display has fallen below 40%.

  • Page 12: How To Charge The Battery

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN How to charge the battery The battery has one charging point (A) on the right side of the battery. It is recommended to first connect the charger to the battery and then plug the 220V plug into the socket.

  • Page 13: Safety Rules

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN 6. Safety rules • Read carefully the manual supplied with your bicycle before using it for the first time. • Strictly adhere to the traffic rules. • Never disassemble the bicycle yourself. If replacement of a part is necessary, contact your dealer or Shinga B.V.

  • Page 14: Legal Requirements

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN 7. Legal requirements According to European legislation, the vehicle described is a bicycle because the vehicle complies with the following rules: • From 6 Km/h, the support is only active when the user is pedaling.

  • Page 15: Technical Specifications

    CE ORIGINAL MANUAL LACROS SCAMPER S200(XL)/S400(XL) VERSION CE 1.4 EN 8. Technical specifications • Dimensions expanded (L x W x H): 160x60x113cm (20”) 173x60x128cm (24”) • Dimensions folded (L x W x H): 90x40x72cm (20”) 90x40x80cm (24”) • Frame: Aluminium •...

  • Page 16: Ec Declaration

    Product: Electric folding bike Model: JSL 039Z Naam: Lacros Scamper S200 (XL) /S400 (XL) THIS E-BIKE IS MANUFACTURED ACCORDING AND IN APPLIANCE WITH EUROPEAN UNION GUIDELINES AND REGULATIONS CONCERNING ELECTRIC BIKES WITH A MAXIMUM SPEED OF 25 KM/HOUR AND A MAXIMUM MOTOR OUTPUT OF 250W THE FOLLOWING “EN”...

This manual is also suitable for:

Scamper s400 xl
