Seismic Safety

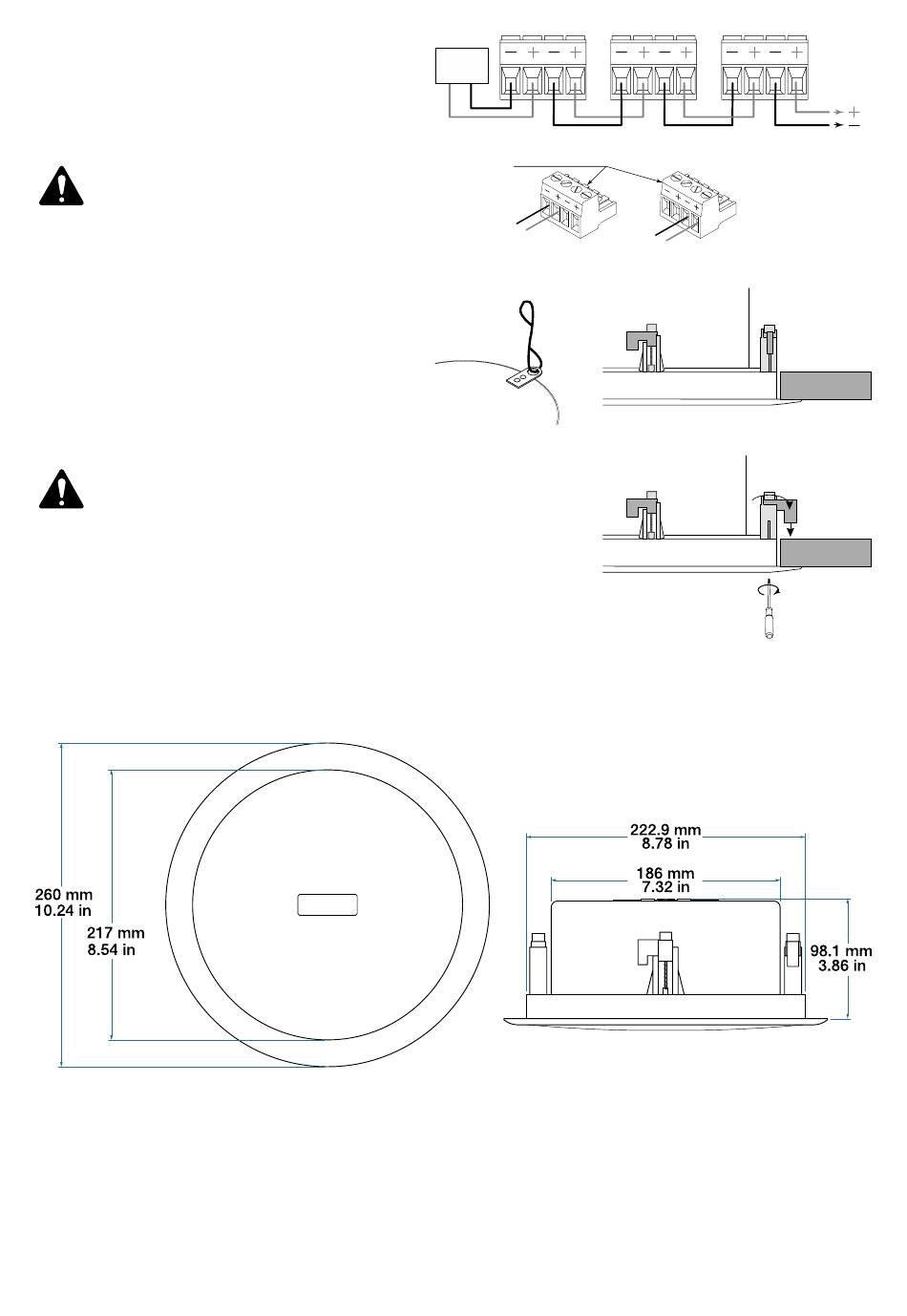

Refer to Figure 4.
1. Attach an appropriate safety line from the safety tab on the back
of the connector cover to an appropriate part of the structure.
WARNING!: Be sure to observe local building
codes for seismic requirements.
Mount the Loudspeaker
Refer to Figure 5.
1. Make sure all of the dog-ears are up against the side of the metal
loudspeaker housing.
2. Slide the loudspeaker housing up through the hole into the
ceiling.
3. Use a Phillips screwdriver to tighten each of the four dog-ear
screws.
CAUTION!: Tighten the dog-ear screws only until they are snug and support the
loudspeaker securely. Do not overtighten!
4. Use a flat-tip screwdriver to set the transformer tap according to the design requirements.
5. Install the loudspeaker grille.
Amp
Parallel Wiring Diagram
1
From
source
— Figure 4 —–
3
To additional
loudspeakers
— Figure 3 —–
1
Dog-ears against loudspeaker
2
Turn the screw clockwise to engage
the dog-ear with the ceiling.
— Figure 5 —–
