CP8 – 90° 1000 W active 8" (200 mm) 2-way loudspeaker system
CP12 – 75° 1000 W active 12" (300 mm) 2-way loudspeaker system
TD-001571-01-A
*TD-001571-01*
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP8 and is the answer not in the manual?

Questions and answers

Related Manuals for QSC CP8

Summary of Contents for QSC CP8

  • Page 1: User Manual

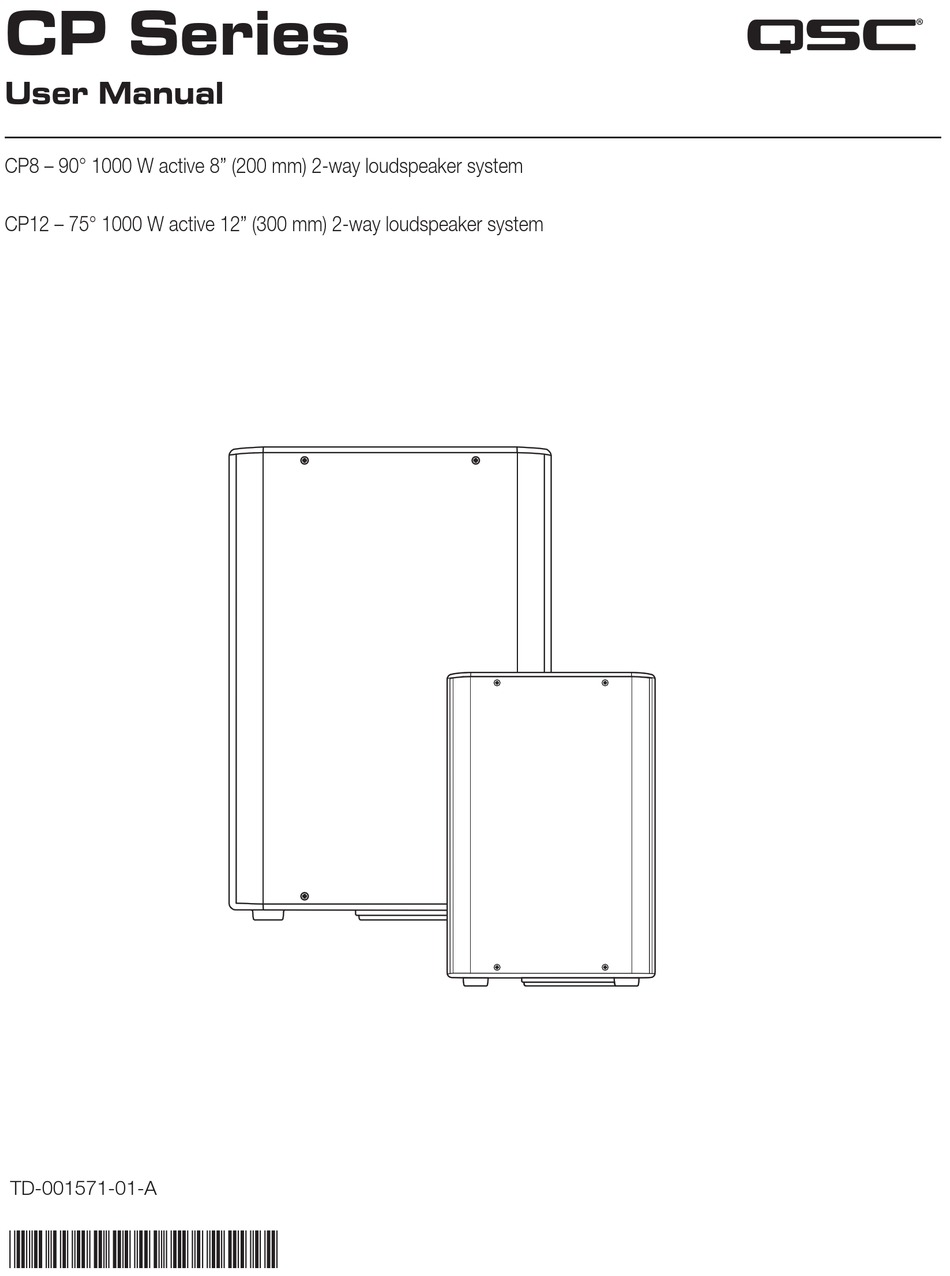

    CP Series ® User Manual CP8 – 90° 1000 W active 8” (200 mm) 2-way loudspeaker system CP12 – 75° 1000 W active 12” (300 mm) 2-way loudspeaker system TD-001571-01-A *TD-001571-01*...

  • Page 2: Explanation Of Symbols

    EXPLANATION OF SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty.

  • Page 3: Warranty

    QSC authorized service station or an authorized QSC International Distributor. QSC is not responsible for any injury, harm or related damages arising from any failure of the customer, owner or user of the apparatus to facilitate those repairs.

  • Page 4: What's In The Box

    These products are in compliance with European Directive 2011/65/EU – Restriction of Hazardous Substances (RoHS). These products are in compliance with “China RoHS” directives per GB/T26572. The following table is provided for product use in China and its territories: These products CP12, CP8 这些产品 CP12, CP8 有害物质 (Hazardous Substances) 部件名称...

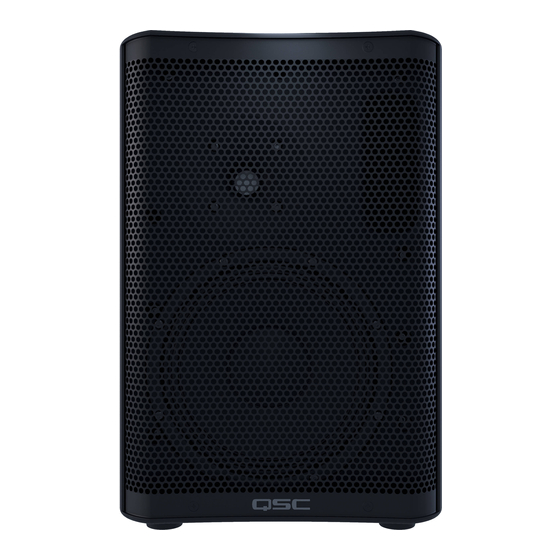

  • Page 5 Features 1. Polypropylene enclosure 2. Steel grille 3. Cast aluminum handle 4. Power module 5. M8 yoke-attachment points 6. Vertical pole socket 7. Slip-resistant feet for floor monitor applications 8. Angled back for use as a stage monitor — Figure 1 — CP12 1.

  • Page 6: Installation

    In addition, the CP Series have yoke accessories for each model that mount to the top and bottom. These yokes allow for rigid mounting to structures and rotation of the loudspeaker system. (model numbers: CP8 YOKE and CP12 YOKE ) For portable installations, you can use the yoke knob to quickly and easily mount the loudspeakers on the yoke, or you can use the yoke mounting bolt for more permanent installations.
  • Page 7 AC power cord to the AC source. Connect the AC Power cord to the facility’s AC outlet. If the QSC-supplied cord is lost or damaged, a standard 18-gauge IEC power cord may be used. Available from QSC. The CP Series loudspeakers are equipped with a universal power supply that can use input AC power voltages ranging from 100 – 240 VAC at 50 –...
  • Page 8 AC outlet. Verify the AC outlet is functioning properly. NOTE: If the AC mains cord is usable and the AC mains outlet is operating properly, but the unit fails to operate, the loudspeaker may require servicing. Contact QSC’s Technical Services department. System Power Sequencing Proper power turn on/turn off sequencing can help to prevent unexpected sounds from being produced by the system (pops, clicks, thumps).
  • Page 9 Inputs The CP Series amplifier has three separate inputs; two combination XLR / 1/4” Phone Jack (Inputs A and B) and one 1/8” (3.5 mm) TRS jack (Input C). Refer to Figure 9 1. Nnput W SNN LED – When illuminated (green), it indicates a signal is present. If this LED is not illuminated, the input signal is missing or too low to detect.
  • Page 10 Balanced Inputs Connect the XLR plug as shown in Figure 10. Shield (ground) Positive — Figure 10 — Negative Connect the TRS plug as shown in Figure 11. Do not use a TS 1/4” jack for balanced — Figure 11 — input.
  • Page 11 • Dance Txt Sub - A voicing with low frequency enhancement and mid/high clarity more suitable for program material playback like pop or electronic music, with an 80 Hz high-pass filter for use with an external subwoofer, for example, the KS112. (When Mic Boost is selected, input B contour changes to “Speech” while input A remains as “Dance.”) •...

  • Page 12: Hookup Diagrams

    TouchMix 8 or 16 CP12 Main Right Power Phones Cue / Monitor Aux 3/4 ® Right Left CP8 Floor Monitor CP8 Floor Monitor KS212C or KS112 Subwoofer KS212C or KS112 Subwoofer PUSH PUSH PUSH PUSH — Figure 16 — TD-001571-01-A...
  • Page 13 Dimensions CP8 Loudspeaker 273 mm 256 mm (10.7 in) 10.1 in 273 mm (10.7 in) — Figure 17 — TD-001571-01-A...
  • Page 14 CP12 Loudspeaker 323 mm 350 mm 12.7 in 13.8 in 350 mm 13.8 in — Figure 18 — TD-001571-01-A...

  • Page 15: Specifications

    EMC, UL, CB, EAC EMC, UL, CB, EAC Optional Accessories: CP8 Tote, CP8 Outdoor Cover CP8 Yoke CP12 Tote, CP12 Outdoor Cover CP12 Yoke 1 Peak SPL is measured on-axis at 1 m, with dynamic pink noise NOTE: Specifications subject to change without notice.

  • Page 16: Mailing Address
