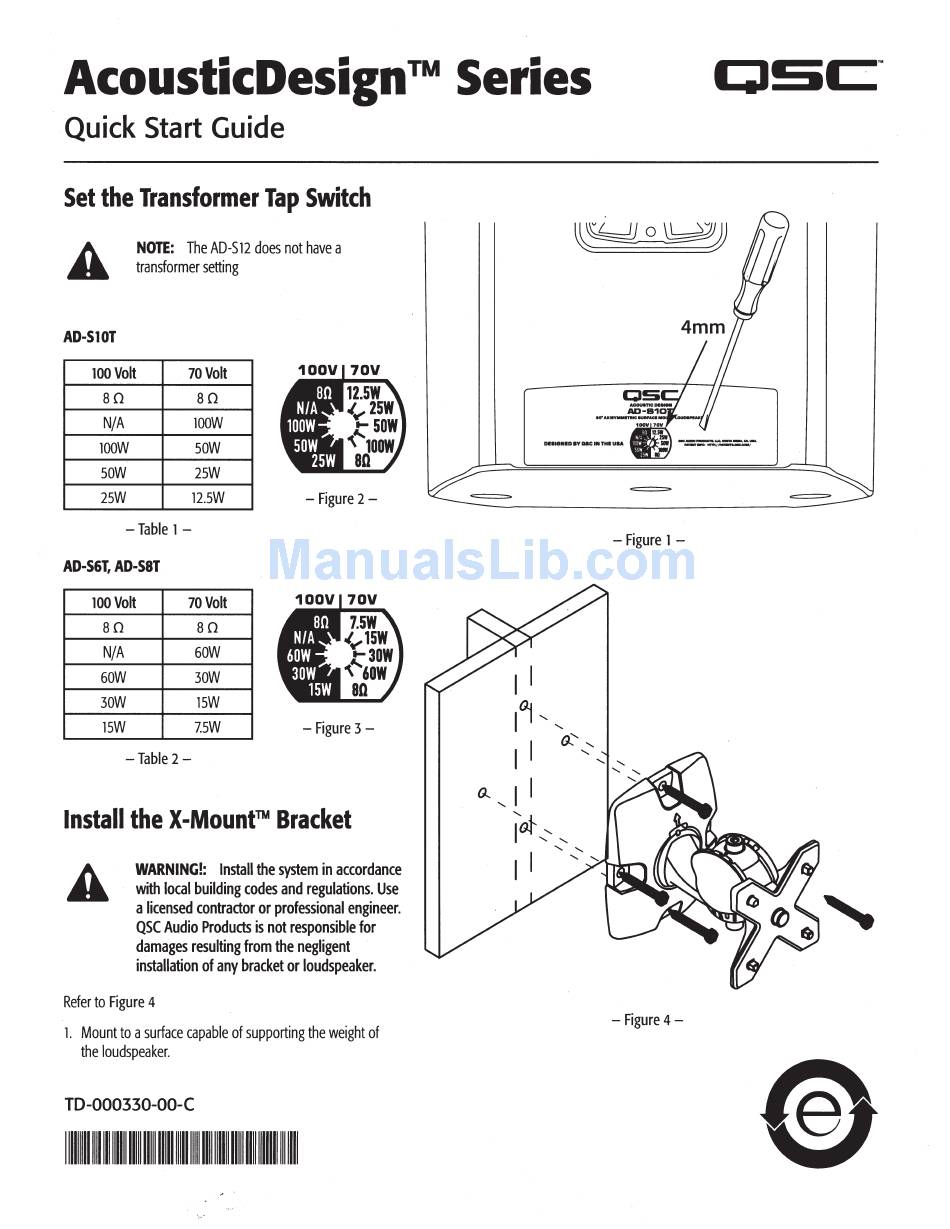

QSC AcousticDesign Series Quick Start Manual

AcousticDesign™ Series
Quick Start Guide
Set the Transformer Tap Switch
AD-SlOT
NOTE: The AD-S12 does not have a
transformer setting
lOOVolt 70 Volt
80 80
N/A lOOW
lOOW
sow
sow
2SW
2SW 12.5W -Figure 2-
-Table 1-
AD-S6T, AD-SST
lOOVolt 70Volt
80 80
N/A
60W
60W 30W
30W lSW
lSW 7.5W
-Figure 3-
-Table 2-
Install the X-Mount™ Bracket
WARNING!: Install the system in accordance
with local building codes and regulations. Use
a licensed contractor or professional engineer.
QSC Audio Products is not responsible for
damages resulting from the negligent
installation of any bracket or loudspeaker.
Refer to Figure 4
1.
Mount to a surface capable of supporting the weight of
the loudspeaker.
TD-000330-00-C
