- Page 1 Aurical® Otocam 300 Aurical Otocam 300 and the Video Otoscopy Module Reference Manual Doc. No. 7-50-1340-EN/08 Part No. 7-50-13400-EN...
- Page 2 Copyright notice © 2014, 2020 Natus Medical Denmark ApS. All rights reserved. ® Otometrics, the Otometrics Icon, Aurical, Madsen, HI-PRO 2, Oto- scan, ICS and HORTMANN are registered trademarks of Natus Medical Denmark ApS in the U.S.A. and/or other countries. Version release date...
-
Page 3: Table Of Contents
Table of Contents Introduction Intended use Aurical Otocam 300 and the Otosuite Video Otoscopy module Specula with cerumen management About this manual 2.3.1 Safety Typographical conventions 2.4.1 Navigating this manual Unpacking and Installing Unpacking Storing Assembling Aurical Otocam 300 Connecting Aurical Otocam 300... - Page 4 Manufacturer 7.2.1 Responsibility of the manufacturer Technical Specifications App. 0.1 Accessories Device Notes on EMC (Electromagnetic Compatibility) Index Aurical Otocam 300...
-
Page 5: Introduction
The Otosuite Video Otoscopy module With the Otosuite Video Otoscopy module you can capture and edit pictures from AURICAL Aurical Otocam 300. You can use the Otosuite Video Otoscopy module as a module under Noah version 3.6.1 or higher, or directly as a module in Otosuite. -
Page 6: Intended Use
This is your guide to using the Aurical Otocam 300 and the OtosuiteVideo Otoscopy module. We strongly recommend that you read through the screen descriptions in this manual before you use Aurical Otocam 300 and the Otosuite Video Otoscopy module for the first time. -
Page 7: Typographical Conventions
2 Intended use Safety information is stated where it is relevant, and general safety aspects are described in Aurical Otocam 300 video oto- scope standards and safety ► Typographical conventions The use of Warning, Caution and Note To draw your attention to information regarding safe and appropriate use of the device or software, the manual uses pre-... -
Page 8: Unpacking And Installing
1. Unpack Aurical Otocam 300 carefully. When you unpack Aurical Otocam 300 and accessories, it is a good idea to keep the packing material in which they were delivered.If you need to send Aurical Otocam 300 in for service, the original packing material will protect against damage during transport, etc. -
Page 9: Connecting Aurical Otocam 300
Aurical Otocam 300 is powered through the USB connection to the PC. If you are using Aurical Otocam 300 in connection with Aurical® Aud, you can alternatively connect Aurical Otocam 300 to one of the USB connections on the rear of Aurical® Aud. -

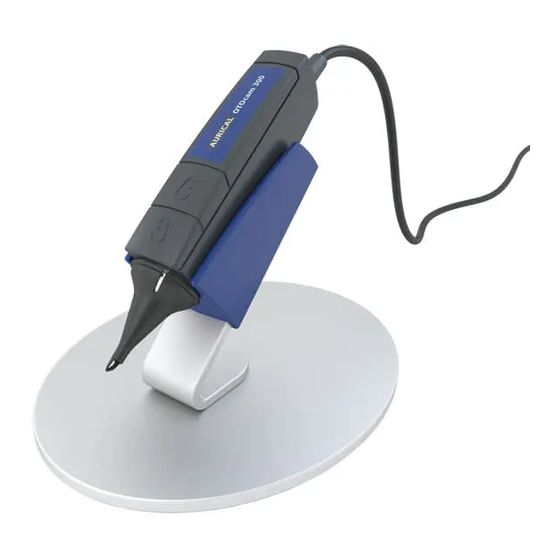

Page 10: The Aurical Otocam 300 Cradle
To completely switch off Otocam 300, disconnect the USB cable from the computer. The Aurical Otocam 300 cradle The cradle is a multi-functional holder for your Aurical Otocam 300 when it is not in use. It controls the light source and the camera tip heating. -
Page 11: Capturing And Editing Pictures
The specula are important elements in the hygienic aspect of video otoscopy. The specula must be disposed of after single use. It is easy to snap the speculum onto and off the metal tip of the Aurical Otocam 300. •... -
Page 12: Viewing Pictures From Old Otocam 300 Software
The main window Video Otoscopy screen is divided into three main sections. Before capturing pictures If Aurical Otocam 300 is connected, the Video Otoscopy module opens up showing a live image. A. Left Picture Panel B. Main work area C. -
Page 13: Capture Mode
4.6.1 Capture functions The Capture toolbar Delete All Pictures Deletes all pictures captured in this session. Capture Icon Aurical Otocam 300 Shortcut Left Ear Captures the picture as Captures the picture as Right Ear Aurical Otocam 300... -
Page 14: Capturing A Picture
Do not stare into the light beam, or point the light beam in the direction of other people’s eyes. It can • damage the eyes. 2. Press a speculum onto the tip of Aurical Otocam 300. 3. Insert the speculum on Aurical Otocam 300 in the ear of the client. Aurical Otocam 300... -
Page 15: Switching Modes With Aurical Otocam 300
4 Capturing and editing pictures 4. When a satisfactory image is obtained, press the Right Ear Left Ear button on Aurical Otocam 300, or click the Cap- ture Left Capture Right icon in the toolbar. 4.6.3 Switching modes with Aurical Otocam 300... -
Page 16: Right-Click Functions
Selects the picture for editing and displays it in the central work area. Copy to Clipboard Copies the selected picture to the clipboard. Markers, if there are any, will be included. You can paste the picture into other software programs. Aurical Otocam 300... -
Page 17: Adding Markers To A Picture
Removing markers You can remove individual markers or all markers in a picture. Removing individual markers You can remove individual markers in two ways: Remove Marker • Right-click on the marker in the central picture and select Aurical Otocam 300... -
Page 18: Adding Comments To A Picture
Deleting individual pictures • When you mouse over a picture in the right or left Picture Panel Delete icon is shown for that picture. Deleting all pictures Delete all pictures • Click the icon in the toolbar. Aurical Otocam 300... -
Page 19: Copying Pictures To The Clipboard
PC shortcut keys General shortcut keys are described in the Otosuite User Manual. Shortcut keys in Capture mode Shortcut Function Spacebar Freeze Toggles the function. Left Ear Captures the picture as Captures the picture as Right Ear Aurical Otocam 300... - Page 20 Captures the picture as Left Ear Captures the picture as Right Ear Escape (Esc) Closes Full Screen View (can also be done from right-click menu or by double-clicking on picure). Alt + Enter Full Screen View Closes Ctrl + Enter Aurical Otocam 300...
-
Page 21: Maintenance And Cleaning Of Aurical Otocam 300
Service and repair When you unpack Aurical Otocam 300 and accessories, it is a good idea to keep the packing material in which they were delivered.If you need to send Aurical Otocam 300 in for service, the original packing material will protect against damage during transport, etc. - Page 22 5 Maintenance and Cleaning of Aurical Otocam 300 housing of the device. Warning For the sake of safety and in order not to void the warranty, service and repair of electro-medical equip- • ment should be carried out only by the equipment manufacturer or by service personnel at authorized workshops. In case of any defects, make a detailed description of the defect(s) and contact your supplier.
-
Page 23: Troubleshooting
6 Troubleshooting Troubleshooting Problem Cause Solution The camera view area in the Video Otoscopy Direct 3D is not rendered correctly by Update the PC’s graphics module is black. the graphics card. card driver. Aurical Otocam 300... -
Page 24: Aurical Otocam 300 Video Otoscope Standards And Safety
7 Aurical Otocam 300 video otoscope standards and safety Aurical Otocam 300 video otoscope standards and safety This manual contains information and warnings, which must be followed to ensure the safe performance of the devices and software covered by this manual. Local government rules and regulations, if applicable, should also be followed at all times. - Page 25 7 Aurical Otocam 300 video otoscope standards and safety Do not reuse. Indicates a medical device that is intended for one use, or for use on a single patient during a single procedure. ISO 15223-1 Symbol 5.4.2 Device is cleared for the US market as requiring a prescriptionUSA Code of Federal Regulations.
-
Page 26: Warning Notes
Regulations 2014. These regulations state that electrical and electronic waste must be separately collected for the proper treatment and recovery to ensure that WEEE is reused or recycled safely. In line with that commitment Natus may pass along the obligation for take back and recycling to the end user, unless other arrangements have been made. Please contact us for details on the collection and recovery systems available to you in your region at www.natus.com... - Page 27 Aurical Otocam 300 be restricted. • RF emissions from Aurical Otocam 300 are very low and are not likely to cause any interference in nearby electronic equipment. However, local devices placed in close vicinity of Aurical Otocam 300 may experience a negative effect or loss of functionality..
- Page 28 7 Aurical Otocam 300 video otoscope standards and safety Manufacturer Natus Medical Denmark ApS Hoerskaetten 9, 2630 Taastrup Denmark +45 45 75 55 55 www.natus.com 7.2.1 Responsibility of the manufacturer The manufacturer is to be considered responsible for effects on safety, reliability, and performance of the equipment only •...
- Page 29 Optical data Minimum working distance 10 mm (0.4 inches) Preheater The preheater is active when the Aurical Otocam 300 is plugged into the PC and placed in its cradle. Preheater activation Activated by magnet in cradle. Preheater power Heats camera distal tip to approx +5°C (9°F) above ambient temperature after 5...
- Page 30 Air humidity 30% to 75%, non-condensing Air pressure 600 hPa to 1060 hPa Essential performance Aurical Otocam 300 has no essential performance. Standards Patient Safety IEC 60601-1:2005+AMD1:2012 and EN 60601-1:2006+A1:2013 CAN/CSA-C22.2 NO. 60601-1:14 Class II; applied part Type BF; IPX0...
- Page 31 Guidance and manufacturer's declaration - electromagnetic emissions for all equipment and systems Aurical Otocam 300 is intended for use in the electromagnetic environment specified below. The user of Aurical Otocam 300 should ensure that it is used in such an environment.
- Page 32 Guidance and manufacturer's declaration - electromagnetic immunity - for equipment and systems within Professional Healthcare use environment Aurical Otocam 300 is intended for use in the electromagnetic environment specified below. The user of Aurical Otocam 300 should ensure that it is used in such an environment.
- Page 33 Guidance and manufacturer's declaration - electromagnetic immunity for all equipment and systems Aurical Otocam 300 is intended for use in the electromagnetic environment specified below. The user of Aurical Otocam 300 should ensure that it is used in such an environment.
- Page 34 Recommended separation distances between portable and mobile RF communications equipment and Aurical Otocam 300 The Aurical Otocam 300 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Aurical Otocam 300 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Aurical Otocam 300 as recommended below, according to the maximum output power of the communications equipment.
- Page 35 : At 80 MHz and 800 MHz the separation distance for the higher frequency range applies. Note 2 : These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Aurical Otocam 300...
- Page 36 8 Technical Specifications Aurical Otocam 300...
- Page 37 Eraser tool Pictures Exporting pictures adding comments adding markers Freeze capturing Full screen view copying to clipboard deleting exporting Icons removing markers Capture Left swapping ear Capture Right viewing old OTOcam pictures Delete Aurical Otocam 300...
- Page 38 Swap ear Switching OTOcam 300 on/off Technical specifications video system Toolbar capture edit Unpacking and installing OTOcam 300 Unpacking the device Video Otoscopy module main window PC shortcut keys right-click functions Video system technical specifications Warning notes Aurical Otocam 300...
