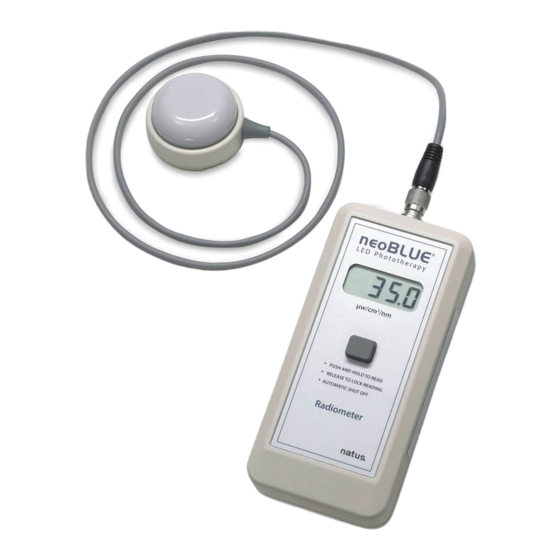

- Page 1 User Manual neoBLUE LED Phototherapy ® Radiometer Read and be familiar with this manual before operating or servicing this device. To ensure operator, technician, and patient CAUTION safety, use only as specified in this manual. 602014 RevD...
- Page 3 Copyright © 2021 Natus Medical Incorporated. All rights reserved. This manual may not be reprinted or copied in whole or in part without written consent from Natus Medical Incorporated. The content of this manual may change without notice. Natus Medical Incorporated...
-
Page 5: Table Of Contents
Contacting Natus Medical ........8... - Page 6 LED PHOTOTHERAPY RADIOMETER Instruction Manual...
-
Page 7: Overview
The following symbols are located on the Radiometer and its packaging. Table 2 Symbols Symbol Definition Symbol Definition Atmospheric pressure Shipping Battery Storage Caution, read instructions Temperature Humidity, condensing Manufacturer Electronic waste Authorized representative (see Specifications) neoBLUE LED PHOTOTHERAPY RADIOMETER Instruction Manual... -
Page 8: Intended Use
Intended Use The neoBLUE LED Phototherapy Radiometer is a spectroradiometer for measuring the irradiance (radiant power) of neoBLUE light-emitting diode (LED) phototherapy devices. This product is suitable only for measuring with neoBLUE products. It does not accurately measure broadband sources such as halogen or fluorescent. -
Page 9: Operation
The sensor connects to the socket on the readout. To connect, turn the connector until the keyed slots are aligned, and then carefully insert the connector into the socket. Figure 3 Connecting the sensor to the readout Socket Readout Connector neoBLUE LED PHOTOTHERAPY RADIOMETER Instruction Manual... -
Page 10: Disconnecting The Sensor
Factory calibration of neoBLUE lights occurs at a distance of 12 inches (30 cm) from the infant. Use or measurement of a neoBLUE light at other distances results in different NOTE intensity readings. neoBLUE LED PHOTOTHERAPY RADIOMETER Instruction Manual... - Page 11 Place the entire white diffuser of the sensor over the lighted area of the mattress to avoid inaccurate measurements. NOTE Press and hold the ON/READ button. “On” is displayed briefly, and then the intensity measurement is displayed. neoBLUE LED PHOTOTHERAPY RADIOMETER Instruction Manual...
-
Page 12: Cleaning
The sensor may have failed. Try to read again. If the problem continues, contact Natus Technical Service or your local Natus representative (see page 8). The digital readout may have failed. Try to read again. If the ... -
Page 13: Maintenance And Service
The printed circuit boards (PCBs) contain static sensitive parts. Always use appropriate electrostatic discharge protection, such as an electrical-grounding wrist strap, when working with internal components. To assure accuracy, factory-calibrate the neoBLUE LED Phototherapy Radiometer to a radiometric standard annually (see Calibrating the Radiometer). Replacing the Battery Required items: 5/64-in. -
Page 14: Service And Repair
Service and Repair The neoBLUE LED Phototherapy Radiometer has no customer serviceable parts and must be returned to the factory or an authorized service center for all repairs and parts replacement. After any service, the Radiometer must be recalibrated radiometrically to assure accurate measurement of irradiance. -
Page 15: Specifications
Controls health caused by inappropriate waste handling. ON/READ button turns on digital readout unit; the irradiance reading locks on the display when the button is released. The device automatically shuts off after 30 seconds. neoBLUE LED PHOTOTHERAPY RADIOMETER Instruction Manual... - Page 16 Instruction Manual neoBLUE LED PHOTOTHERAPY RADIOMETER...
-
Page 17: Drawings And Schematics
Drawings and Schematics Figure 8 neoBLUE LED Phototherapy Radiometer - Schematic, Drawing No. 700271, Rev. C neoBLUE LED PHOTOTHERAPY RADIOMETER Instruction Manual... - Page 18 LED PHOTOTHERAPY RADIOMETER Instruction Manual...
