SHENZHEN RUIDA TECHNOLOGY

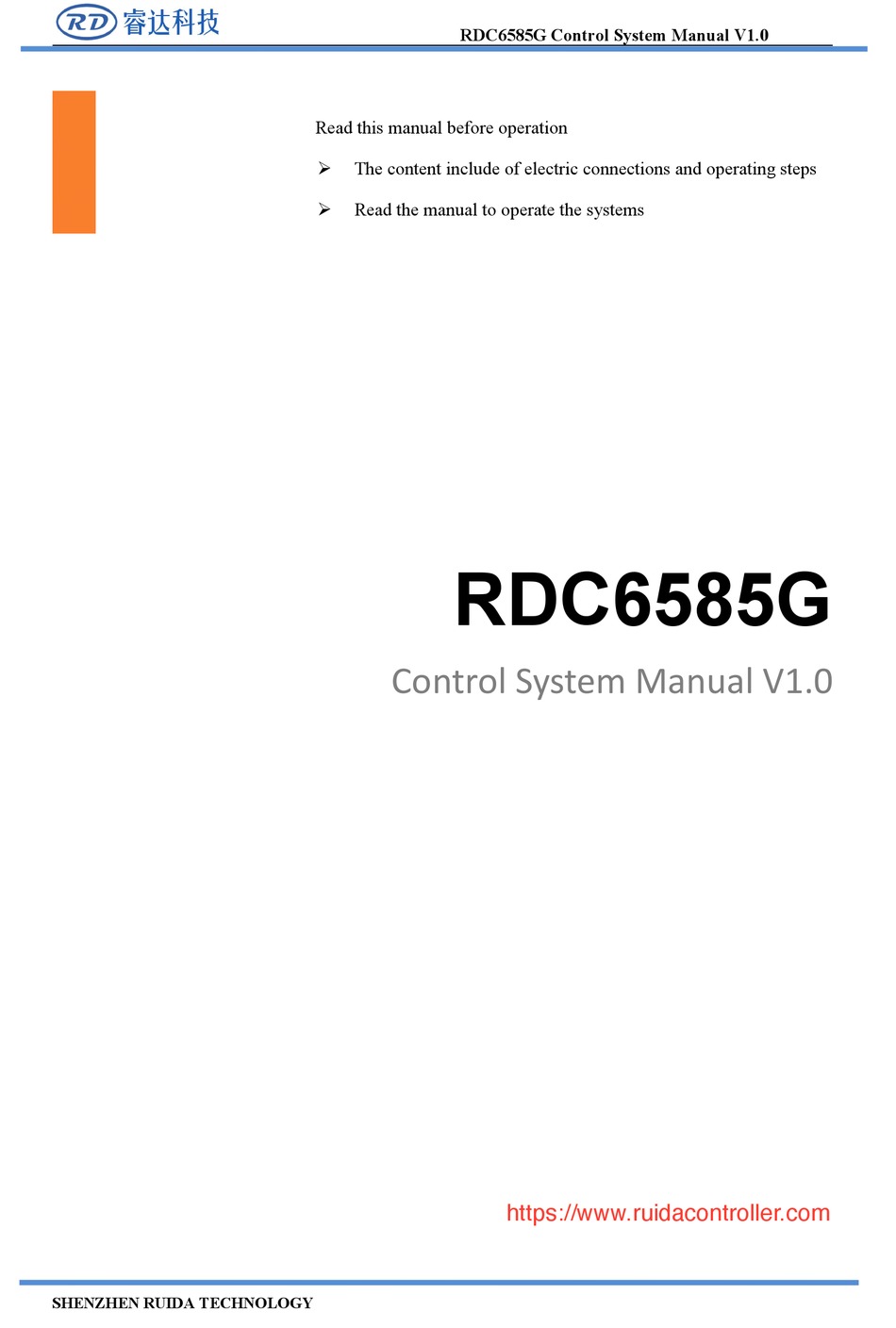

RDC6585G Control System Manual V1.0
Read this manual before operation
The content include of electric connections and operating steps
Read the manual to operate the systems
RDC6585G
Control System Manual V1.0
District,Shenzhen
city,Guangdong
https://www.ruidacontroller.com
Advertisement
Table of Contents
Related Manuals for RuiDa RDC6585G
Summary of Contents for RuiDa RDC6585G
- Page 1 RDC6585G Control System Manual V1.0 Read this manual before operation The content include of electric connections and operating steps Read the manual to operate the systems RDC6585G Control System Manual V1.0 RuiDa Technology Co., Ltd Addr: 202-203,B-Block,Technology Building,NO.,1057 Nanhai...
- Page 2 All rights reserved.You may not reproduce, transmit, store in a retrieval system or adapt thispublication, in any form or by any means, without the prior written permissionof RuiDa, except as allowed under applicable copyright laws. We have identifiedwords that we consider as trademarks. Neither the presence or absence oftrademark identifications affects the legal status of any trademarks.
- Page 3 RDC6585G Control System Manual V1.0 CERTIFICATION DECLARATION The product has been certified by the CE (Commutate European) safety certification. It has passed the corresponding conformity assessment procedure and the manufacturer's declaration of conformity, in accordance with the relevant EU directive.
- Page 4 RDC6585G Control System Manual V1.0 SAFETY INFORMATION When using this system, please make sure the operation is correct and the usage is safe. Some signs or text will be used to remind you to pay attention to the dangerous matters and some important information.
- Page 5 If any missing parts or damaged parts are found, please contact ruida technology immediately.Do not install or debug the equipment if any obvious damage is found.
-
Page 6: Table Of Contents
RDC6585G Control System Manual V1.0 Contents Section 1 Overview............................1 1.1 Briefing............................... 2 1.2 Description of Controller Model......................2 1.3 Comparison of Controller Performance.....................3 Section 2 Installation Size..........................5 2.1 Installation Size of MainBoard......................6 2.2 Size of Panel............................7 Section 3 Object Pictures and Interfaces.....................8 3.1 Object Pictures of MainBoard......................9... - Page 7 RDC6585G Control System Manual V1.0 8.3 Max/Min Power Setting........................34 8.4 Set the layer parameters........................35 8.5 Menu Function..........................36 8.5.1 User parameters........................36 8.5.2 Vender parameters........................39 8.5.3 Origin Setting..........................40 8.5.4 Backup parameters........................42 8.5.5 Restore parameters........................42 8.6 Controller setting..........................42 8.6.1 Language...........................
-
Page 8: Section 1 Overview
RDC6585G Control System Manual V1.0 Section 1 Overview CONTENTS: Briefing Description of Controller Model Comparison of Controller Performance SHENZHEN RUIDA TECHNOLOGY... -
Page 9: Briefing
RDC6585G Control System Manual V1.0 1.1 Briefing RDC6585G system is a new generation system for control of laser engraving and cutting, which is developed by RD Co., Ltd. In addition to high hardware stability, high voltage or static electricity rejection, and friendly 5’’ TFT man-machine display. This system is provided with stronger... -
Page 10: Comparison Of Controller Performance
RDC6585G Control System Manual V1.0 1.3 Comparison of Controller Performance RDC6332G RDC6342G RDC644XG RDC6585G Power Only one-way 24V Only one-way 24V Only one-way 24V Only one-way 24V Feature Laser Port Two-way digits Two-way digits Six-way digits port, Two-way digits port,... - Page 11 RDC6585G Control System Manual V1.0 File dynamic/static preview Run progress bar display Modification Factory/User’s para display Display type 320*240 TFT display 320*240 TFT display 320*480 TFT display 320*480 TFT display Soft Spacing Motion-axl Hard Spacing e Feature Z-axle Linkage Feeding...
-
Page 12: Section 2 Installation Size
RDC6585G Control System Manual V1.0 Section 2 Installation Size CONTENTS: Installation Size of MainBoard Size of Panel SHENZHEN RUIDA TECHNOLOGY... -
Page 13: Installation Size Of Mainboard
RDC6585G Control System Manual V1.0 2.1 Installation Size of MainBoard The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm (the four holes are symmetrical) Figure SHENZHEN RUIDA TECHNOLOGY... -
Page 14: Size Of Panel
RDC6585G Control System Manual V1.0 2.2 Size of Panel The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm. Figure 2.2-1 SHENZHEN RUIDA TECHNOLOGY... -
Page 15: Section3 Object Pictures And Interfaces
RDC6585G Control System Manual V1.0 Section3 Object Pictures and Interfaces CONTENTS: Object Pictures of MainBoard Object Pictures of Panel Electric connection Lamp instruction Function distribution of all eight axes SHENZHEN RUIDA TECHNOLOGY... -
Page 16: Object Pictures Of Mainboard
RDC6585G Control System Manual V1.0 3.1 Object Pictures of MainBoard For more detailed pin description, see the Chapter 4: Description of Interface Signal for MainBoard. Figure: 3.1-1 Object Picture of MainBoard SHENZHEN RUIDA TECHNOLOGY... -
Page 17: Object Pictures Of Panel
RDC6585G Control System Manual V1.0 3.2 Object Pictures of Panel Figure: 3.2-1 Object Picture of Panel SHENZHEN RUIDA TECHNOLOGY... -
Page 18: Electric Connection
RDC6585G Control System Manual V1.0 3.3 Electric connection Figure 3.3-1 electric connection SHENZHEN RUIDA TECHNOLOGY... -
Page 19: Lamp Instruction
RDC6585G Control System Manual V1.0 3.4 Lamp instruction RDC6585G have thirty three red lamps: LED NUMBER NAME SENSE LED1 LmtX- negative limit indicator LED2 LmtX+ positive limit LED3 LmtY- negative limit LED4 LmtY+ positive limit LED5 LmtZ- negative limit LED6... -
Page 20: Function Distribution Of All Eight Axes
RDC6585G Control System Manual V1.0 3.5 Function distribution of all eight axes The function distribution of all eight axes is as below: Single Double Roboticized X Quaternion Hexad Roboticized X Roboticized axes Roboticized X axes axes axes Used to control the... -
Page 21: Section 4 Description Of Interface Signal For Mainboard
RDC6585G Control System Manual V1.0 Section 4 Description of Interface Signal for MainBoard CONTENTS: Interface of Main Power Source CN0 Panel Signal-Cable Interface HMI Udisk Interface PC-USB Interface Ethernet Interface Extended Equipment Interface CN1 Output Port CN2/CN3 Input Port CN4... -
Page 22: Interface Of Main Power Source Cn0
RDC6585G Control System Manual V1.0 4.1 Interface of Main Power Source CN0 Symbols Definitions 24V power ground (input) +24V 24V power positive (input) This control system employs single 24 power supply. For a certain margin, it is suggested to select 24V/2A power. -
Page 23: Output Port Cn2/Cn3
RDC6585G Control System Manual V1.0 Symbols Definitions The TX for the first RS232 port The RX for the first RS232 port The TX for the second RS232 port The RX for the second RS232 port Power ground (output) 4.7 Output Port CN2/CN3... -
Page 24: Input Port Cn4
RDC6585G Control System Manual V1.0 4.8 Input Port CN4 Symbols Definitions Power ground (output) Stop Stop key input, used to stop the running work Shot Input for manual laser on/off. Low level is to open laser and high level or no-connection is to close laser. -
Page 25: D Axle Motor Driver Interface Axis_X~Axis_D
RDC6585G Control System Manual V1.0 LmtX- The spacing from axle X- and X to 0 coordinate LmtX+ The spacing from axle X+ and X to max. coordinate 5V Power positive (output) The spacing polarity is optional, that is to say, when the motion axle reaches the spacing position, it will trigger a low-level signal so as to make the corresponding LED (under the cover) light;... -
Page 26: Laser Power Control Interface Lp1~Lp6
RDC6585G Control System Manual V1.0 4.11 Laser Power Control Interface LP1~LP6 This control system has six independent and adjustable digital laser power control interfaces. Signals of the six interfaces are similar and the first digital interface (LP1) is hereby exampled:... -
Page 27: Section 5 Examples Of Laser Power Interface
RDC6585G Control System Manual V1.0 Section 5 Examples of Laser Power Interface CONTENTS: Brief Examples of Glass tube Laser Power Examples of RF-Laser SHENZHEN RUIDA TECHNOLOGY... -
Page 28: Brief
RDC6585G Control System Manual V1.0 5.1 Brief This control system has six independent and adjustable digital laser power control interfaces, which can be used to control glass tube laser power and RF-laser. The connection of LPn to laser power is all the same. -
Page 29: Examples Of Glass Tube Laser Power
RDC6585G Control System Manual V1.0 5.2 Examples of Glass tube Laser Power SHENZHEN RUIDA TECHNOLOGY... -
Page 30: Examples Of Rf-Laser
RDC6585G Control System Manual V1.0 5.3 Examples of RF-Laser SHENZHEN RUIDA TECHNOLOGY... -
Page 31: Section 6 Examples Of Driver Interface For Step-Servo Motor
RDC6585G Control System Manual V1.0 Section 6 Examples of Driver Interface for Step-servo Motor CONTENTS: Brief Examples of Motor Driver Connection SHENZHEN RUIDA TECHNOLOGY... -
Page 32: Brief
5V positive output, the direction signal and the pulse signal are all OC output. RDC6585G controller must be common anode with the motor driver. The polarity of the direction signal can be changed in the factory parameters, and the valid edge of the pulse signal can also be changed. -
Page 33: Examples Of Motor Driver Connection
RDC6585G Control System Manual V1.0 6.2 Examples of Motor Driver Connection The connection between the motor driver and the RDC6585G controller is given up as chapter 3.3: Electric connection. SHENZHEN RUIDA TECHNOLOGY... -
Page 34: Section 7 Examples Of Extended Equipment Interface
RDC6585G Control System Manual V1.0 Section 7 Examples of Extended Equipment Interface CONTENTS: Examples of Extended Equipment Interface SHENZHEN RUIDA TECHNOLOGY... -
Page 35: Examples Of Extended Equipment Interface
The extended communication port, which named RTLink, that is to say CN1, included two ways RS232 ports. The first way can communicate with EPLC400 or wireless handset, which are developed by RuiDa Technology Co.,Ltd. The second way can also communicate with wireless handset or other equipments. - Page 36 RDC6585G Control System Manual V1.0 Figure 7.1-2 mode2 SHENZHEN RUIDA TECHNOLOGY...
-
Page 37: Section 8 Operating Instruction Of Panel
RDC6585G Control System Manual V1.0 Section 8 Operating Instruction of Panel CONTENTS: Brief Speed Setting Max/Min Power Setting Set the layer parameters Menu Function Controller setting Funtions File Management Password input and settings Prompt and alarm information SHENZHEN RUIDA TECHNOLOGY... -
Page 38: Brief
RDC6585G Control System Manual V1.0 8.1 Brief 8.1.1 Overview RDC6445GZ-HMI control panel (hereinafter referred to as "panel") is a 5.0 inch TFT LCD screen based human-machine interface, with beautiful interface, man-machine friendly, smooth control, cost-effective features. The panel can depict the motion track of the controller in real time, which... - Page 39 RDC6585G Control System Manual V1.0 To track by the current file’s frame. The management of the memory and U disc files. Set the relative origin. Set the laser power of the current running layer, or set the power of ...
-
Page 40: The Main Interface
RDC6585G Control System Manual V1.0 Digital key 0~9： Used to set parameters. The key with the character in the upper right corner can be combined with the <Shift> key, and pressed to control the A, B, C, D axis, and so on. -
Page 41: Speed Setting
RDC6585G Control System Manual V1.0 When work is Idle or finished, all keys can be pushed, users can select a file to run, set some parameters, preview to a select file etc. But, when work is running or paused, some keys don’t respond when they are pushed. -
Page 42: Set The Layer Parameters
RDC6585G Control System Manual V1.0 cancel the parameters, the interface disappears and returns to the main interface. 8.4 Set the layer parameters After selecting a file to preview on the main interface, If there is layer information in the layer parameter area, show as below: Figure 8.4-1... -
Page 43: Menu Function
RDC6585G Control System Manual V1.0 <Enter> key to save the current layer parameters, otherwise the parameters will entry. Press the not be saved. Press the <Esc> key interface to disappear and return to the main interface. 8.5 Menu Function Push the < Menu> key when the screen is on the main interface, it will show as below: Figure Press the <Esc>... - Page 44 RDC6585G Control System Manual V1.0 to select a parameter category such as "carving", "feeding" and so on. The right parameter area displays the corresponding parameters. If the user does not need to modify the parameters, press the <Esc> key to return to the menu interface.
- Page 45 RDC6585G Control System Manual V1.0 SHENZHEN RUIDA TECHNOLOGY...
-
Page 46: Vender Parameters
RDC6585G Control System Manual V1.0 8.5.2 Vender parameters In the menu interface, select "Vender parameters" entry and press the <Enter> key ,it will show as below: Figure 8.5.2-1 The interface parameters of Y,Z,U,A,B,C and D axes are the same as those of X axis parameters. -
Page 47: Origin Setting
RDC6585G Control System Manual V1.0 The operation and settings of the factory parameters are the same as the user parameters. 8.5.3 Origin Setting In the menu interface, select "Origin setting" entry and press the <Enter> key ,it will show as below: Figure 8.5.3-1... - Page 48 RDC6585G Control System Manual V1.0 press <Origin> key to set the current coordinate value to the location point 1, and finally press <Shift> key to return to the current interface operation. The operation process interface is as follows: Figure 8.5.3-2 Other origins are set in the same way.
-
Page 49: Backup Parameters
RDC6585G Control System Manual V1.0 Once the multiple- origin logic is selected and if the serial number of the next origin is 1 and four origins are enabled, when the memory Prompt file function is started or the processing file is uploaded into the PC and this file selects “Take the Original Origin as current Origin”, the... -
Page 50: Language
RDC6585G Control System Manual V1.0 Figure 8.6 Press the <Esc> key to return to the previous menu. 8.6.1 Language Select the "Language" entry under the controller setting interface, press the <Enter> button, and then pop up the language settings interface as follows: Figure 8.6.1... -
Page 51: Wireless Panel
RDC6585G Control System Manual V1.0 Figure 8.6.2 The display screen's origin position is set here, and different screen origin positions are selected to adjust the display graphics position in different X or Y directions. Press the direction key to select a item and press the <Enter> key to set up the position and press the <Esc>... -
Page 52: Ip Setting
RDC6585G Control System Manual V1.0 When modifying the first parameter, press the <Enter> key to enter the modification mode ("blue selection block" right side becomes ), press the "Up/Down" key to modify, and then press the <Enter> key to exit the modification mode. Press the direction key to select other parameters and press the number key to modify the parameters. -
Page 53: Funtions
RDC6585G Control System Manual V1.0 Figure 8.6.5 Press the <Enter> key to read motherboard information.Press the <Esc> key to return to the previous menu. 8.7 Funtions In the menu interface, select "Function" entry and press the <Enter> key ,it will show as below: Figure 8.7... -
Page 54: Keyboard Lock
RDC6585G Control System Manual V1.0 Figure 8.7.1 Press the direction key to select an entry and press the <Enter> key, the system performs the axis reset, and prompts "Resetting...". Press the <Esc> key to return to the previous menu. 8.7.2 Keyboard lock Select the "Keyboard lock"... -
Page 55: Manual Setting
RDC6585G Control System Manual V1.0 8.7.3 Manual setting Select the "Manual setting" entry under the funtions interface, press the <Enter> button, and then pop up the interface as follows: Figure 8.7.3 Manual mode has “Continue” and “Manual”, press the <Enter> key to enter the modification mode ("blue selection block"... -
Page 56: Diagnose
RDC6585G Control System Manual V1.0 Figure 8.7.4 The operation method is the same as manual setting. When “Continue” item is selected, then the “Laser time” item is not valid, on that time, push the Laser key to splash the enabled lasers, and when Laser key is loosed, then the lasers will finish splashing. -
Page 57: Laser Power Infomation
RDC6585G Control System Manual V1.0 When selecting the “Output” item, press the <Enter> key, the following interface pops up: Figure8.7.5 When the “blue selection block” stops on the “Read status” item, press the <Enter> key to refresh the status of each output port. Press the direction key to move the “blue selection block” to any output port and press the <Enter>... -
Page 58: File Management
RDC6585G Control System Manual V1.0 the <Enter> key to view the information of each power supply. The interface is as follows: Figure 8.7.6-2 When the "blue selection block" stops at the "diagnostic TL" and "diagnostic TH" entries, press the <Enter> key to check whether the IO of the laser power supply is abnormal, and if so, an alarm will be generated. -
Page 59: Memory Operation
RDC6585G Control System Manual V1.0 work times would be listed in the area, and the selected file is previewed in the bottom right area. <Up >/<Down> keys could be used to move the cursor on the file name list. When the cursor is on a target file name, presses the <Enter>... -
Page 60: Format Memery
RDC6585G Control System Manual V1.0 Figure 8.8.2 Clear all count: To clear the running times of every file in the memory Delete all file: To delete all memory files Format memery: To format memory speedily, and then all the files in memory will be deleted. -
Page 61: U Disk File
RDC6585G Control System Manual V1.0 Format drastically: To format memory drastically, and then all the files in memory will be deleted. Methods of operation are the same as above.Press the <Esc> key to return to the previous menu. 8.8.4 U disk file If the “U disk”... -
Page 62: Password Setting
RDC6585G Control System Manual V1.0 The interface is as follows: Figure 8.9.1 You can enter the password directly by pressing the number key, or you can select a number or letter by pressing the direction key, select by pressing the <Enter> key, and press the <Enter>... -
Page 63: Prompt And Alarm Information
RDC6585G Control System Manual V1.0 8.10 Prompt and alarm information In the process of user operation or system operation will pop up some hints and alarm information, such as reset, water protection failure, hard limit protection, border crossing and so on. -
Page 64: Section 9 Manufacturer/User Parameters Explanation
RDC6585G Control System Manual V1.0 Section 9 Manufacturer/User Parameters Explanation CONTENTS: Manufacturer parameters Set the layer parameters SHENZHEN RUIDA TECHNOLOGY... -
Page 65: Manufacturer Parameters
RDC6585G Control System Manual V1.0 9.1 Manufacturer parameters （1）Motor parameters X~D axle parameters Direction Polarity: Modification of direction polarity can move the motor to the opposite direction. The modification purpose can move this axle to the origin on resetting. If this axle moves far from the origin on resetting, it means the direction polarity of this axle is wrong in setting and should be modified. - Page 66 RDC6585G Control System Manual V1.0 squeak; if small, it will reduce the running speed of the whole figure. If the inertia of the motion axle is larger (the axle is heavier), you can set a smaller takeoff speed; if smaller (the axle is lighter), you can increase the takeoff speed.
- Page 67 RDC6585G Control System Manual V1.0 Laser Enable: When double lasers are used, then each laser can be respectively enabled or disabled. Minimum Power Maximum Power Laser PWM Frequency Pre-generation Frequency Enable Pre-generation Frequency Pre-generation pulse scale: When the laser Pre-generation function is enable, then set the Pre-generation Frequency and the Pre-generation pulse scale.
- Page 68 RDC6585G Control System Manual V1.0 Feeding Mode: it has single-way mode and two-way mode for option. If it is of single-way feeding, it is unnecessary to check the coordinates. Feeding can be conducted in the single-way mode; if it is of two-way feeding, the system will check the maximum and minimum coordinates.
-
Page 69: User Parameters
RDC6585G Control System Manual V1.0 Multi-head number: the number of the all x axes in the multi-head auto layout machine. Driver type: single belt or multi- belt are selected. （4）Three-Color-Led Config Parameter If Enable Three-Color-Led or Buzzer: If enabled, the output ports in controller will drive the three-color-led and buzzer, then, these outputs be used to control other equipments. - Page 70 RDC6585G Control System Manual V1.0 ● Key Setting: This is a button but not a parameter, this button is used to recommend some experiential cutting parameters. （2）Scanning parameters(Only affect scanning arts) X-axle Starting Speed Y-axle Starting Speed X-axle Acceleration ...
- Page 71 RDC6585G Control System Manual V1.0 After-feeding Time Lag: settable at 0~9.9s. It can facilitate the feeding device’s delaying in jarring after moving to the correct position and waiting for the 2 work after the feeding axle stands still completely.
- Page 72 RDC6585G Control System Manual V1.0 direction to another. On selecting one-way array, the elements of each array are the same in action mode and completely uniform in action fluency, which takes a little more time than two-way array. Two-way array is the default option.
- Page 73 RDC6585G Control System Manual V1.0 Thank you for your selection of our production! All the copyright of this manual is owned by Ruida technology. Any person or company can not copy upload and send the manual without Ruida’s permission. Content will be revised or modified. We will not send message to every users.
