Summary of Contents for AEG FM 4803K-AN

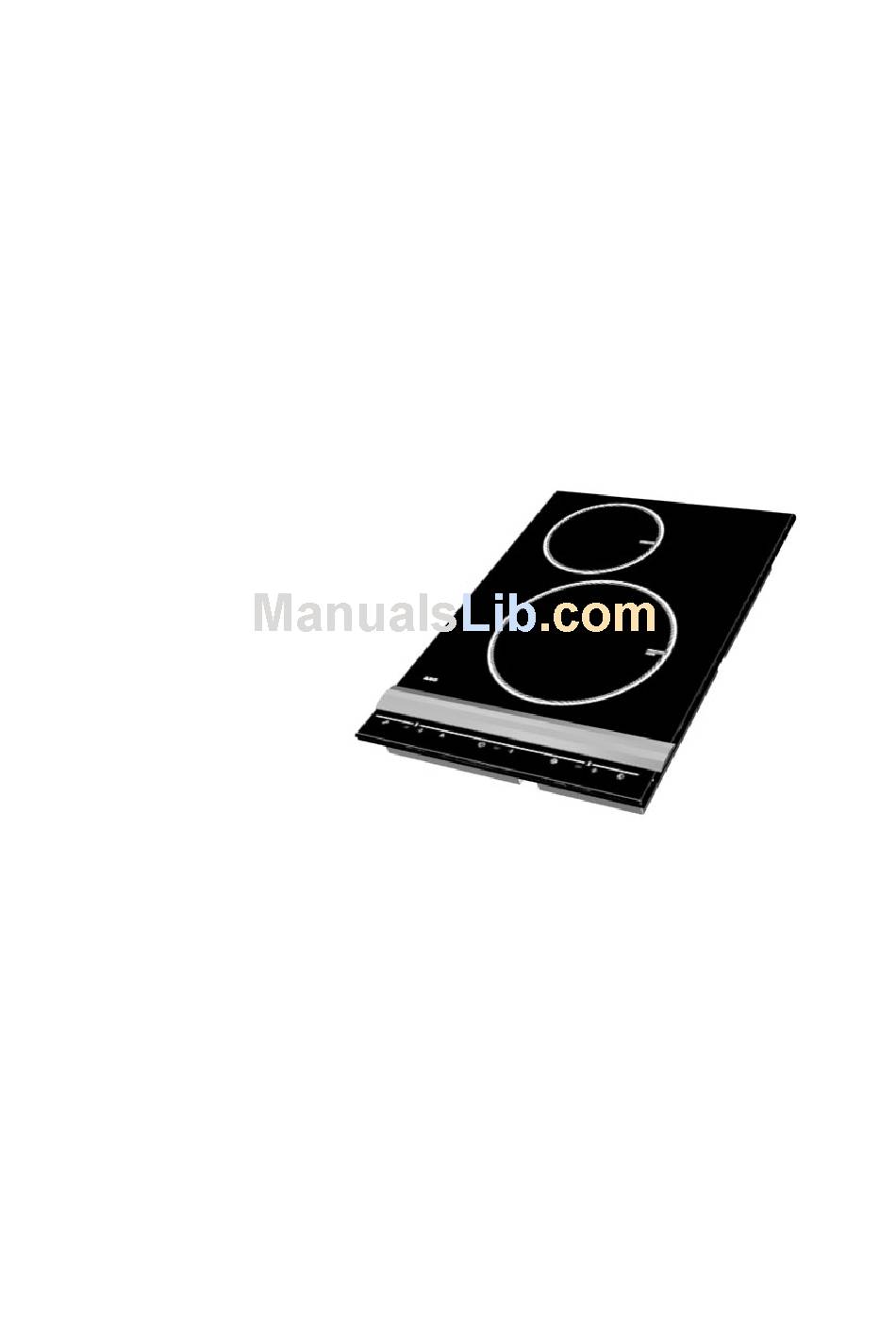

- Page 1 INSTRUCTION BOOK FM 4803K-an 325 88-8327 rev. 3-343 949 601 004...
-
Page 2: Your New Appliance
Your New Appliance Thank you for purchasing an AEG appliance. To enable you to use your new appliance efficiently and safely, please read this instruction book carefully before installing or using the appliance, and retain for future reference. Should the appliance be transferred to a new owner please ensure this instruction book is left with the appliance in order that the new owner can get to know the functions of the appliance and the relevant warnings. -
Page 3: Table Of Contents
Contents For the User Your New Appliance ... Safety Information ... Product Description ... Ceramic Hob ... Induction... Before use ... Protect the ceramic hob ... How to Use ... Ceramic Hob ... Touch Contols... 12 Cooking Zones ... Residual Heat Indicator ... Power ... -
Page 4: For The Installer
Contents For the Installer Unpacking ... Technical Specifications ... Installation... Mounting ... How to read the operating instructions 1... 2...Step by step Safety information The products are continuously being developed and it may occur that some product specifications are changed after this instruction book was printed. We therefore have to make reservation for any changes or printing errors. -
Page 5: Safety Information
Safety Information The hob is intended for domestic use only. If it is used in any other way there is a risk of accidents. Children Keep an eye on children when the hob is in use. Pans get very hot when used and remain warm for some time after the hob has been turned off. - Page 6 Disposal Help prevent accidents when dispos- ing of the product. Remove the cable from the wall plug and cut off the cable close to the product.
-
Page 7: Product Description
Product Description 1. Cooking zone Ø 140 mm, 1400 W. 2. Cooking zone Ø 210 mm, 2200 W, 3000 W power. 3. Control panel Control Panel 1. On / off 2. Heat setting selectors 3. AUTOMAX/Power 4. Timer 5. Minute minder 6. -
Page 8: Ceramic Hob
Ceramic hob Ceramic glass is insensitive to tem- perature shock and very robust: however it is not unbreakable. Especially sharp and hard objects that fall on the cooking sur- face can damage it. Induction When you switch on a zone, a high- frequency magnetic field is formed between the induction coil and the Saucepan base... - Page 9 High safety levels The individual zones will only get hot when a pan with a magnetic base is placed on them. It is impossible to turn on an empty zone. When you remove the pan from a lighted zone, the zone will turn off even if you do not switch it off.
-
Page 10: Before Use
Protect the ceramic hob Before using the hob for the first time, clean off any manufacturing residues such as dust, dirt etc. Apply a protective coating on the ceramic hob before you use it. This way it becomes easier to clean the glass and you prevent any spillage from burning. -
Page 11: How To Use
Ceramic hob Never use a cracked vitroce- ramic hob. Water could boil over and/or cleaning agents penetrate into the live electrical parts. Switch off the power to the appliance and contact Service. Never place aluminium foil, paper, plastic or similar on the hob. -
Page 12: Touch Contols
Touch Controls The sensor fields must be touched for mini- mum 1 sec. before activation. Cooking Zones The cooking z ones can be adjusted from 0-9, where 9 is the highest setting. 1. Press the button. 2. Press or the the desired zone. -
Page 13: Residual Heat Indicator
Turn off a single zone by pressing buttons until the dis- play shows “0”. You can turn off a zone quickly by pressing the buttons simultaneously. Turn off all zones by pressing the button. Residual Heat Indicator Each cooking zone has a residual heat indicator. -
Page 14: Power
Power Switching on power You can switch the front cooking zone to extra heat for a maximum of 10 minutes . 1. Press the knob. 2. Set the cooking zone to level “9” by pressing the 3. Press the button. When Power is switched on, the Power control lamp will light and the cooking zone will output 3000... -
Page 15: Automax
Automax With AUTOMAX you do not need to turn down the temperature. When using AUTOMAX the zone gets full heat for a certain amount of time where after the cooking zone auto- matically adjusts to the setting you have chosen. To adjust AUTOMAX you have to do the following: 1. - Page 16 AUTOMAX Settings Food types Cooking process Steaks Quick frying Schnitzels Frying Meat balls Fried eggs Sausages Pancakes Gentle frying Fritters Potatoes Boiling/ Vegetables steaming Omelette, Thickening Scrambled eggs Chocolate Butter Melting Gelatine Time to automatic cutout A7-A8 2½ mins A6-A7 1½-2 mins A6-A7 1½-2 mins...
-
Page 17: Safety Switch-Off
Safety Switch-off If one of the keys are activated for more than 10 seconds (e.g. by a child, pot spillage etc.) the hob is automatically switched off. Autostop If by mistake one or more cooking zones have not been switched off Autostop will automatically switch off the hob after a certain amount of time. -
Page 18: Activating The Child Safety Device
Activating the Child Safety Device With the child safety function chil- dren can be prevented from turning on the hob unintentionally. When the child safety is activated you can still use the minute minder. Activating the Child Safety Device 1. Turn on the hob, push the 2. - Page 19 Cancelling the Child Safety 1. Push the key. 2. Push the key for 3 seconds. The control lamp for child safety turns off.
-
Page 20: Minute Minder
Minute Minder Setting the Minute Minder The minute minder can only be used when the timer is not in use. 1. Turn on the hob, push 2. Push once on 3. Push the key till the desired time is shown in the dis- play. -
Page 21: Timer
Timer This function can automatically turn off a cooking zone at any given time. When this function has not been chosen the clock can be used as a minute minder (see the section “Minute minder”) Timer and minute minder cannot be used simultaneously. - Page 22 Both cooking zones can be set simultaneously with two different timings. When both cooking zones have a setting the time for the indi- vidual cooking zone is read in the following way: The time in the display belongs to the cooking zone for which the con- trol lamp is lit.
-
Page 23: Suitable Pans
Suitable pans When using non-stick pans, do not use level 9 or Power, as the non-stick coating may be damaged by the high induction heat. · The induction hob can only be turned on when a cooking utensil with a magnetic base is placed on one of the zones. -
Page 24: Advise And Tips For Using The Cooking Zones
Advise and Tips for Using the Cooking Zones By using the advise below you can save energy and ease cleaning. Use close-fitting lids on the pans. Failure to use a lid on a pan uses over three times as much electric- ity. -
Page 25: Cleaning And Maintenance Of
Cleaning and Maintenance Aluminium Carry out daily cleaning with a well wrung-out cloth. For more stubborn soiling, use a cloth or a soft plastic sponge together with washing-up liquid or all-purpose cleaner. Never use metal cleaning pads, metal wool, hard plastic sponges, scouring powder, soft soap or other abrasive or caustic cleaning agents. -
Page 26: Unpacking
Unpacking Check that the appliance has no faults and is undamaged on delivery. Transport Damages Any damages resulting from a trans- port which you have not performed yourself must be communicated to the dealer within one week of receipt of the product. On the rating plate which is placed on the back of the product you will find the CE marking and the prod-... -
Page 27: Technical Data
Technical Data Model FM 4803K-an: Product measurements: Width: Depth: Height: Build-in measurements: Width: Depth: Height: Measurements / power Front cooking zone: 210 mm Rear cooking zone: 140 mm This unit is labelled to indicate conformity with the lowvoltage directive (73/23/EEC) and the EMC directive (89/336/EEC). -
Page 28: Installation
Electrical Installation Installation may only be per- formed by a qualified elec- trician or a person autho- rised by the manufacturer. Work performed by an unqualified person may cause injury or damages to property and deteriorate the hob. Connecting the Appliance Single phase Type of cable: 2,5 mm2 twin and earth. -
Page 29: Mounting
The unit may be mounted in any type of kitchen worktop with a thickness of 28 to 40 mm. 49 mm 10 mm 10 mm Mounting 360 mm BUNDHYLDE min. 20 mm BASE SHELF 340 mm 250 mm BASE SHELF 250 mm 38 mm... - Page 30 Installation in cupboard WITHOUT oven To ensure the necessary air supply to the appliance, the top of any floor cupboard must be removed. If this is not done, the air supply will be cor- respondingly reduced and the guar- antee will be invalid. The distance between the lower sur- face of the appliance and shelves/drawers must be min.
- Page 31 Cutting Out When mounting this unit: Read the instructions on this page. When mounting the hob together with other units: Read the instructions on the next page. For mounting the hob you need a Philips screwdriver and the 4 clamp- ing fittings supplied with this prod- uct (see fig.).
- Page 32 Mounting more than one Distance to wall: Min. 150 mm (flammable material) Reinforcement beam Cutting out The measurement of the selected combination is calculated in the following way: Depth: 490 mm Width: 1. Calculate the sum of all units’ width. 2.
- Page 33 Mounting: When mounting several hobs together you must use a reinforcement beam between each hob as well as the silicone supplied with the hobs (see fig.) 1. Cut a hole of the calculated size in the table top 2. Place the individual hobs upside down on a mat. Take care that the top side is not scratched.
- Page 34 To optimise joints between the installed hobs, the gap between the ceramic hob may be grouted with silicone: 1. Remove the aluminium panels from the hobs. 2. Apply a stripe of silicone to the gap between the two ceramic hob. Use only the silicone supplied, as it is designed to tolerate the appliance’s high temper- ature.
- Page 35 Overview of the outside width of the units 180 mm Downdraft 360 mm Glass ceramic hob with 2 cooking zones Gas hob with 2 burners Induction hob with 2 cooking zones Grill Grill / Fryer 580 mm Glass ceramic hob with 4 cooking zones Gas hob with 4 burners 720 mm...
-
Page 36: Troubleshooting
What to do if... If the appliance is not working correctly, please carry out the following checks before contacting your local AEG Service Force Centre. IMPORTANT: If you call out an engineer to a fault caused by incorrect use or installation, a charge will be made even if the aookuabce is under guarantee. - Page 37 Problems The zones won’t turn on. The dis- play shows: The zones won’t turn on and the display shows: The display is flashing “F”. If the rear zone is set to levels 8 or 9 while the front zone is set to Power, the front zone will revert to level 9.
-
Page 38: Service And Spare Parts
Service and Spare Parts In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local AEG Service Force Centre by telephoning: 08705 929 929 Your call will automatically be routed to the Service Centre covering your post code area. -
Page 39: Guarantee Conditions
GUARANTEE CONDITIONS Standard guarantee conditions We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: ·... - Page 40 · Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements. · Products of AEG manufacture which are not marketed by AEG. European Guarantee If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications: ·...
