- Page 1 66300KF-an Glaskeramik-Kochfeld Ceramic glass hob Table de cuisson vitrocéramique Montage- und Gebrauchsanweisung Installation and Operating Instructions Instructions de montage et mode d’emploi...
-
Page 2: Dear Customer
Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning! Information that affects your personal safety. Important! Information that prevents damage to the appliance. -
Page 3: Table Of Contents
Contents Operating Instructions ........28 Safety instructions. -
Page 4: Operating Instructions
Operating Instructions 1 Safety instructions Please comply with these instructions. If you do not, any damage re- sulting is not covered by the warranty. This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC –... -
Page 5: Safety During Use
Safety during use • Overheated fats and oils can ignite quickly. When cooking with fat or oil (e.g. chips) do not leave the appliance unattended. • There is the risk of burns from the appliance if used carelessly. • Remove stickers and film from the glass ceramic. •... -
Page 6: Description Of The Appliance

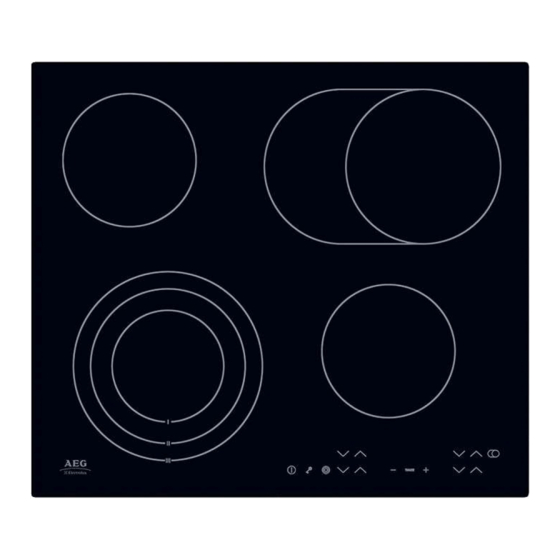

Description of the Appliance Cooking surface layout Single cooking zone Multi-purpose zone 1200W 1500/2400W Control panel Triple cooking zone Single cooking zone 800/1600/2300W 1200W Control panel layout Lock Cooking zone indicators Heat setting selection with pilot light Timer function Display Timer display Outside/middle ring Outside ring... -
Page 7: Touch Control Sensor Fields
Touch Control sensor fields The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields. Sensor field Function On / Off To switch the appliance on and... -
Page 8: Displays
Displays Display Description ¾ Cooking zone is switched off Keep warm setting Keep warm setting is set ¿ Ç Heat settings Heat setting is set Heating setting plus Intermediate heat setting is set decimal point Automatic warm up Automatic warm-up function is function activated Fault... -
Page 9: Operating The Appliance
Operating the appliance Switching the appliance on and off Control panel Display Pilot light ¾ Switch on Touch for 2 seconds lights up Switch off Touch for 1 second / none goes out After switching on, within approx. 10 seconds a heat setting or a func- tion must be set, otherwise the appliance automatically switches itself off. -
Page 10: Switching The Outside Ring On And Off
Switching the outside ring on and off By switching the outside rings on or off, the effective heating surface can be matched to the size of the cookware. Before an outside ring can be switched on, the inside ring must be switched on. -
Page 11: Using The Automatic Warm-Up Function
Using the automatic warm-up function All cooking zones are equpped with an automatic warm up function ¾ When setting a heat setting using , when starting from , the cook- ing zone switches to full power for a certain amount of time and then automatically switches back to the heat setting set. -
Page 12: Using The Child Safety Device
Using the child safety device The child safety device prevents unintentional use of the appliance. Setting the child safety device Step Control panel Display/Signal ¾ Switch on the appliance (Do not set a heat setting) Touch until the signal sounds Acoustic signal Touch Appliance switches off. -
Page 13: Using The Timer
Using the timer Function Condition Outcome after the time has elapsed Automatic cut-out a heat setting is set acoustic signal flashes Cooking zone switches off Countdown timer cooking zones not in use acoustic signal flashes If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking zone is switched off after the time set has elapsed. -
Page 14: Setting The Time
Setting the time Step Control panel Indicator Select TIMER cooking Pilot light for the cooking zone se- zone lected flashes Touch minutes After a few seconds the pilot light flashes more slowly. The time is set. The time counts down. Switching off the timer function Step Control panel... -
Page 15: Displaying The Time Remaining For A Cooking Zone
Displaying the time remaining for a cooking zone Step Control panel field Display TIMER Select cooking Pilot light of the cooking zone select- zone ed flashes faster The time remaining is displayed After a few seconds the pilot light flashes more slowly. Switching off the acoustic signal Step Control panel field... -
Page 16: Safety Cut-Out
Safety cut-out Cooking surface • If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface auto- matically switches itself off. • If one or more sensor fields are covered by objects (a pan, cloths, etc.) for longer than approx. -
Page 17: Tips On Cooking And Frying
Tips on Cooking and Frying Information on acrylamides According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much. Cookware •... -
Page 18: Examples Of Cooking Applications
Examples of cooking applications The information given in the following table is for guidance only. Heat Cooking- Cooking set- suitable for Tips/Hints process time ting Off position Keeping Keeping cooked foods food as required Cover warm warm Hollandaise sauce, Melting melting butter, chocolate, 5-25 mins. -
Page 19: Cleaning And Care
Cleaning and Care Take care! Risk of burns from residual heat. Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. Warning! Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid. Cleaning the appliance after each use 1. -
Page 20: Metal Décor Strips
Metal décor strips Warning! Do not use vinegar, lemon juice or lime slaking agents on the cooking surface's décor strips, otherwise dull spots will result. When cleaning do not introduce flat objects (e.g. knives) under the dé- cor strips, as otherwise these can possibly become detached. 1. -
Page 21: What To Do If
What to do if … Problem Possible cause Remedy The cooking zones will not More than 10 seconds have Switch the appliance on switch on or are not func- passed since the appliance again. tioning was switched on The child safety device is Deactivate the child safety switched on device (See the section... - Page 22 Problem Possible cause Remedy _ is lit Overheating protection for Switch off the cooking the cooking zone has been zone. Switch the cooking triggered zone on again and number are dis- Electronics fault Disconnect the appliance played from the electrical supply for a few minutes (Take the fuse out of the house’s wir- ing system)
-
Page 23: Disposal
Disposal Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this... -
Page 24: Installation Instructions
Installation Instructions Safety instructions The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accord- ance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be ob- served. - Page 25 A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.
-
Page 26: Guarantee/Customer Service
In diesen Ländern gelten die Garantiebedingungen der örtlichen Part- ner. Diese können dort eingesehen werden. Further after-sales service agencies overseas In these countries our AEG-Electrolux agents’ own guarantee conditi- ons are applicable. Please obtain further details direct. Autres agences étrangères assurant le service après-vente Dans ces pays, les conditions de garantie des concessionnaires de la ré-... - Page 27 Fax: 905 829 3985 Tel.: 25355 Tel.: 2024181719 Australia Korea (South) Namibia The Andi-Co Group Core Incorp. AEG NAMIBIA (PTY) 1 Stamford Road 3/F Chewoo Bldg. LIMITED-Jeppe Street Oakleigh VIC 3166 200 Nonhyun-Dong Northern Industrial Area Tel.: (03) 9569 1255...
- Page 28 143-006 Tokyo Tel.: 0120-13-7117 Fax: 03-3790-5257 Thailand Slovakia Rep. South Africa Olympia Thai Tower, 444 Electrolux Slovakia S.R.O. AEG (Pty) Ltd. Rachadapiser Road Seberiniho 1 55, 12th Road Samsennok- Huaykwang 821 03 Bratislava P.O. Box 1 02 64 10320 Bangkok Tel.: 02 4333 4322, 4355...
-
Page 29: Service
Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instruc- tions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners. -
Page 30: Assembly
Montage / Assembly... - Page 33 Typenschild / Rating Plate / Plaque signalétique 66300KF-AN 949 592 291 55HAD56AO 230 V 50 Hz 7,1 kW AEG-ELECTROLUX...
