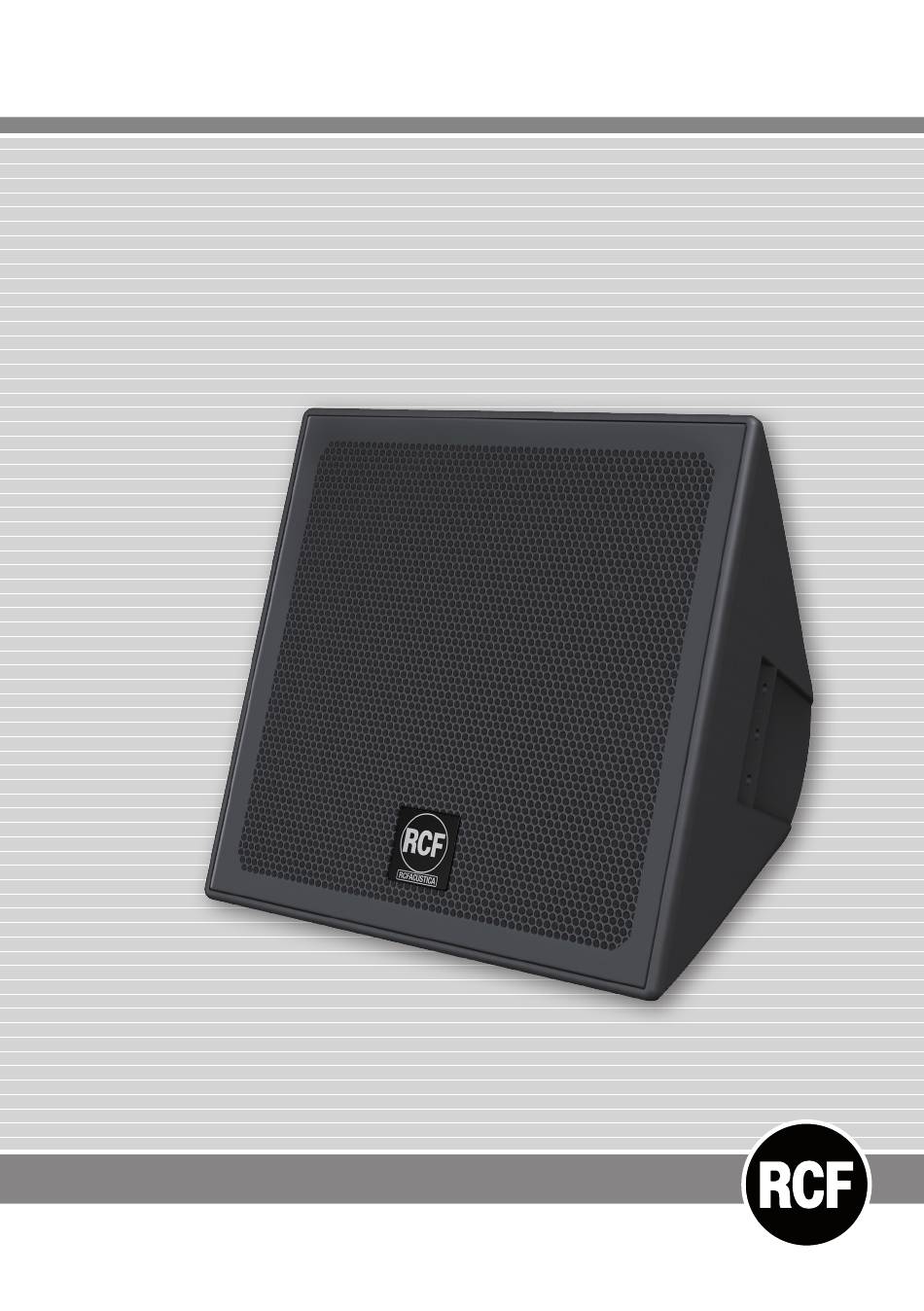

- Page 1 P2110-T P3115-T P6215 P SERIES LOUDSPEAKER SYSTEMS DIFFUSORI SERIE P User manual Manuale d’uso the rules of sound...
- Page 2 RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.
- Page 3 Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc.), and the components used for attachment (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.
-
Page 4: Installation Notes
RCF S.p.A. would like to thank you for purchasing this product, which has been designed to guarantee reliability and high performance. DESCRIPTION P series loudspeaker systems belong to the “RCF ACUSTICA” line for fixed indoor installation, but also outdoor (IP 55 protection) if installed as sealed box (by covering the reflex ports with the suitable plugs). Their cabinets are made of UV stabilized plastic resin and their shape allows both single installations and arrays / clusters (with optional accessories). -
Page 5: Single Loudspeaker Installation
SINGLE LOUDSPEAKER INSTALLATION a) Horizontal U bracket installation: fix the loudspeaker to the U bracket by tightening the two bolts (M8 on P 2110-T, M10 on P 3115-T and P 6215) into the two loudspeaker central holes. Before tightening the two bolts, adjust the loudspeaker tilt and then (when you are sure of the proper angle) fix that position through thread-forming screws into the U bracket little holes next to Note: do NOT tilt the loudspeaker upwards! the central hole for bolts. b) Vertical U bracket installation: put the two shims on the loudspeaker and fix them by tightening two pairs of bolts (M8 on P 2110-T, M10 on P 3115-T and P 6215). Then fix the loudspeaker to the U bracket by tightening other... - Page 6 CONNECTIONS Warning: loudspeaker connections should be only made by qualified and experienced personnel having the technical know-how or sufficient specific instructions (to ensure that connections are made correctly) in order to prevent any electrical danger. To prevent any risk of electric shock, do not connect loudspeakers when the amplifier is switched on. Before turning the system on, check all connections and make sure there are no accidental short circuits.
-
Page 7: Notes About Constant Voltage Systems
NOTES ABOUT CONSTANT VOLTAGE SYSTEMS • The loudspeaker input voltage (Vd) must correspond to the amplifier output voltage (Va). • The sum of nominal power values (Pd x n) of all loudspeakers connected to the line must not exceed the amplifier power (Pa). • Make sure all loudspeakers are connected in phase to ensure a correct audio reproduction. Amplifier Pa > Pd x n Vd = Va Vd = Va Vd = Va... -
Page 8: Other Notes
OTHER NOTES • Always use cables having wires with an adequate cross-section, considering the cable length and the total loudspeaker power. • Loudspeaker lines must be kept separated from mains cables, microphone cables or others, in order to avoid inductive phenomena may cause hum or noises. - Page 9 Except possible errors and omissions. RCF S.p.A. reserves the right to make modifications without prior notice. the rules of sound RCF SpA: Via Raffaello, 13 - 42010 Reggio Emilia > Italy tel. +39 0522 274411 - fax +39 0522 274484 - e-mail: rcfservice@rcf.it...
