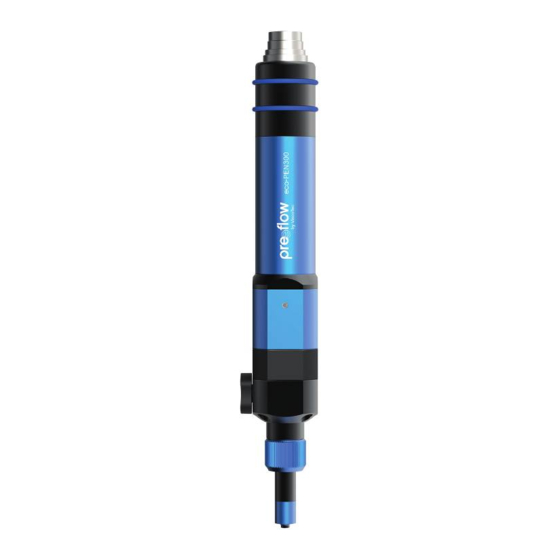

- Page 1 Dosing system Commissioning and maintenance manual eco-PEN300...
- Page 2 Item number 20506 Print 21.2.12...
-
Page 3: Table Of Contents
eco-PEN300 Commissioning and maintenance manual Contents This Manual The dispenser Safety Starting up for the first time Inserting the stator Connecting the dosing unit to the drive unit Supply the medium and bleed. Connection options Cleaning Spare parts Maintenance Changing the stator Troubleshooting Disposal Technical specifications... - Page 4 eco-PEN300 Commissioning and maintenance manual 4 / 15 Version 1.2 Copyright ©...
-
Page 5: This Manual
eco-PEN300 Commissioning and maintenance manual This Manual Dear customer, This manual forms part of the operating and maintenance manual for the dosing system eco-CONTROL EC200. The operating and maintenance manual must have been read and understood in full before commissioning or carrying out maintenance work on the eco-PEN300. -
Page 6: Starting Up For The First Time
eco-PEN300 Commissioning and maintenance manual Starting up for the first time Dispenser Do not switch on until medium has been delivered to it. Otherwise there is a risk of damage to the equipment. Even a brief period of dry running can lead to the stator being destroyed. -
Page 7: Connecting The Dosing Unit To The Drive Unit
eco-PEN300 Commissioning and maintenance manual Connecting the dosing unit to the drive unit Fig. 3 1. Turn the set screws (14) in the thread such that they do not protrude into the coupling area. Danger of damage to the fit. 2. - Page 8 eco-PEN300 Commissioning and maintenance manual Version A (e.g. supply via a hose, closed cartridge) • Bring the Dispenser into a position in which the end piece (3) points upwards. • Connect the Dispenser to the power supply and convey the medium until there are no more air bubbles in it and the outlet nozzle (with the Luer-Lock needle) comes out.
-
Page 9: Connection Options
eco-PEN300 Commissioning and maintenance manual Connection options Self-levelling liquid, low viscosity medium Supply of the medium from a cartridge (A) or a bottle (B). D Power supply drive unit Note: Select the size of the hose so that the liquid comes out by gravity and without any air bubbles at the Dispenser. -
Page 10: Cleaning
eco-PEN300 Commissioning and maintenance manual Cleaning Preparation: Remove the dosing needle, danger of injury! Disconnect the power supply of the drive unit and uncouple it from the dosing unit (in the reverse order to that described in 4.2, Connecting the dosing unit to the drive unit, page7). 1. -
Page 11: Spare Parts
eco-PEN300 Commissioning and maintenance manual Spare parts Fig. 10 Item Part no. x Item name Material 20500 Dosing unit eco-PEN300 cpl. 20425 Union ring eco-PEN300 Aluminium 20517 x End piece eco-PEN300 with Luer-Lock cpl. 20050 x Star-shaped coupling Elastomer 20108 Assembly aid Aluminium 20426... -
Page 12: Maintenance
eco-PEN300 Commissioning and maintenance manual Maintenance Changing the stator • Remove the defective stator (see section 6, Cleaning, page 10) • Install the new stator (see "Assembly" in section 6, Cleaning, page 10) Troubleshooting Fault Possible cause Action Needle blocked Clean / replace the needle Medium hardened Clean the Dispenser... -
Page 13: Technical Specifications
eco-PEN300 Commissioning and maintenance manual Technical specifications Dimensions Length, 206 mm, 29 x 29 mm, ø 33 mm Weight approx. 380 g Minimum operating pressure 0 bar, with self-levelling liquid Maximum operating pressure 0 to 6 bar, with non-self-levelling liquid Maximum dosing pressure *** 16 to 20 bar Self-sealing *... - Page 14 eco-PEN300 Commissioning and maintenance manual Notes 14 / 15 Version 1.2 Copyright ©...
