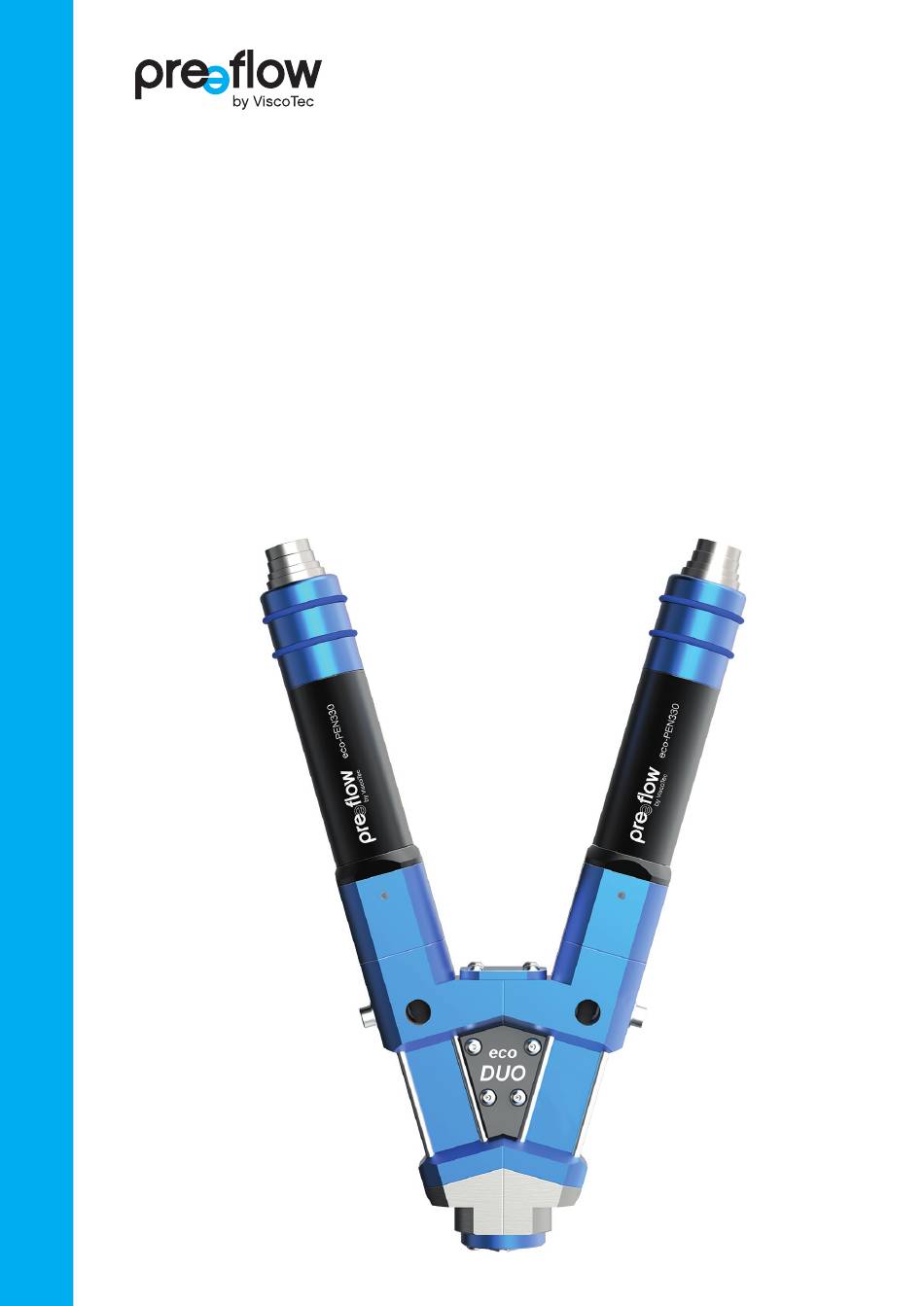

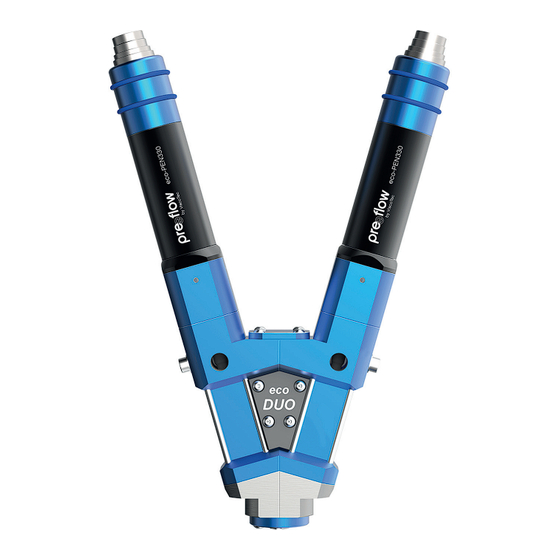

- Page 1 OPERATION & MAINTENANCE MANUAL eco-DUO330...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ...................... 4 Delivery package ..................4 Incoming inspection ................. 5 Safety ........................ 6 Explanation of symbols used ..............6 Intended use .................... 7 Personnel....................8 2.3.1 Operators..................8 2.3.2 Maintenance staff ................ 8 Informal safety precautions..............8 Preventing damage to equipment ............ - Page 3 TABLE OF CONTENTS Maintenance ....................24 Maintenance intervals ................24 Troubleshooting ..................25 Stator change..................26 Dismantling before cleaning..............27 Cleaning ......................28 Spare parts ..................... 29 Item list of the spare parts..............29 Overview drawing of the spare parts ............. 31 Technical specifications................
-
Page 4: Introduction
INTRODUCTION Introduction Dear customer, We are delighted that you have decided to purchase a ViscoTec product. We have no doubt that this product will meet all your requirements. We wish you trouble-free and successful operation. The dosing system consists of the eco-DUO330 dispenser and the eco- CONTROL EC200 DUO dosing control unit or the plug´n´mix dosing control unit. -
Page 5: Incoming Inspection
INTRODUCTION Incoming inspection Damage in transit can lead to malfunctions, and consequently to personal injury and damage to property. Damaged components must not be put into operation. Check the delivery immediately on receipt for damage in transit and damage to the packaging. -
Page 6: Safety
SAFETY Safety Explanation of symbols used The following symbols are used in this manual: Work step • List Fig. 1 Legend number, reference to a figure Reference to a comment COMMAND Designations of buttons/switches, menu items and input dialogs The following notices indicate safety instructions and must be followed: DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. -
Page 7: Intended Use
SAFETY Intended use The eco-DUO330 dispenser is used to feed and precisely dose viscous materials. The dispenser is controlled using the eco-CONTROL EC200 DUO dosing control unit or the plug´n´mix dosing control unit. Check the chemical resistance of the materials that are in contact with the material before commissioning. -
Page 8: Personnel
SAFETY Personnel The operating organisation shall ensure that only appropriately qualified and authorised personnel work on this machine. It is responsible for ensuring that operators and maintenance staff possess the necessary qualifications. Personnel must be at least 15 years old. All personnel working with or on the machine must have read and understood this operation manual. -
Page 9: Preventing Damage To Equipment
SAFETY Preventing damage to equipment In order to prevent damage to equipment and to ensure precision dosing, note that • the dispenser must never be operated without material (the stator will be destroyed) • the material inlet (feed) and the material outlet must never be closed during operation •... -
Page 10: Residual Risks
SAFETY Residual risks Thorough training, observance of the operation manual and compliance with safety regulations are key to permanently accident-free operation. The following residual risks may occur when operating this machine: WARNING Material hazardous to health The conveyed material may contain constituents which are hazardous to health. Such constituents may cause serious acute or chronic harm to health if they come into contact with skin, are inhaled or swallowed. -
Page 11: Transport And Storage
SAFETY CAUTION Splashing material During initial commissioning and after being refilled, air bubbles in the material could cause an uncontrollable spraying from the conveying area. This may result in injury. • Always wear appropriate protective equipment • Fully bleed the system before start of production CAUTION Pointed dosing needle Depending on its size, the dosing needle can be very thin and pointed. -
Page 12: Product Description
PRODUCT DESCRIPTION Product description The dispenser has been developed and tested for precision dosing of materials ranging from low to high viscosity with extremely high repeat accuracy. preeflow dispensers are positive displacement pumps. The conveying elements comprise a rotating part, the „rotor“, and a stationary part, the „stator“. The rotor, which is in the form of a type of knuckle thread, rotates inside the stator, which has one more thread turn and twice the pitch length of the rotor. -
Page 13: Operation
OPERATION Operation Initial commissioning All activities described below may only be carried out by qualified staff. When delivered, the stator is not installed so as to avoid bearing damage to the elastomer of the stator. 4.1.1 Dismantling the dispenser Remove the 2 screws (9). ... - Page 14 OPERATION Remove the adapter (13) with seals (14). Remove the 4 screws (17). Remove the mounting plates (15, 16). Separate the dispenser halves. Fig. 3 14 / 36 eco-DUO330 INST-002734 / B...
-
Page 15: Installing The Stator
OPERATION On both dispenser halves perform Remove the 3 screws (6). Remove the end piece (5). Fig. 4 4.1.2 Installing the stator On both dispenser halves perform Plug the star-shaped coupling (22) into the rotor assembly seal housing (1). ... -
Page 16: Reassembling The Dispenser
OPERATION 4.1.3 Reassembling the dispenser For reassembly, the work steps outlined in Section 4.1.1 (page 13) are carried out in reverse order. When doing this, observe the following Join the end piece (5) and the pump housing (2) in parallel so that the dispensers can be ... -
Page 17: Connecting The Dosing Unit To The Drive Unit
OPERATION 4.1.4 Connecting the dosing unit to the drive unit Screw the set screws (21) into the thread so that they do not protrude into the coupling area. Danger of damage to the fit. Attach the star-shaped couplings (22) onto the coupling of the drive units (A). ... -
Page 18: Mounting Sensors For Monitoring Dosing Pressure
OPERATION 4.1.5 Mounting sensors for monitoring dosing pressure Remove the seals (14) from the adapters (13) and mount on the sensors (37). Mount the sensors (37) by hand together with the seals (14) using the installation wrench provided. Fig. -
Page 19: Feeding Material And Bleeding The Dispenser For The First Time
OPERATION 4.1.6 Feeding material and bleeding the dispenser for the first time Connect the material supply (feed line, cartridge) to the material inlet (B) of the dispenser. Bring the eco-DUO330 into a vertical position. Position the static mixer (24) and lock in place. ... -
Page 20: Calibration
OPERATION 4.1.7 Calibration To obtain a precise dosing result, the dosing quantity must be calibrated. This is performed using the eco-CONTROL EC200 DUO dosing control unit. The exact procedure can be found in the dosing control unit manual. A calibration adapter (35) is available for calibrating the dispenser. -
Page 21: Recommendations For Problem-Free Operation
OPERATION with the name of the tester, date and time. Fit static mixer (24). Carry out at least one purge shot. Start dosing process via the dosing control unit. Recommendations for problem-free operation These experience values apply for a wide variety of dual-component materials. Always follow the manufacturer recommendations for your material in addition to these. -
Page 22: Switching Off, Ending Dosing Process
OPERATION Switching off, ending dosing process If the dosing process for a 2-component system has to be terminated, the outlet openings (A and B) have to be cleaned. Place dosing control unit in manual operation. Release the static mixer (24) from the mixing ... -
Page 23: Decommissioning
OPERATION Decommissioning All activities described below may only be carried out by authorised maintenance staff. Switch off the drive to the dispenser and lock it to prevent it from being switched on again. Shut down material supply to the dispenser (depressurise). ... -
Page 24: Maintenance
MAINTENANCE Maintenance In the event of a fault, or if there is any doubt that the machine/system is not completely ready for operation, it must be shut down immediately and inspected by competent maintenance staff before operation continues. WARNING Maintenance and cleaning work may only be carried out when the machine has been shut down safely and secured against unauthorised restarting. -
Page 25: Troubleshooting
MAINTENANCE Troubleshooting Fault Possible cause Action Motor not connected Connect the motor Fault with mains supply Check electrical installation Material hardened/set Dismantle and clean the dispenser Static mixer blocked Replace the static mixer Stator/rotor worn Replace stator/rotor No or too little material Stator swollen Check resistance of the stator feeding... -
Page 26: Stator Change
MAINTENANCE Stator change All activities described below may only be carried out by authorised maintenance staff. Preparation Disconnect the dosing control unit from the power supply. Disconnect the power supply to the drive units. Disconnect cable from the pressure monitor (if available). ... -
Page 27: Dismantling Before Cleaning
MAINTENANCE Dismantling before cleaning When cleaning the dispenser, attention must be paid to the chemical properties and chemical reactions of the material. In doing so, observe and comply with the corresponding specifications of the product data sheet. If you have any queries, contact the manufacturer of the material. -
Page 28: Cleaning
CLEANING Cleaning WARNING Cleaning work may only be carried out when the machine has been shut down safely and secured against unauthorised restarting. Otherwise, serious injuries may result. • Switch off the dosing control unit. • Disconnect the dosing control unit's power cable from the power supply If the dispenser is soiled with material or if the dispenser is disassembled and cleaned, use a cleaning agent which matches the material. -
Page 29: Spare Parts
SPARE PARTS Spare parts Every time you order spare parts, please state the type identifier, serial number and order number. The serial number is engraved on the bearing housing (31). Item list of the spare parts Items that are not shown in the overview drawing (Page 31) Item Description Part No. - Page 30 SPARE PARTS Items that are shown in the overview drawing (Page 31) Item Description Part No. Material Rotor strand seal housing 21531 Pump housing 20360 Aluminium Allen screw M3 x 65 20362 Stator 21483 VisChem End piece 20361 Aluminium Allen screw M3 x 8 20367 Top centring cover 20363...
-
Page 31: Overview Drawing Of The Spare Parts
SPARE PARTS Overview drawing of the spare parts Fig. 14 INST-002734 / B eco-DUO330 31 / 36... -
Page 32: Technical Specifications
Technical specifications Installation declaration Within the meaning of EU Directive 2006/42/EU on Machinery Annex II B ViscoTec Pumpen- u. Dosiertechnik GmbH Amperstraße 13 D-84513 Töging am Inn, hereby declare that, in the design and manufacture of the incomplete machine described below, the following basic requirements of EU Directive 2006/42/EC have been applied and complied with: 1.1.2, 1.1.3, 1.1.5, 1.3.2, 1.5.4, 1.6.1, 1.6.2, 1.7.4, 1.7.4.1, 1.7.4.2... -
Page 33: Technical Data
TECHNICAL SPECIFICATIONS Technical data eco-DUO330 Weight approx. 1,230 g Minimum operating pressure 0 bar, with self-levelling liquid Maximum operating pressure 20 bar, with non self-levelling liquid 1) 4) Maximum dosing pressure 40 bar Self sealing approx. 2 bar (reference material approx. 1000 mPas at 20 °C) Motor 18 to 24 V DC, incremental encoder, planetary gear... -
Page 34: Materials Used
TECHNICAL SPECIFICATIONS Materials used Material Components in contact with the material 2-component dispenser housing, end nozzle Anodized aluminium 2-component dispenser parts, motor housing Anodized aluminium Screws, washers, etc. Stainless steel A2 Stator elastomer, flexible shaft covering VisChem Shaft sealing rings O-rings FKM, FFKM... -
Page 35: Disposal
DISPOSAL / ACCESSORIES Disposal The dispenser must be removed by competent maintenance staff. Disposal may only be performed in line with the currently applicable, country-specific specifications, standards and legislation. Ensure environmentally friendly recycling of all materials. Electrical parts must not be disposed of with household waste (2012/19/EU). - Page 36 OPERATION & MAINTENANCE MANUAL eco-DUO330 Project number: 14X-XX-XXXX Order number: 14X-XX-XXXX © Copyright 2020 ViscoTec Pumpen- u. Dosiertechnik GmbH Amperstraße 13 D-84513 Töging am Inn Germany This document is protected by copyright. It must not be modified, extended, reproduced or distributed to third parties without written consent.
