Summary of Contents for Vent-Axia SDX100B

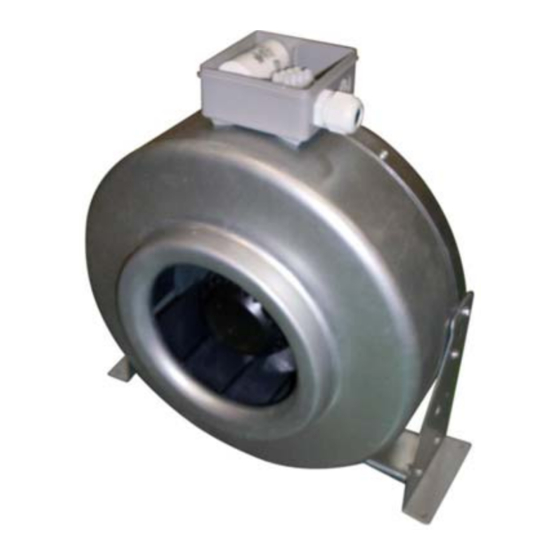

- Page 1 In-Line Centrifugal Duct Fans Installation and Wiring Instructions Stock Ref. N° SDX100B SDX125B SDX150B SDX200B SDX250B SDX315B SDX150HB SDX200HB SDX250HB SDX315HB 220-240V~50Hz PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS...
- Page 2 C. Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating label. D. The Fan should only be used in conjunction with the appropriate Vent-Axia products. E. It is recommended that the connection to the fan connecter terminals is made with flexible cable.
- Page 3 WIRING. WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE. THE SDX FANS ARE CLASS 1 AND MUST BE EARTHED. 1. Remove terminal box cover & screws and put to one side. 2.
- Page 4 Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- •...
