INPUTS & OUTPUTS > OTHER I/O

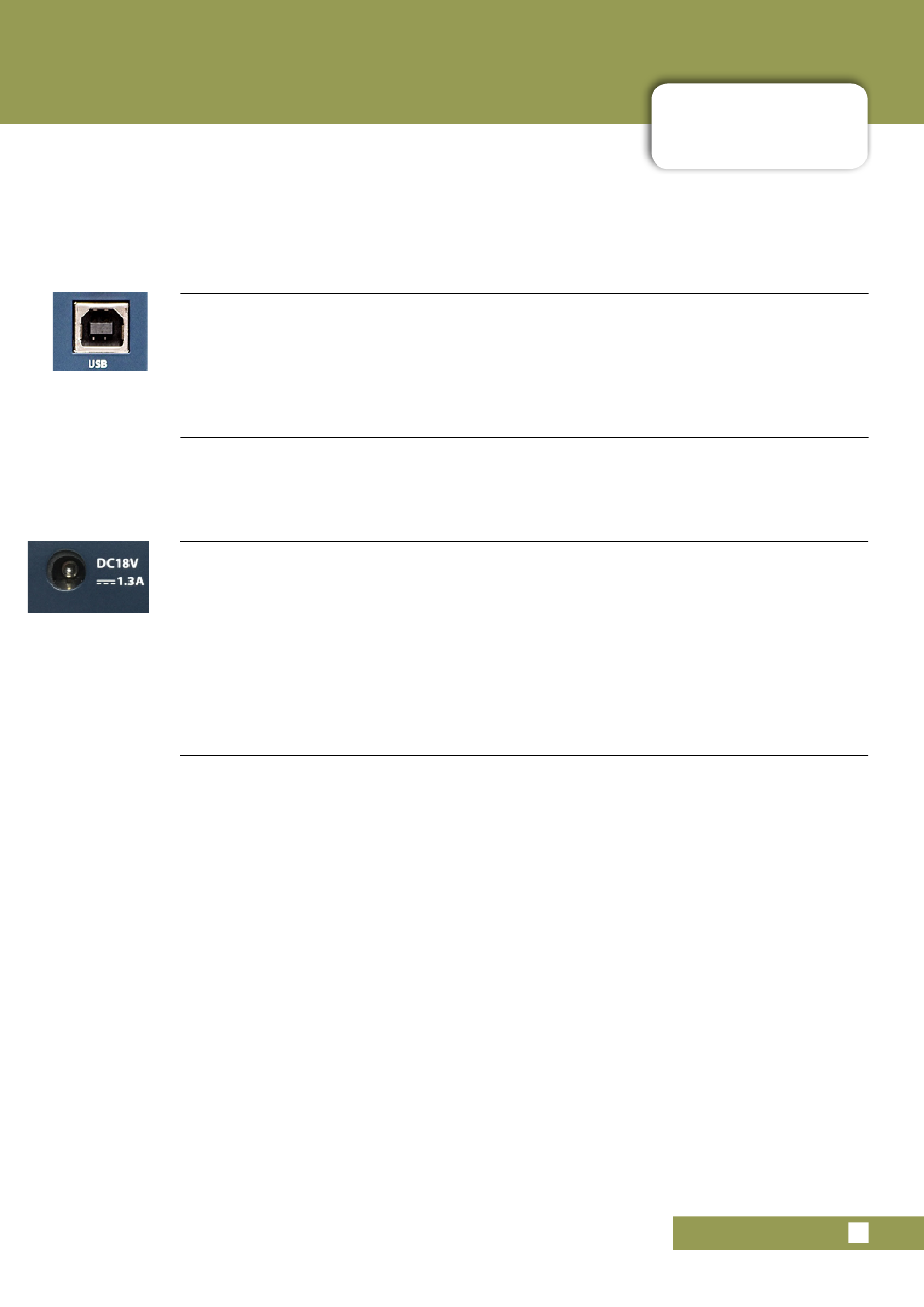

USB
USB data connection for audio input and output
The Notepad outputs offer a range of connection options depending on the application. Always consider carefully
the best output and routing strategy for your particular application. For more detail, please see section 7.
Power Connection
The Notepad console uses an external mid-lead power supply. The power connector is located on
the back panel of the console.
Rated at DC18V, 1.3A
A power cord restraint is located on the back of the mixer, to reduce chance of the power supply lead disconnecting
from the back of the Notepad mixer by accidental movements. To use the power cord restraint, make a small loop in
the power lead and push the loop up through the restraint, hook it over the plastic anchor, then pull back softly on
the cable until loop is securely held in place.
