Summary of Contents for Harman SoundCraft MINI STAGEBOX 16
- Page 1 ® HARMAN MINI STAGEBOX 16 User & Installation Guide...
- Page 2 All rights reserved. Parts of the design of this product may be protected by worldwide patents. Part No. 5038776 Soundcraft is a trading division of Harman International Industries Ltd. Information in this manual is subject ® to change without notice and does not represent a commitment on the part of the vendor. Soundcraft shall...
-
Page 3: Table Of Contents
WORKING SAFELY WITH SOUND FEATURES MINI STAGEBOX FRONT PANEL MINI STAGEBOX REAR PANEL MOUNTING MINI STAGEBOX CONNECTING IT UP MINI STAGEBOX CONNECTING TO Vi2-Vi6 RANGE CONSOLES MINI STAGEBOX CONNECTING TO Si OR Vi1 CONSOLES SPECIFICATIONS WARRANTY Soundcraft Mini Stagebox 16 User/Installation Guide 0813... -
Page 4: Introduction
Contain important information and useful tips on headphone outputs and monitoring levels. ESD WARNING The crossed-out hand symbol is intended to alert the user to devices sensitive to electrostatic discharge. Please refer to the instructions on page 6. Soundcraft Mini Stagebox 16 User/Installation Guide 0813... -
Page 5: Important Safety Warnings
This unit is capable of operating over a range of mains voltages as marked on the rear panel. The internal power supply unit contains no user serviceable parts. Refer all servicing to a qualified service engineer, through the appropriate Soundcraft dealer. Soundcraft Mini Stagebox 16 User/Installation Guide 0813... -
Page 6: Electrostatic Discharge (Esd)
To prevent the components from undefined transient stress and possible damage due to inadmissible voltages or compensation currents, electrical connections should only be established or separated when the equipment is switched off and after any capacitor charges have decayed. Soundcraft Mini Stagebox 16 User/Installation Guide 0813... -
Page 7: Important Safety Instructions
No naked flame sources, such as lighted candles, should be placed on the apparatus. Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table cloths, curtains etc. Soundcraft Mini Stagebox 16 User/Installation Guide 0813... -
Page 8: Working Safely With Sound
Most importantly — don’t be afraid to experiment to find out how each parameter affects the sound — this will extend your creativity and help you to get the best results. Recommended headphone impedance is 50-600 ohms. Soundcraft Mini Stagebox 16 User/Installation Guide 0813... -
Page 9: Features
Si range of consoles regardless of whether that I/O is needed locally or hundreds of metres away on the stage. The Soundcraft Mini Stagebox 16 requires only 2U of rack space and, in this tiny footprint, provides 16 recallable mic/line inputs and 8 balanced line outputs, all lifted directly from the Vi1 and the larger Compact Stagebox. -

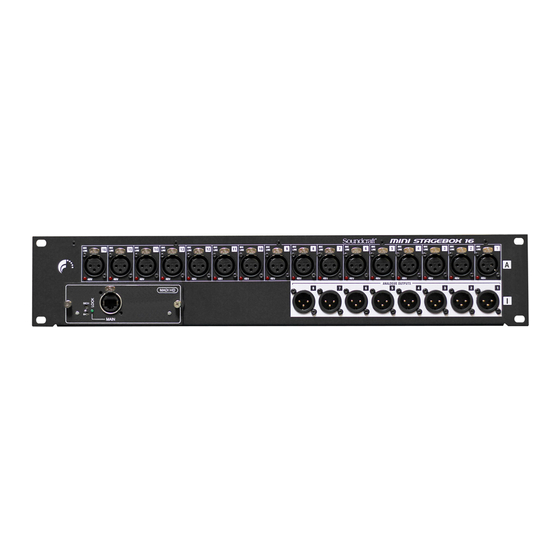

Page 10: Mini Stagebox Front Panel
3. MADI CARD (CAT5) 1. MIC/LINE IN 1-16 - CARD A 4. 48V PHANTOM POWER 2. LINE OUT 1-8 - CARD <TBD> INDICATOR MINI STAGEBOX REAR PANEL 1. AC INLET AND POWER SWITCH Soundcraft Mini Stagebox 16 User/Installation Guide 0813... -
Page 11: Mounting Mini Stagebox 16
‘other’ equipment >100W) it is recommended to leave a 1U gap between the equipment. In all scenarios, the air vents must not be obstructed and the Mini Stagebox 16 must not be mounted in a fully sealed enclosure. Soundcraft Mini Stagebox 16 User/Installation Guide 0813... -
Page 12: Connecting It Up
MINI STAGEBOX 16 CONNECTING TO VI2-VI6 RANGE CONSOLES Note: Connections from the local rack to the Mini Stagebox 16 may vary depending on actual flightcase and breakout panel options. Local Rack MINI Stagebox 16 Soundcraft Mini Stagebox 16 User/Installation Guide 0813... -
Page 13: Mini Stagebox Connecting To Si Or Vi1 Consoles
Option Card User Guide if using more than 1 option card in the console. Si Performer (Vi1 or other Si series) Console with optional MADI card in the extension slot(s). Connect to the MAIN port MINI Stagebox 16 Soundcraft Mini Stagebox 16 User/Installation Guide 0813... -
Page 14: Specifications
Mains voltage operating range: 90 — 264 VAC, 47 — 63Hz -10 o C — +50 o C Operating temperature range: Relative humidity: 0 — 90% -10 o C — +50 o C Storage temperature range: Soundcraft Mini Stagebox 16 User/Installation Guide 0813... -
Page 15: Warranty
OUT-OF-WARRANTY PRODUCTS For out-of-warranty consoles purchased in the United Kingdom, please contact the Customer Services Department (e-mail: soundcraft.csd@harman.com) at the factory in Potters Bar, Hertfordshire: Telephone +44 (0)1707 665000. For all other out-of-warranty consoles, please contact the appropriate territorial distributor. - Page 16 ® HARMAN Soundcraft Harman International Industries Ltd Cranborne House Cranborne Road Potters Bar Herts. EN6 3JN United Kingdom +44 (0)1707 665000 www.soundcraft.com...
