NOTEPAD SERIES
• NOTEPAD-5   • NOTEPAD-8FX   • NOTEPAD-12FX
Welcome
Thank you for purchasing a Soundcraft NOTEPAD mixing console.
This Quick Start Guide is a short guide to the NOTEPAD's major features. Use it in addition to the NOTEPAD
PDF Manual, downloadable from the NOTEPAD product web pages:
NOTEPAD-5
https://www.soundcraft.com/en/products/notepad-5#downloads_and_docs
NOTEPAD-8FX
https://www.soundcraft.com/en/products/notepad-8fx#downloads_and_docs
NOTEPAD-12FX
https://www.soundcraft.com/en/products/notepad-12fx#downloads_and_docs
Included Contents
•
NOTEPAD Mixer
•
AC to DC External Power Supply (with removable power lead to AC connection)
•
Quick Start Guide (this document)

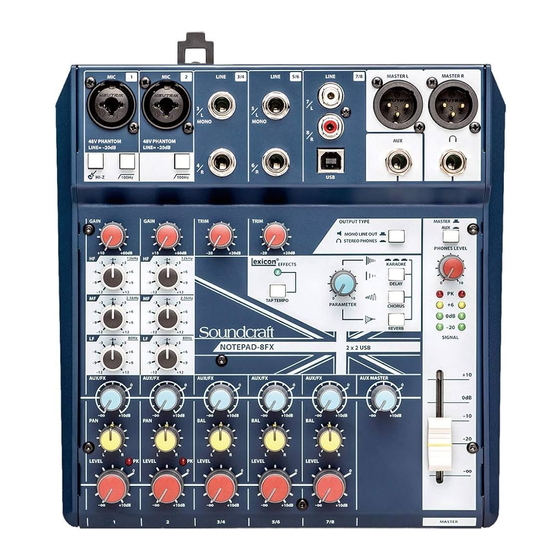

All graphic representations in this manual are of the Notepad-12FX model.
The Notepad-5 and Notepad-8FX models are similar, but with a reduced feature set.
QUICK START GUIDE
