Bluetooth Connection Manual

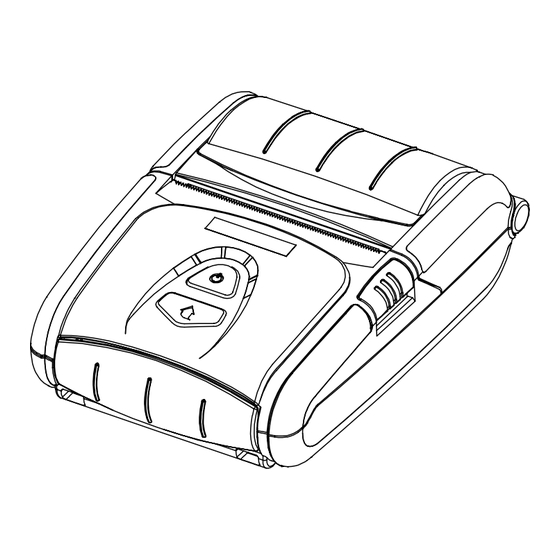

SPP-R300
Mobile Printer
Rev. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPP-R300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON SPP-R300

Summary of Contents for BIXOLON SPP-R300

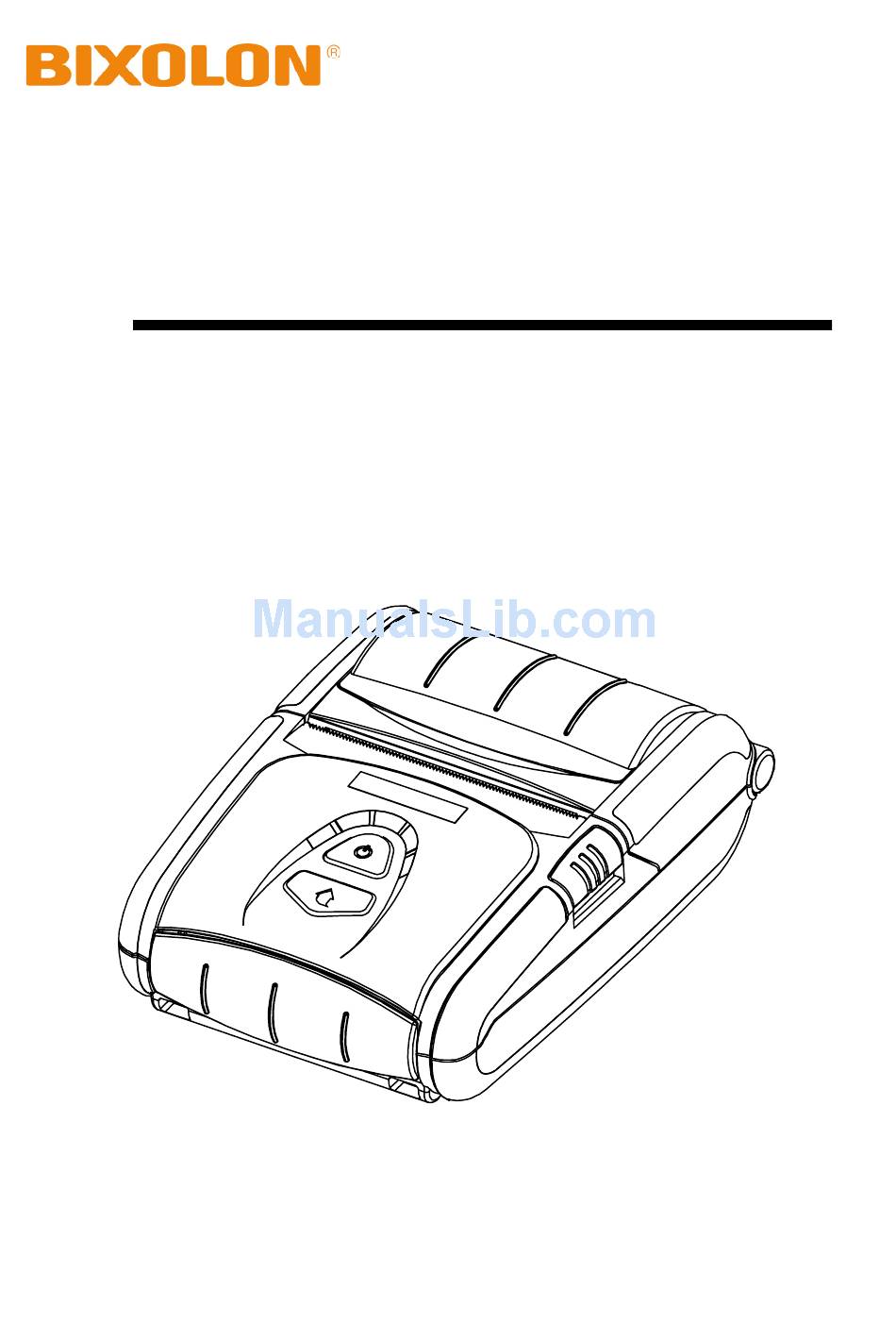

  • Page 1 Bluetooth Connection Manual SPP-R300 Mobile Printer Rev. 1.00 http://www.bixolon.com...

  • Page 2: Table Of Contents

    SPP-R300 ■ Table of Contents 1. Manual Information......................3 2. Precautions ........................3 3. General Sequence for Bluetooth Connections ............3 4. Bluetooth Connection Instructions ................4 4-1 Connecting with an Intermec PDA (Device: CN2B, OS: Pocket PC 4.20.0) ....5 4-2 Connecting with a SYMBOL PDA (Device: SYMBOL MC70, OS: Windows Mobile 5.0)....

  • Page 3: Manual Information

    This Bluetooth Connection Manual provides information on the connection of Bluetooth- enabled devices (PDAs, PCs, etc.) with the printer (SPP-R300). We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.

  • Page 4: Bluetooth Connection Instructions

    - Widefly PDA (Device: WF35, OS: WinCE 5.0) - Bluetooth Dongle (BlueSoleil IVT Stack) - Bluetooth Dongle (Widcomm Stack) After turning on the power of all Bluetooth devices, perform the connection process. - PDAs, PCs (Bluetooth Dongle), printers (SPP-R300), etc. - 4 - Rev. 1.00...

  • Page 5: Connecting With An Intermec Pda (Device: Cn2B, Os: Pocket Pc 4.20.0)

    SPP-R300 4-1 Connecting with an Intermec PDA (Device: CN2B, OS: Pocket PC 4.20.0) 1) Click the icon. 2) Click “Settings”. 3) Click “Connections”. 4) Click the “Bluetooth” icon. - 5 - Rev. 1.00...
  • Page 6 SPP-R300 5) Click to check the “On” option. 6) Click the “Wireless Printing” menu bar 7) Click the ”Device Discovery” button. 8) Select Devices of the SPP-R300, and click the “Connect” button. - 6 - Rev. 1.00...
  • Page 7 10) Check the “Enable Wireless Printing” and ”Default” checkboxes, and click the “Printer Test Page” button. 11) Click the “OK” button. 12) The PIN Code(Device PIN) window appears (if the SPP-R300 security function is enabled). - 7 - Rev. 1.00...
  • Page 8 13) Input the PIN Code(Device PIN) 14) If after pressing the “Print Test Page” button, and click “Next”. (Default code: 0000) the BT LED of the SPP-R300 turns on and test printing is performed, the connection is complete. - 8 -...

  • Page 9: Connecting With A Symbol Pda (Device: Symbol Mc70, Os: Windows Mobile 5.0)

    SPP-R300 4-2 Connecting with a SYMBOL PDA (Device: SYMBOL MC70, OS: Windows Mobile 5.0) 1) Click the icon. 2) Click ”Enable Bluetooth”. 3) Click the icon. 4) Click “Show BTExplorer”’. - 9 - Rev. 1.00...
  • Page 10 SPP-R300 5) Click ”File”. 6) Click “New Connection”. 7) Click ”Associate Serial Port”. 8) Click the “Next” button. - 10 - Rev. 1.00...
  • Page 11 9) Click the List window for 2 seconds and 10) Click “Refresh”. the function folder appears. Click for 2 seconds. 11) Bluetooth devices in the proximity are 12) Select the Device Address of the discovered. SPP-R300, and click the “Next” button. - 11 - Rev. 1.00...
  • Page 12 SPP-R300 13) The Serial port is registered as COM9. 14) Click the SPP-R300 name for 2 seconds. 15) Click ”Connect”. 16) The PIN Code window appears (if the SPP-R300 security function is enabled). - 12 - Rev. 1.00...
  • Page 13 SPP-R300 17) Input the PIN Code and click “Enter”. 18) The “Connection Successful” message (Default PIN Code: 0000) appears, and the connection is complete when the BT LED of the SPP-R300 turns on. - 13 - Rev. 1.00...

  • Page 14: Connecting With An Hp Pda (Device: Ipaq Hx2700, Os: Windows Mobile 5.1.1702)

    Bluetooth function. Not active 3) When activated, the Bluetooth button turns 4) Click ”New“. green. Click the “Manager” button to connect to the SPP-R300. - 14 - Rev. 1.00...
  • Page 15 SPP-R300 5) Click ”Explore a Bluetooth device”. 6) Click the SPP-R300 icon from the Bluetooth devices displayed in the search results. 7) Select BIXOLON-SPP and click “Next”. 8) Click “Done”. - 15 - Rev. 1.00...
  • Page 16 SPP-R300 9) The SPP-R300 shortcut is produced. 10) Clicking the shortcut for 2 seconds brings up the function folder. Click “Connect”. 11) The Pass Key window appears (if the 12) Input the Pass Key and click “Enter” SPP-R300 security function is enabled).
  • Page 17 SPP-R300 13) The shortcut changes to show a green indicator as Shown below. The connection is complete when the BT LED of the SPP-R300 turns on. - 17 - Rev. 1.00...

  • Page 18: Connecting With A Mobile Compia Pda (Device: M3, Os: Wince 5.0)

    SPP-R300 4-4 Connecting with a Mobile Compia PDA (Device: M3, OS: WinCE 5.0) 1) Click the icon. 2) Click ”BT On”. 3) Click the icon. 4) Click ”BT Manager”. - 18 - Rev. 1.00...
  • Page 19 SPP-R300 5) Click ”Find All Devices”. 6) Click the ”Next” button. 7) Click “Refresh”. 8) Click the SPP-R300 from the Bluetooth devices in the search list, and click “Next”. - 19 - Rev. 1.00...
  • Page 20 SPP-R300 9) Select BIXOLON-SPP and click “Next”. 10) Click “Connect” 11) Click ”My favorite device”. 12) Clicking the shortcut for 2 seconds brings up the function folder. Click “Connect”. - 20 - Rev. 1.00...
  • Page 21 SPP-R300 security function is enabled). 15) Input the Pass Key and click “Enter” 16) The “Connection Established” message (Default Pass Key: 0000) appears, and the connection is complete when the BT LED of the SPP-R300 turns on. - 21 - Rev. 1.00...
  • Page 22 SPP-R300 17) The connection is complete when the shortcut changes to show a green indicator as shown below. - 22 - Rev. 1.00...

  • Page 23: Connecting With An Innoteletek Pda (Device: Mc3000, Os: Wince 4.2)

    SPP-R300 4-5 Connecting with an InnoTeletek PDA (Device: MC3000, OS: WinCE 4.2) 1) Click the ”sppui” icon. 2) Click the icon. 3) Click the “Inquiry” button. 4) Select SPP-R300 and click “OK” button. - 23 - Rev. 1.00...
  • Page 24 SPP-R300 5) The PIN Code window(Select channel) 6) Input the PIN Code and click “Enter”. appears (if the SPP-R300 security function (Default: 0000) is enabled). 7) The Serial port is registered as COM7. 8) Click the ”My Computer” icon. - 24 -...
  • Page 25 SPP-R300 9) Click “Storage”. 10) Click ”BTPrinter”. 11) Click “InnoPrinter”. 12) The “Port Opened” Status message appears, and the connection is complete when the BT LED of the SPP-R300 turns on. Click the “TEXT” button. - 25 - Rev. 1.00...
  • Page 26 SPP-R300 13) Enter text to be printed in the Text window and click the “Print” button. The text is printed by the Printer(SPP-R300). - 26 - Rev. 1.00...

  • Page 27: Connecting With A Widefly Pda (Device: Wf35, Os: Wince 5.0)

    SPP-R300 4-6 Connecting with a Widefly PDA (Device: WF35, OS: WinCE 5.0) 1) Click the icon then “Settings”. 2) Click “Control Panel”. 3) Click “Bluetooth Device Properties”. 4) Click Bluetooth button. (select ON if Bluetooth is turned on automatically for every boot up of PDA.)
  • Page 28 SPP-R300 5) Click “Search” page then “Search” button. 6) Enter PIN code (default “0000”) and Click “OK”. 7) SPP-R300 is searched with “Serial Port”. 8) Enter PIN code (default “0000”) and Click “OK”. service listed. Click “Add service”. - 28 -...
  • Page 29 9) Press “OK” to activate “Serial Port” service. 10) Select virtual local COM port for applications and click “OK”. (e.g. COM port 6). 11) SPP-R300 is paired with WF35 and virtual local COM port is activated. - 29 - Rev. 1.00...

  • Page 30: Connecting With Bluetooth Dongle (Bluesoleil Ivt Stack)

    SPP-R300 4-7 Connecting with Bluetooth Dongle (BlueSoleil IVT Stack) 1) After purchasing Bluetooth Dongle, insert the CD in the PC and install Bluesoleil. 2) Connect Bluetooth Dongle to the USB port of the PC. 3) Click the Bluesoleil icon on the PC screen top.
  • Page 31 SPP-R300 6) Click right button of the mouse above the "IFX-BT Icon" and select the “Pair Device”. 7) Enter the PIN Code in the Bluetooth Passkey window. (Default Passkey: 0000) - 31 - Rev. 1.00...
  • Page 32 8) If the Passkey(PIN Code) is correct and pairing is completed, a red check symbol appears next to the SPP-R300 icon. 9) Click right button of the mouse above the "SPP-R300 Icon" and select the "Connect > Bluetooth Serial Port Service".
  • Page 33 12) When the connection is complete, the message pictured below appears at the bottom right of the PC screen. The COM port number shown in the message indicates the COM port via which the SPP-R300 and the PC are connected.

  • Page 34: Connecting With Bluetooth Dongle (Widcomm Stack)

    SPP-R300 4-8 Connecting with Bluetooth Dongle (Widcomm Stack) 1) After purchasing Bluetooth Dongle, insert the CD in the PC and install Bluesoleil. 2) Connect Bluetooth Dongle to the USB port of the PC. 3) Click the My Bluetooth Places icon on the PC screen top.
  • Page 35 SPP-R300 6) Select “Show all devices” and Click “Next”. 7) The program initiates a search for Bluetooth devices in the proximity. - 35 - Rev. 1.00...
  • Page 36 SPP-R300 8) Enter the PIN Code in the Bluetooth Passkey window. (Default Passkey: 0000) 9) If the Passkey(PIN Code) is correct and pairing is completed, a green check symbol appears next to the BIXOLON_SPP icon. Click “Configure” - 36 -...
  • Page 37 SPP-R300 11) Check COM Port 12) Click “Next” - 37 - Rev. 1.00...
  • Page 38 SPP-R300 13) Click “Finish”. 14) The shortcut changes to show a green indicator asshown below. The connection is complete when the BT LED of the SPP-R300 turns on. - 38 - Rev. 1.00...
