User's Manual
SPP-R300
Mobile Printer
Rev. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPP-R300 and is the answer not in the manual?

Questions and answers

Related Manuals for BIXOLON SPP-R300

Summary of Contents for BIXOLON SPP-R300

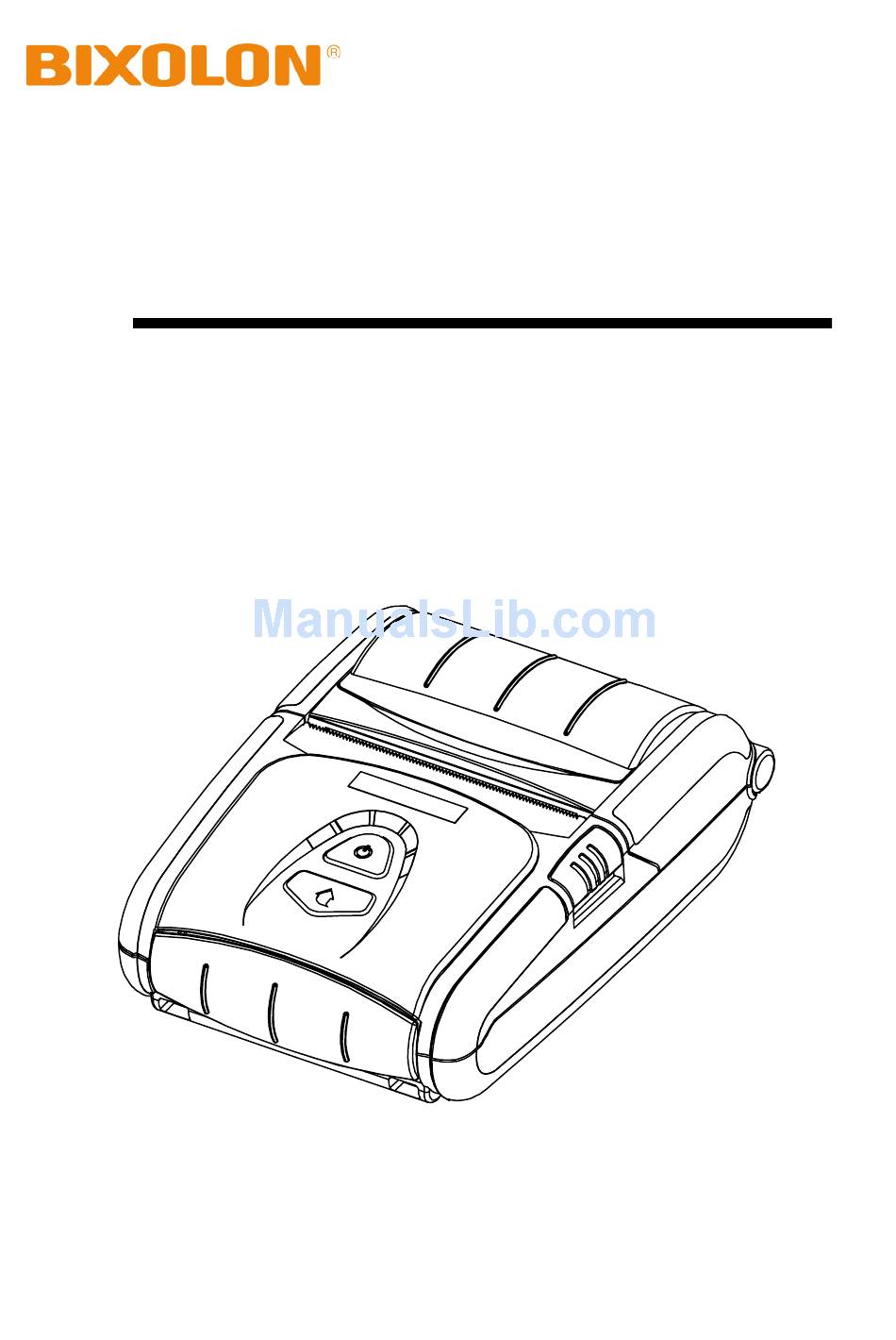

  • Page 1 User's Manual SPP-R300 Mobile Printer Rev. 1.00 http://www.bixolon.com...

  • Page 2: Table Of Contents

    SPP-R300 ■ Table of Contents ※ Manual Information & Usage Precautions··································································3 1. Content Confirmation ··································································································10 2. Product Part Names·····································································································11 3. Installation & Usage·····································································································12 3-1 Battery Installation ······························································································12 3-2 Battery Charging·································································································12 3-2-1 Battery Charging Usage ···············································································12 3-2-2 Cigarette Lighter Jack Charger (Optional) Usage·········································13 3-2-3 Quad Charger (Optional) Usage···································································13...

  • Page 3: Manual Information & Usage Precautions

    This manual provides information on each character code page that can be used with this product. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.

  • Page 4: Safety Precautions

    SPP-R300 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet.
  • Page 5 SPP-R300 CAUTION Violating following instructions can cause slight wound or damage the appliance. If you observe a strange smoke, odor or noise from Keep the desiccant out of children’s reach. the printer, unplug it before taking following measures. • If not, they may eat it.
  • Page 6 5. Do not directly connect the battery to an electrical power outlet not specified by BIXOLON or an automobile’s cigarette lighter jack. Doing so may result in overheating, combustion and/or explosion of the battery by over-current and/or over-voltage. 6. Do not heat the battery or place it near a fire. Doing so may melt insulation materials, damage the safety mechanism/equipment, and/or ignite the electrolytic solution.
  • Page 7 SPP-R300 10. Do not pierce the battery with a pointed object, such as nail or awl, or strike with a heavy object, such as a hammer, and take care not to step on the battery. There is a potential risk of battery overheating, combustion, and/or explosion caused by an internal short circuit.
  • Page 8 10. There is a risk of explosion when replacing with an incorrect battery. Only exchange it for another one of the same or equivalent model specified by BIXOLON. Insulate the used battery by attaching insulation tape to its port, and then dispose of the battery according to local regulations.

  • Page 9: Other Precautions

    BIXOLON Co., Ltd. is not legally liable for any damages resulting from the use of the information in this manual. BIXOLON Co., Ltd. and its affiliates are not legally liable (United States excluded) for any...

  • Page 10: Content Confirmation

    SPP-R300 1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged and/or missing. ※ Basic items SPP-R300 Battery Battery Charger Power Cord...

  • Page 11: Product Part Names

    SPP-R300 2. Product Part Names • Front Paper Cover Power Button Paper Feed Button Open Button MSR Cover • Rear Shoulder Strap Belt Strap Hole Connection Holes Battery Interface Cap Cable Connection Power Connection - 11 - Rev. 1.00...

  • Page 12: Installation & Usage

    4) Connect the battery charger to the power connector. ① CAUTION The printer may be seriously damaged if a battery charger not provided by BIXOLON is ② used. BIXOLON is not liable for such damage. WARNING Turn off the power before charging the battery for the printer.

  • Page 13: Cigarette Lighter Jack Charger (Optional) Usage

    4) Connect the battery charger to the power connector. ② CAUTION The printer may be seriously damaged if a ① battery charger not provided by BIXOLON is used. BIXOLON is not liable for such damage. WARNING Turn off the power before charging the battery for the printer.
  • Page 14 SPP-R300 3-2-3-2 Battery Charging 1) Insert the battery into the Quad charger as shown in the figure on the left. 2) Gently slide the battery until it reaches the bottom of the charger. 3) Charging starts as soon as the battery is completely inserted.

  • Page 15: Paper Installation

    SPP-R300 3-3 Paper Installation 1) Press the Open button to open the paper cover. 2) Insert the paper as shown in the image. (Remove any remaining core of a fully used paper roll.) 3) Take care to align the paper correctly.

  • Page 16: Belt Strap Usage

    SPP-R300 3-4 Belt Strap Usage 1) Insert the belt strap screw into the belt strap hole. Belt Strap Coin 2) Use a coin to tighten the belt strap screw as shown in the image. Belt 3) Undo the belt strap Velcro.

  • Page 17: Protective Case (Optional) Usage

    SPP-R300 3-5 Protective Case (Optional) Usage 1) Open its top cover. 2) Insert your printer into the protective case as shown in the figure on the left. 3) Close the Velcro. Belt 4) Using the clip in the rear of the leather case, affix the case to a belt in the same way as using a belt strap.

  • Page 18: Shoulder Strap Usage

    SPP-R300 3-6 Shoulder Strap Usage 1) Connect the clips of the shoulder strap to the printer as shown in the figure on the left. 2) Connect the clips of the leather case as shown in the figure on the left.

  • Page 19: Car Cradle (Optional) Usage

    SPP-R300 3-7 Car Cradle (Optional) Usage 1) Insert the printer as shown in the figure on the left, and then press it in the direction of the arrows. 2) To remove the printer, pull the lever under the car cradle forward.

  • Page 20: Control Panel Usage

    SPP-R300 3-8 Control Panel Usage • Power Button This button is used to turn the printer on/off. 1) To turn the printer on, press and hold the button for approximately two seconds when the printer is off. 2) To turn the printer off, press and hold the button for approximately two seconds when the printer is on.

  • Page 21: Msr Usage

    SPP-R300 3-9 MSR Usage 1) Press the MSR cover to open. 2) Insert the card as shown in the image and swipe in the direction of the arrow. (can be done in both directions) 3) When finished using, press the MSR cover to close it.
  • Page 22 SPP-R300 • Self-Test Sample (For Bluetooth) Boot loader version : VER v2.02 20100817 Firmware version : V01.00 STOB 042211 BT embedded Bluetooth firmware version : 3.0.0 Bluetooth BD address : 001901223194 - Auth. & Encry. are enable - Connection Mode = 2...
  • Page 23 Not available bluetooth WLAN firmware version : Ver 0.1 WLAN MAC address : cc7a00010877 - System Name : SPP-R300 - Network Mode : Adhoc - Encryption : None - ESSID : BIXOLON_adhoc - DHCP : Disabled - IP : 192.168.1.1 - Netmask : 255.255.255.0...

  • Page 24: Label Printing Function

    SPP-R300 5. Label Printing Function 5-1 Label Function Setting Label paper and black mark paper available at the label mode. • Setting Operations 1) Turn on the printer power. 2) Open the paper cover and press and hold down the paper feed button for longer than two seconds.

  • Page 25: Peripherals Connection

    SPP-R300 6. Peripherals Connection This product can communicate with peripherals by using Bluetooth, wireless LAN or external interface cable (USB or serial cable). 6-1 Bluetooth & Connection Wireless LAN 1) The printer can be connected to devices equipped with Bluetooth communication capacity (PDAs, PCs, etc.).

  • Page 26: Printer Cleaning

    SPP-R300 7. Printer Cleaning If the interior of the printer is dusty, print quality can decline. In such a case, follow the instructions below to clean the printer. CAUTION • Make sure to turn the printer power off prior to cleaning.

  • Page 27: Appendix

    SPP-R300 8. Appendix 8-1 Specifications Item Description Printing Method Thermal printing Printing Speed 100 mm/sec Resolution 203 DPI Paper Supply Easy paper loading Mode Font A: 12 × 24 Character Size Font B: 9 × 17 Font C: 9 × 24...

  • Page 28: Certification

    <Warning> The battery has the potential risk of overheating, fire and/or explosion. To avoid such risks, observe the following instructions: • A visibly swollen battery may be dangerous. Contact BIXOLON or your local dealer. • Only use an eligible charger.
  • Page 29 SPP-R300 FCC compliance Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
