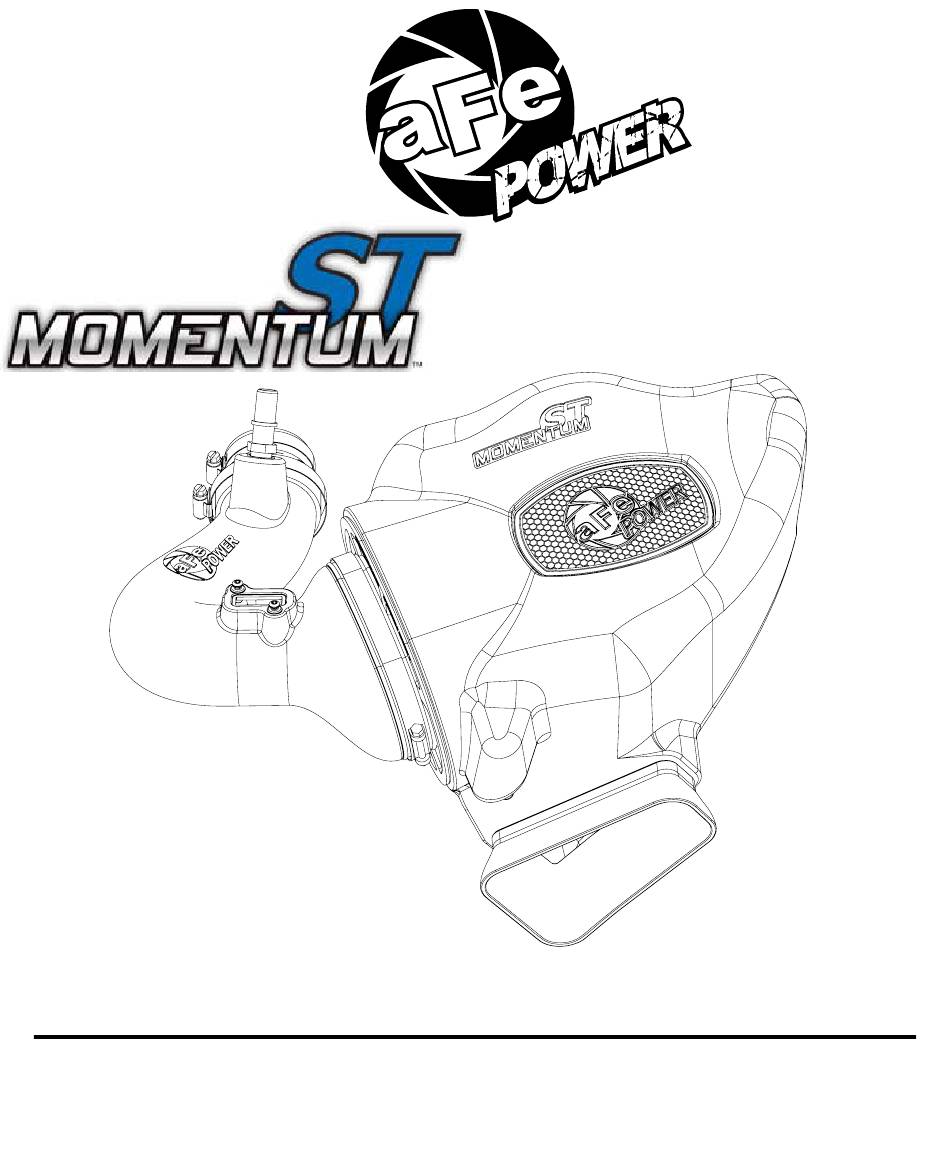

- Page 1 ® advanced FLOW engineering Momentum ST Cold Air Intake System Instruction Manual P/N: 50-40007D / 50-40007R Make: Chevrolet Model: Camaro Year: 2016-2020 Engine: L4-2.0L Turbo...
- Page 2 ® • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7185. • Ensure you have all necessary tools before proceeding. •...
- Page 3 A1/A2 aFepower.com Page 3...
- Page 4 ® REMOVAL Figure A Refer to Figure A for Step 1 Step 1: Disconnect the braided hose 1 from the intake tube. Disconnect the MAF 2 sensor and pull off the wire harness clip 3 from the intake tube. Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for Step 2 Step 2: Use an 8mm nut driver to loosen the factory clamp 4 at the turbo. Remove the factory intake assembly by pulling up to release air box from its mounting grommets. aFepower.com Page 5...
- Page 6 ® REMOVAL Figure C Refer to Figure C for Step 3 Step 3: Make sure the mounting grommets 5 are still in the chassis mounting tabs. If they pulled out and are stuck in the lower half of the air box, remove them from the air box and insert them back on the chassis mounting tabs.
- Page 7 INSTALL Figure D Refer to Figure D for Steps 4-5 Step 4: Using a Torx 20 driver, remove the mass air flow sensor 6 from the upper half of the air box and install it on the aFe intake tube using the two supplied M4 screws. Step 5: Install the supplied aluminum vent fitting 7 into the aFe intake tube using a 20mm wrench or adjustable wrench.
- Page 8 ® INSTALL Figure E Refer to Figure E for Steps 6-7 Step 6: Install the supplied air inlet scoop 8 into the aFe air box. Step 7: Use the provided plug 9 to close additional air inlet if you want to completely seal the air box. Best performance gain is obtained by having more air flow (no plug).
- Page 9 INSTALL Figure F Refer to Figure F for Step 8 Step 8: Slide the aFe filter and clamp into the aFe housing and push it in until it locks into place. Do not tighten clamp at this time. aFepower.com Page 9...
- Page 10 ® ® INSTALL Figure G Refer to Figure G for Step 9 Step 9: Install the housing assembly into the vehicle by pushing down air box pins into the rubber grommets. Make sure the pins are completely through the mounting grommets. Page 10...
- Page 11 REMOVAL Figure H Refer to Figure H for Step 10 Step 10: Install the supplied silicone coupler 10 with the supplied small clamp onto the turbo and tighten clamp. Install the supplied large clamp on the coupler. Page 11 aFepower.com...
- Page 12 ® INSTALL Figure I Refer to Figure I for Steps 11-12 Step 11: Slide the aFe intake tube into the coupler and then the air filter. Tighten all clamps. Step 12: Connect the mass air flow sensor 11 and the braided hose 12 . Page 12...
- Page 13 INSTALL Figure J Refer to Figure J for Step 13 Step 13: Your installation is now complete. Thank you for choosing aFe Power! NOTE: Check all bolts, clamps, and connectors after 200 miles. aFepower.com Page 13...
- Page 14 Page left blank intentionally...
- Page 15 Page left blank intentionally aFepower.com...
- Page 16 ® advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 https://afepower.com/contact P/N: 06-81130...
