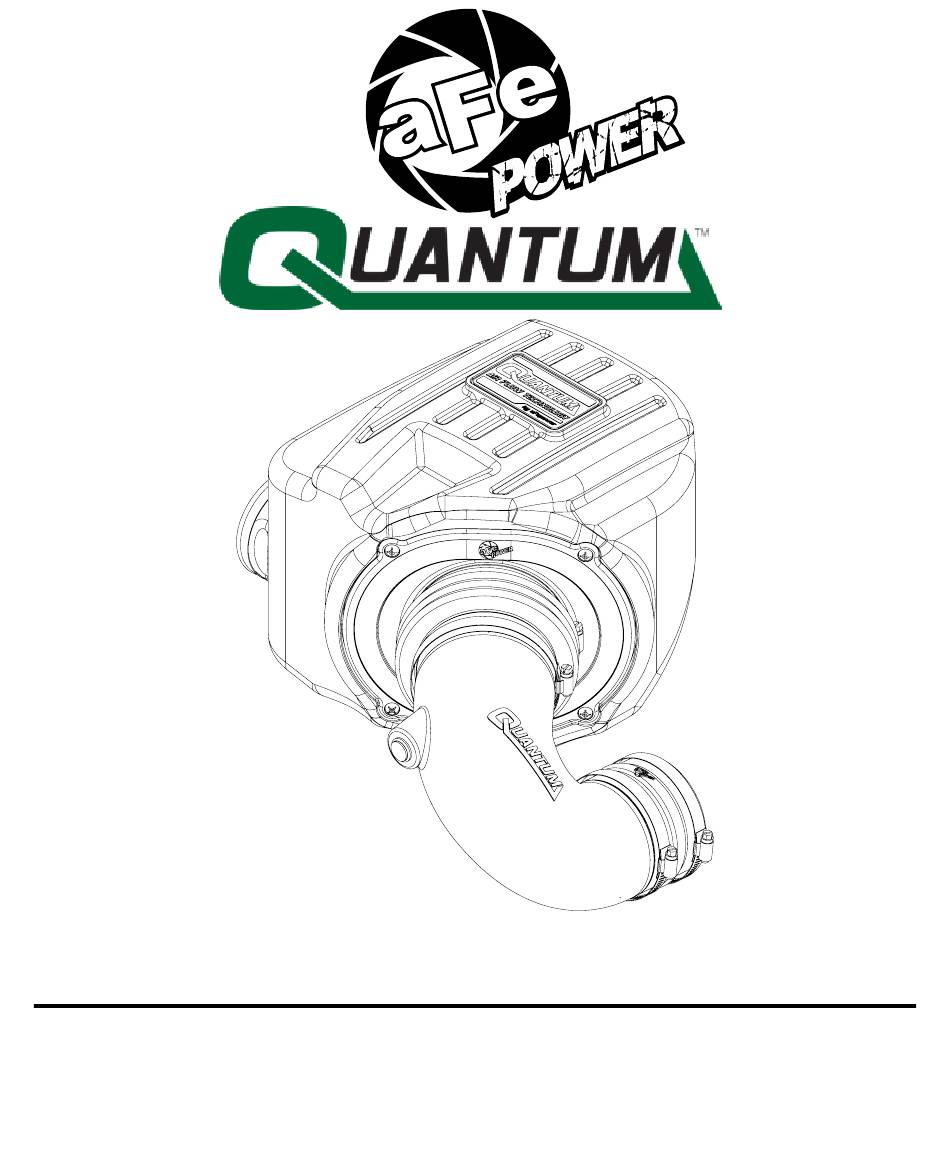

- Page 1 ® advanced FLOW engineering Quantum Air Intake Instruction Manual P/N: 53-10001D / 53-10001R Make: Dodge Model: RAM 2500/3500 Year: 1994-2002 Engine: L6-5.9L (td) Cummins...
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7100 or e-mail at tech@afepower.com. • Ensure you have all necessary tools before proceeding. •...
- Page 3 A1/A2 aFepower.com Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for Step 1 Step 1: Use an 8mm nut driver to loosen the OE clamps 1 at the turbo and the airbox. Remove the OE intake tube 2 . Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for Step 2 Step 2: Un-clip the upper half of the airbox and remove upper half and air filter. aFepower.com Page 5...
- Page 6 REMOVAL Figure C Refer to Figure C for Step 3 Step 3: Remove the lower half of the airbox 3 by pulling up to release airbox from its mounting grommets 4 . Page 6...
- Page 7 REMOVAL Figure D Refer to Figure D for Step 4 Step 4: Make sure plastic inserts 5 are still on the mounting pins. If they pulled out and are stuck in the lower half of the airbox grommet, remove them and insert them back on the mounting pins. Remove the plastic air duct 6 that goes through the fender if equipped.
- Page 8 INSTALL Figure E Refer to Figure E for Step 5 Step 5: Remove all three grommets 7 from the lower half of the airbox and install them onto the aFe airbox. Page 8...
- Page 9 INSTALL Figure F Refer to Figure F for Step 6 Step 6: Install the trim seal 8 on the opening of the aFe airbox. aFepower.com Page 9...
- Page 10 INSTALL Figure G Refer to Figure G for Steps 7-8 Step 7: Slide the aFe filter into the aFe housing. Install the aFe filter using a #2 Phillips screwdriver. Tighten all (x4) screws. Step 8: Install the supplied bellows coupler 9 onto the air filter using the supplied #80 clamp 10 . Tighten the clamp.
- Page 11 INSTALL Figure H Refer to Figure H for Step 9 Step 9: Install the housing assembly into the vehicle by pushing down into the plastic pins. Make sure pins are completely through the mounting grommets. aFepower.com Page 11...
- Page 12 INSTALL Figure I Refer to Figure I for Step 10 Step 10: Install the aFe coupler 11 onto the turbo using the supplied #064 clamp 12 . Tighten the clamp. Page 12...
- Page 13 INSTALL Figure J Refer to Figure F for Step 11 Step 11: Remove the filter minder and grommet 13 from the upper half of the stock air box. Install the grommet into the aFe intake tube and then push in the filter minder. If you choose not to use the filter minder, just plug off the hole with the provided grommet and cap.
- Page 14 INSTALL Figure K Refer to Figure K for Step 12 Step 12: Install the provided #064 clamp 14 onto the coupler at the turbo and #072 clamp 15 onto the filter coupler. Page 10...
- Page 15 INSTALL Figure L Refer to Figure L for Step 13 Step 13: Slide the aFe intake tube into the coupler at the filter, then install the intake tube into the coupler at the turbo. Tighten all clamps with an 8mm nut driver. Check all the components are tight and secure.
- Page 16 Page left blank intentionally Page 12...
- Page 17 Page left blank intentionally aFepower.com Page 13...
- Page 18 Pro DRY S Air Filter Pro 5R Air Filter Blue Squeeze Restore Kit Pro DRY S Restore Kit P/N: 21-90098 P/N: 23-91129 P/N: 90-59999 P/N: 90-50501 Stainless Steel Intercooler w/ Tubes Exhaust Ported Manifold Intake Manifold Exhaust Manifold P/N: 46-20062 (GT Series) P/N: 46-10051 (‘94-’98) P/N: 46-32019 (w/ T4 Flange) P/N: 46-40044 (‘94-’98)
-
Page 19: Warranty
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •... - Page 20 advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7134 E-Mail:Tech@aFepower.com P/N: 06-81043...
