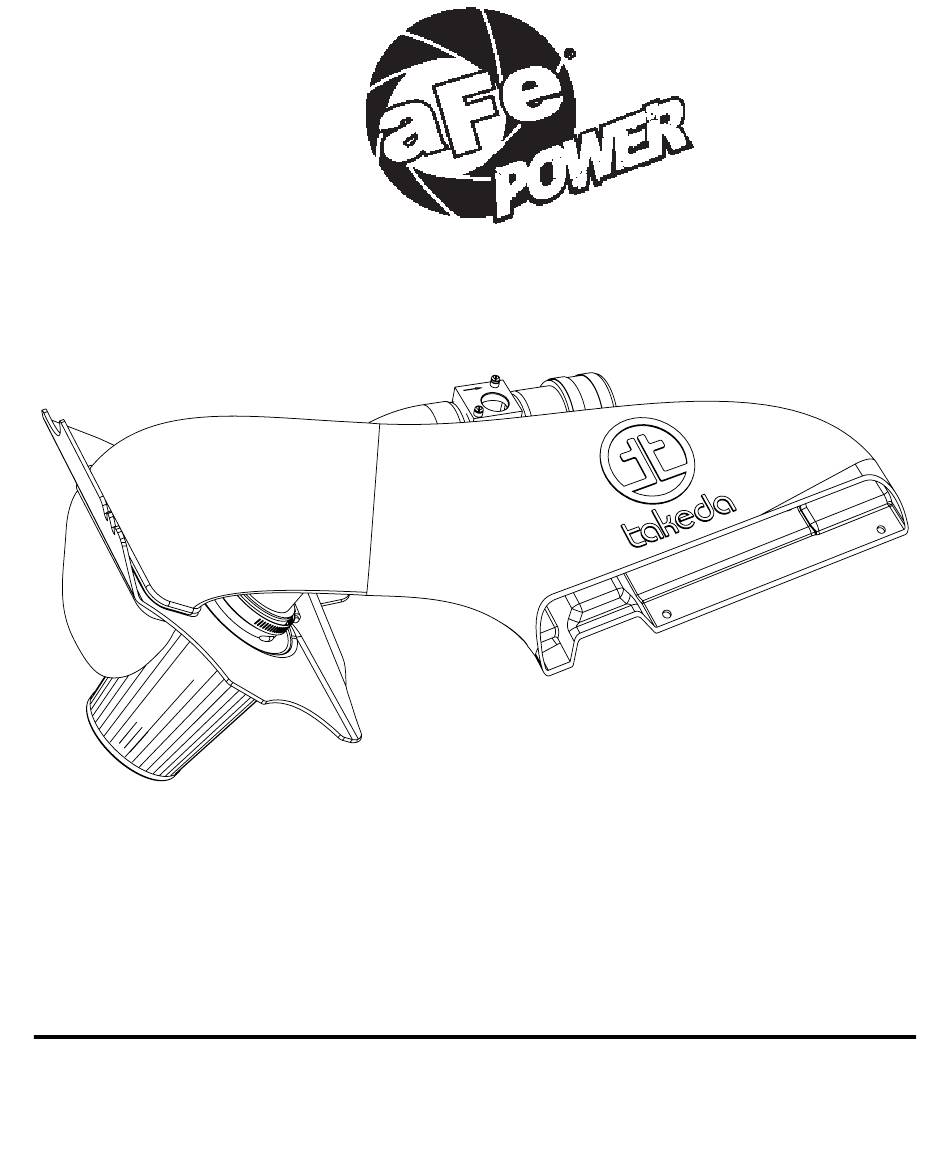

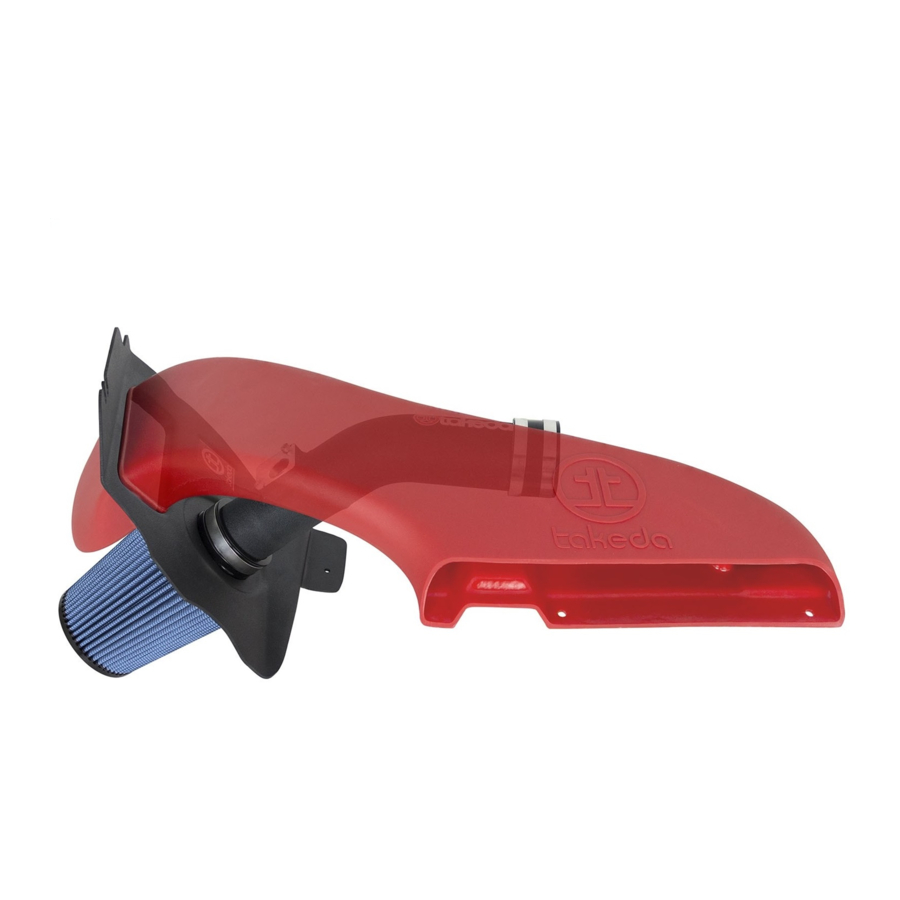

- Page 1 FLOW engineering Stage-2 Air Intake Instruction Manual P/N: TA-4306B-R / TR-4306B-D Make: Subaru Model: WRX STI Year: 2015-2017 Engine: H4-2.5L (t)
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7100. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
- Page 3 A1/A2 aFepower.com Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for Steps 1-2 Step 1: Remove the two push pins retaining the OE air scoop. Do not discard push pins, will be reused later 1 . Step 2: Remove OE air scoop from vehicle. Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for Steps 3-7 Step 3: Unplug MAF sensor harness from MAF sensor 2 . Step 4: Remove the two 10mm 3 nuts from the bracket on the OE air box. Do not discard nuts, will be reused.
- Page 6 INSTALL Figure C Refer to Figure C for Step 8 Step 8: Pre-install the Takeda air filter though the Takeda housing, assure filter retain groves snap into housing. Page 6...
- Page 7 INSTALL Figure D Refer to Figure D for Step 9 Step 9: Install the Takeda housing into the vehicle and secure it using the OE nuts and bolt. aFepower.com Page 7...
- Page 8 INSTALL Figure E Refer to Figure E for Step 10-11 Step 10: Transfer MAF sensor from OE air box to Takeda intake tube using provided hardware. Step 11: Slide the provided coupling with clamps onto Takeda intake tube. Do not tighten clamps yet.
- Page 9 INSTALL Figure F Refer to Figure F for Steps 12-14 Step 12: Slide the intake tube into the air filter then side the coupling onto the turbo inlet tube. Step 13: Alight the intake tube and assure filter retain groves are snapped onto the housing then tighten all clamps.
- Page 10 INSTALL Figure G Refer to Figure G for Steps 15-17 Step 15: Insert the Takeda air scoop though the housing opening, assure it snaps in to the grooves. Step 16: Re-install the OE push pins to secure the Takeda air Scoop. Step 17: Make sure all bolt and clamps are tight, installation is now complete.
- Page 11 Page left blank intentionally Page 11...
- Page 12 Page left blank intentionally Page 12...
- Page 13 Page left blank intentionally Page 13...
- Page 14 Pro DRY S Air Filter Pro 5R Air Filter Takeda Restore Kit Blue Squeeze Restore Kit P/N: TF-9024D P/N: TF-9024R P/N: TP-7015C P/N: 90-50501 Blue Aerosol Restore Kit aFe Gloves aFe LED Flashlight Takeda Tee P/N: 90-50001 P/N: 40-10149 P/N: 40-10131 P/N: 40-30332 (M) 40-30333 (L) 40-30334 (XL)
-
Page 15: Warranty
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is nontransferable. • Proof of purchase of the aFe product is required for all warranty claims. •... - Page 16 advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7155 • TECH: 951.493.7100 E-Mail:Tech@aFepower.com P/N: 06-80745...
