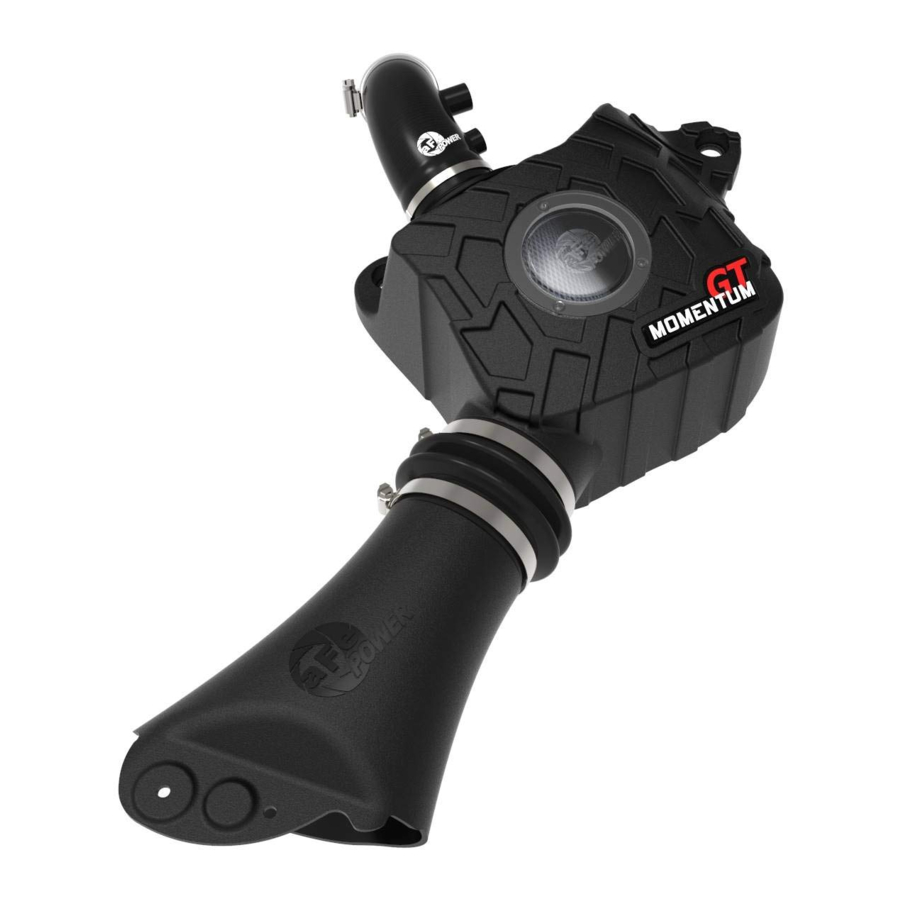

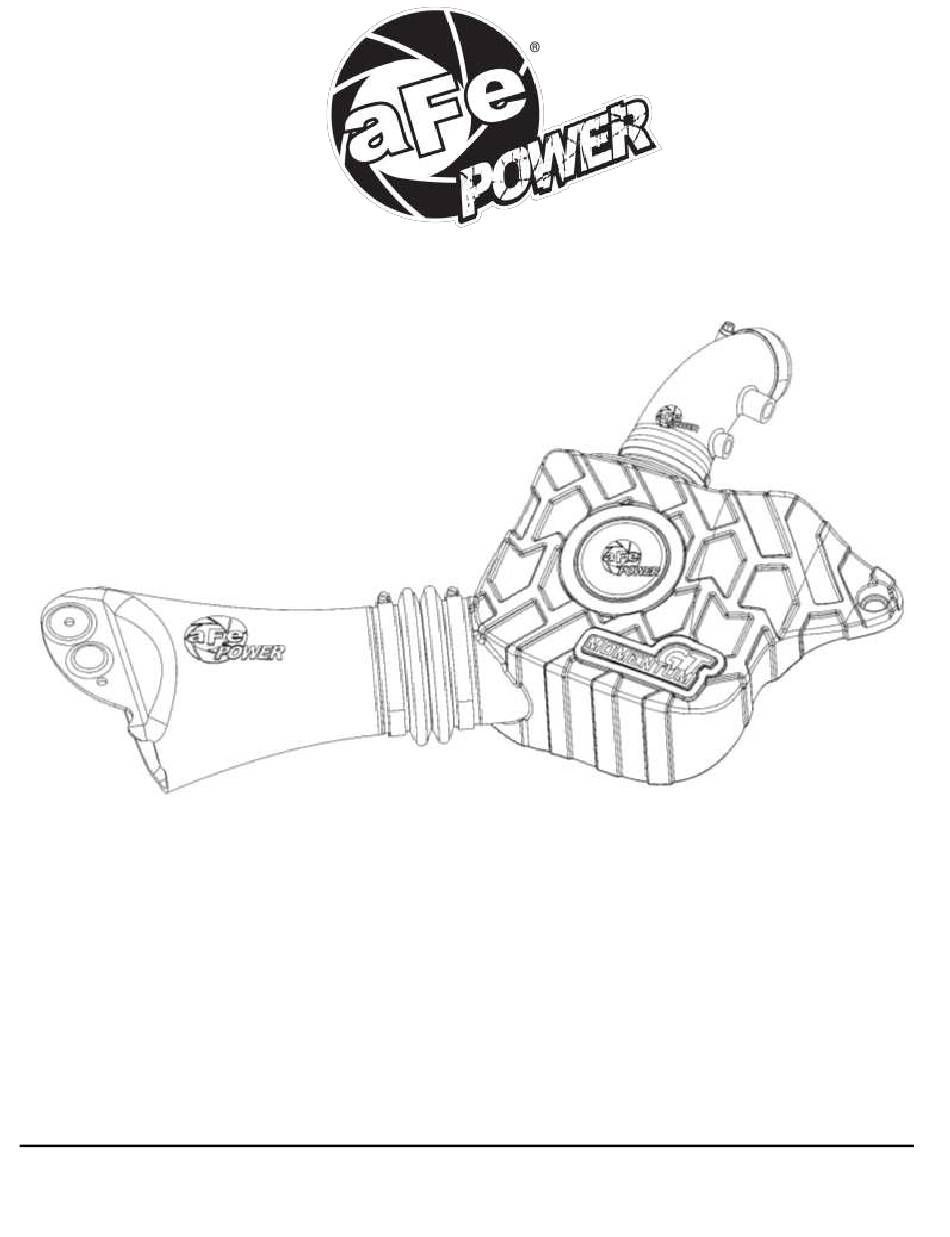

- Page 1 FLOW engineering Momentum GT Cold Air Intake System Instruction Manual P/N: 50-70046R / 50-70046D _____________________ Make: SUZUKI Model: JIMNY Year: 2019-2020 Engine: L4-1.5L...
- Page 2 • Do not attempt to work on your vehicle when the engine is hot. • Retain factory parts for future use. Label Qty. Description Part Number Air Filter (Pro 5R) For 50-70046R 24-91155 Air Filter (Pro DRY S) For 50-70046D 21-91155...
- Page 3 A1/A2 Page 3...
- Page 4 Step 1: Remove the two screws securing the inlet scoop. Those screws will be reused to secure the aFe POWER scoop. Step 2: Remove the screw securing the factory housing to the engine. This screw will be reused to secure the aFe POWER housing. Page 4...
- Page 5 Refer to Figure B for Steps 3-5 Step 3: Remove the second screw securing the factory housing to the mounting bracket. This screw will also be reused to secure the aFe POWER housing. Step 4: Using pliers, unclip the harness from the factory housing.
- Page 6 REMOVAL Figure C Refer to Figure C for Steps 6-7 Step 6: Disconnect the harness from the temperature sensor on the factory intake tube. Step 7: Pull the metal tube out of the factory intake tube. Page 6...
- Page 7 REMOVAL Figure D Refer to Figure D for Steps 8-9 Step 8: Remove the full factory air intake system as one piece by pulling the factory intake tube off the throttle body and the factory housing off its grommet. Step 9: Make sure the grommet under the housing stays in position. This mount will be reused for the aFe POWER housing.
- Page 8 Step 10: Transfer the two grommets with metal sleeves from the factory housing to the aFe POWER Housing. Step 11: Slide the aFe POWER air filter into the aFe POWER housing and push it in until it locks into place. Install the clamp on the filter, but do not tighten the clamp at this time.
- Page 9 INSTALL Figure F Refer to Figure F for Step 12 Step 12: Remove the temperature sensor from the factory tube and install it into the aFe POWER tube. Page 9...
- Page 10 Refer to Figure G for Steps 13-14 Step 13: Connect the aFe POWER tube to the filter. Step 14: Install the smaller clamp on the aFe POWER tube end, and the filter clamp on the filter end but do not tigthen at this time.
- Page 11 Refer to Figure H for Steps 15-16 Step 15: Install the aFe POWER housing and tube assembly in the vehicle. Slide the tube over the throttle body then press the housing peg into the grommet from steps 8 and 9.
- Page 12 Figure I Refer to Figure I for Steps 17-19 Step 17: Secure the aFe POWER housing using the factory screws removed at step 2 and 3. Step 18: Tighten all clamps. Step 19: Reconnect the harness to the temperature sensor.
- Page 13 Figure J Figure H Refer to Figure J for Steps 20-21 Step 20: Install the bellow coupling onto the opening of the aFe POWER housing. Step 21: Place the clamps on the coupling but do not tighen yet. Page 13...
- Page 14 Figure K Refer to Figure K for Steps 22-24 Step 22: Install the aFe POWER scoop into the bellow coupling. Step 23: Secure the scoop to the fender using the two screws removed at step 1. Step 24: Tighten all clamps.
- Page 15 INSTALL INSTALL Figure L Refer to Figure L for Step 25 Step 25: Verify all clamps and connections are secured. Your installation is now complete. Thank you for choosing aFe POWER! Page 15...
- Page 16 PAGE LEFT BLANK INTENTIONALLY Page 16...
- Page 17 PAGE LEFT BLANK INTENTIONALLY Page 17...
- Page 18 Pro DRY S Air Filter Pro 5R Air Filter Pre-Filter Sprint Booster V3 P/N: 21-91151 P/N: 24-91151 P/N: 28-10083 P/N: 77-17002 Pro Dry S Restore Kit Pro 5R Restore Kit Flashlight LED Mechanic Gloves (L) P/N: 90-50500 P/N: 90-50501 P/N: 40-10202 P/N: 40-10149 To purchase any of the items above, view airflow charts, dyno graphs, photos, and video;...
-
Page 19: Warranty
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •... - Page 20 advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7185 E-Mail: Tech@aFepower.com P/N: 06-81368...
