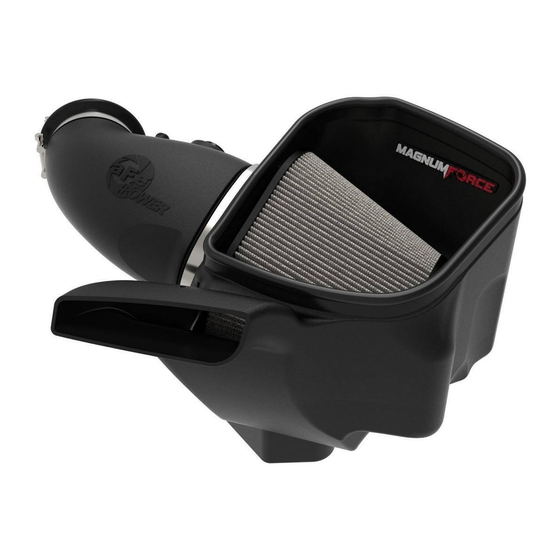

- Page 1 Magnum FORCE Stage-2 Cold Air Intake System Instruction Manual P/N: 54-13063D / 54-13063R _____________________________ Make: Jeep Model: Grand Cherokee (WK2) SRT Year: 2012-2021 Engine: V8-6.4L Make: Dodge Model: Durango SRT Year: 2018-2021 Engine: V8-6.4L...
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7185. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
- Page 3 A1/A2 Page 3...
- Page 4 REMOVAL REMOVAL Figure A Refer to Figure A for Steps 1-3 Step 1: Disconnect the temperature sensor. Step 2: Using an 8mm nut driver, loosen the hose clamps at the throttle body. Step 3: Remove the driver’s side valve cover. Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for Steps 4-5 Step 4: Disconnect the crankcase vent (CCV) line from the engine and pull the hose away from the engine. This hose will be replaced. Step 5: Remove the factory intake. Carefully, pull the factory intake tube away from the throttle body and pull up on the factory airbox.
- Page 6 REMOVAL Figure C Refer to Figure C for Step 6 Step 6: Remove the factory block off plate. Use a panel popper to remove the two (2) pins and three (3) clips from the factory trim seal. Page 6...
- Page 7 INSTALL Figure D Refer to Figure D for Step 7 Step 7: Install the supplied coupling and clamps onto the throttle body. Do not tighten the clamps. Page 7...
- Page 8 INSTALL Figure E Refer to Figure E for Step 8 Step 8: Transfer the three (3) factory grommets from the factory airbox to the aFe POWER housing. Page 8...
- Page 9 Refer to Figure F for Steps 9-11 Step 9: Install the supplied air filter into the aFe POWER housing. Place the air filter into the large opening at the top, then slip the air filter mouth into the oval opening on the aFe POWER housing, making sure the air filter’s lip locks into place.
- Page 10 POWER intake tube by pushing it into the fitting and rotating clockwise quarter-turn, keeping it from sliding out. Step 14: Insert the aFe POWER intake tube into the pre-assembled aFe POWER housing and air filter. Do not tighten the clamp at this time.
- Page 11 INSTALL Figure H Refer to Figure H for Step 15 Step 15: Install the supplied hose and one (1) supplied clamp onto the engine’s CCV opening. Page 11...
- Page 12 Refer to Figure I for Steps 16-18 Step 16: Install the assembled aFe POWER intake into the engine bay by gently pushing the housing in to the three (3) mounting pins. Slide the aFe POWER intake tube into the coupling at the throttle body.
- Page 13 Step 21: Re-install the factory valve cover. Step 22: Re-attach the factory trim seal from Step 6 and attach to the aFe POWER housing. Step 23: Make sure all components and connections are secure. Your installation is now complete. Thank you for choosing aFe POWER! NOTE: Check all bolts, clamps, and connectors after 100-200 miles.
- Page 14 Page left blank intentionally. Page 14...
- Page 15 Page left blank intentionally. Page 15...
- Page 16 252 Granite Street Corona, CA 92879 https://afepower.com/contact 8/9/2021 JTP...
