Perlesmith PSTVS01 Instruction Manual page 2

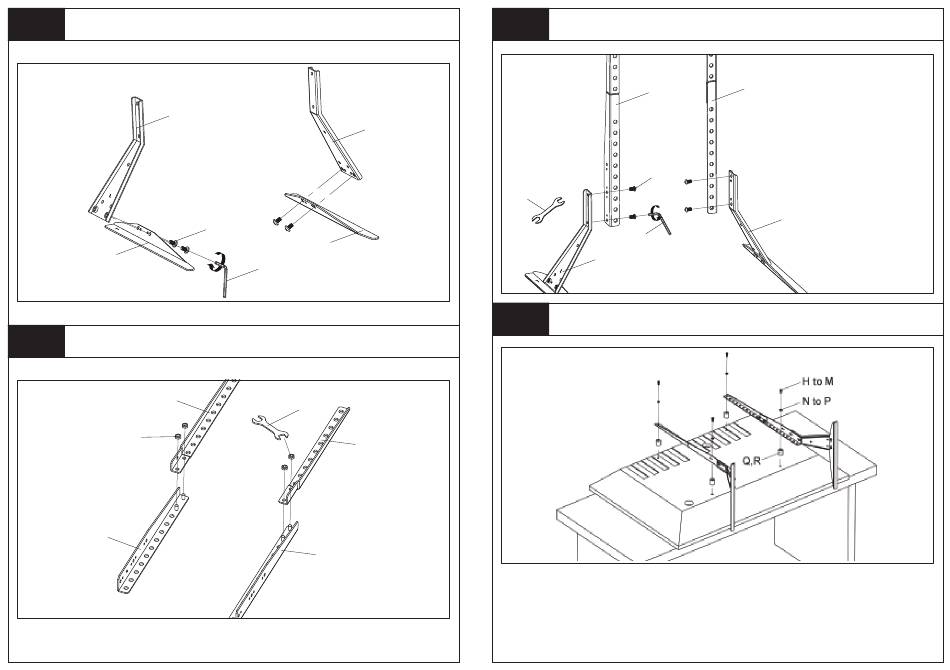

Step 1 Connect the Base Plates to Junction Plates
A2
A1
Connect the TV Brackets
Step 2
B4
E
B3
B2
C
B1
F
G
A4
A3
3
Step 3 Secure the TV Brackets Assembly to Junction Plates
A3
C
G
F
A2
Secure the TV Brackets to the Back of TV
Step 4
First of all, make sure the diameter and length of the bolts(H,l,J,K,L,M) your TV
requires. Once you have determined the correct diameter and length, you will thread
the bolts into the TV using the correct washers(N,O,P). Use the Spacers(Q,R) only if
the bolts are too long.
B3
B2
4
