Perlesmith PSTVS01 Instruction Manual

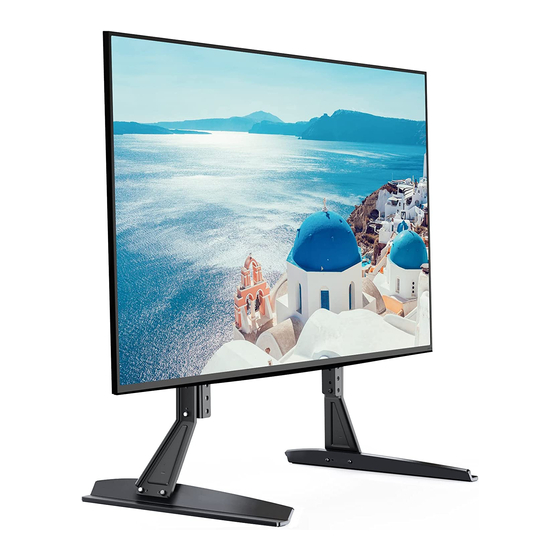

Table Top TV Stand
Instruction Manual
Thank you for choosing this Perlesmith product! At Perlesmith we
strive to provide you with the best quality products and services in
the industry. Please share your experience of our product with
others at www.perlesmith.com/pages/reviews if you are satisfied.
Should you have any issues, please don't hesitate to contact us.
Technical Support:
1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
supportus@perlesmith.com (US）
Website:
supportca@perlesmith.com (CA)
www.perlesmith.com
IMPORTANT SAFETY INFORMATION
• Please read through these instructions completely before attempting installation. If you do
not understand the instructions or have any concerns or questions, please contact customer
service at supportus@perlesmith.com (US）/supportca@perlesmith.com (CA).
• Check package contents against Supplied Parts and Hardware List to assure that all
components were received undamaged. Do not use damaged or defective parts. If you require
replacement parts, contact customer service at
supportus@perlesmith.com (US）/supportca@perlesmith.com (CA).
• Not all parts and hardware included will be used.
• Do not use this product for any purpose or in any configuration not explicitly specified in
this instruction. We hereby disclaim any liability for injury or damage arising from incorrect
assembly, incorrect mounting, or incorrect use of this product.
•Please check www.perlesmith.com for more products and company information.
Supplied Parts and Hardware
V3.0
(1)Base Plate-B1
Model:PSTVS01
Hardware for Attaching TV Brackets to TV
(1)Base Plate-A1 (1)Junction Plate-A2
(1)Junction Plate-B2
(4)M6 Nut2-E
(8)M6x10 Bolt-C
(4)M4x30 Bolt-I
(4)M4x12 Bolt-H
(4)M8x20 Bolt-L (4)M8x35 Bolt-M
(4)M8 Washer-P (4)M4 Washer-Q
(1)TV Bracket1-A3 (1)TV Bracket2-A4
(1)TV Bracket1-B3 (1)TV Bracket2-B4
(1)Allen Key-F (1)Wrench-G
(4)M6x20 Bolt-J (4)M6x35 Bolt-K
(4)M4 Washer-N (4)M6 Washer-O
(8)M6/M8 Spacer -R
