Perlesmith PGDSK1 Quick Start Manual

SINGLE SHELF WALL MOUNT
* WARNING! SEVERE PERSONAL INJURY AND PROPERTY DAMAGE CAN RESULT FROM IMPROPER INSTALLATION OR ASSEM-
BLY. READ THE FOLLOWING WARNINGS BEFORE BEGINNING.
*
If you do not understand the instructions or have any concerns or questions, please contact a qualified installer.
* Do not install or assemble if the product or hardware is damaged or missing. Not all parts and hardware included must be used. If you require
replacement parts, contact customer service at customerservice@perlegear.com.
* Do not attempt to install or assemble this product if the product or hardware is damaged or missing. The included hardware is designed for
use on vertical walls constructed of wood studs or concrete. A wood stud wall is defined as consisting of a minimum of 2x4 wooden studs (2"
wide by 4" deep) with a maximum of 5/8" drywall. The included hardware is not designed for use with metal studs or cinderblock walls. If
you're uncertain about the construction of your wall, then please consult a qualified contractor or installer for assistance. For a safe
installation, the wall you are mounting to must support 4 times the weight of the total load. If not, then the surface must be reinforced to meet
this standard. The installer is responsible for verifying that the wall structure and hardware used in any installation method will safely support
the total load.
*
Please check www.perlesmith.com for more products and company information.
WEIGHT CAPACITY
!
CAUTION!
USE WITH PRODUCTS LARGER THAN THE MAXIMUM WEIGHT AND SIZE MAY RESULT IN INSTABILITY CAUSING POSSIBLE
INJURY. USER MUST REMOVE TELEVISION OR OBJECT OFF THE BRACKET BEFORE ADJUSTING. NOT SUITABLE FOR A TV THAT
SURPASSES THE TELEVISION MAXIMUM WEIGHT CAPACITY AND RECOMMENDED DIAGONAL MEASURED TV SIZE!
MODEL: PGDSK1
WARNING!
7.5 kg
16.5 lbs
MAXIMUM WEIGHT CAPACITY
Tools Needed
V4
Stud Pencil Level Drill
Finder
A Wall plate
X1

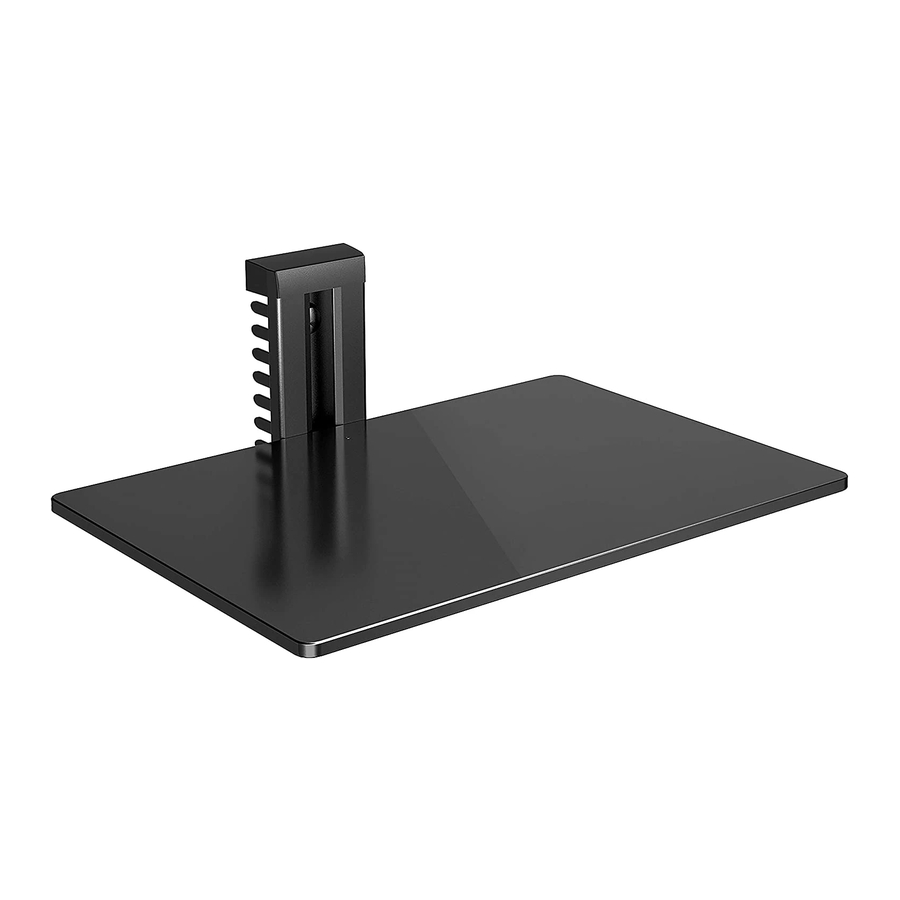

D Glass Shelf
X1

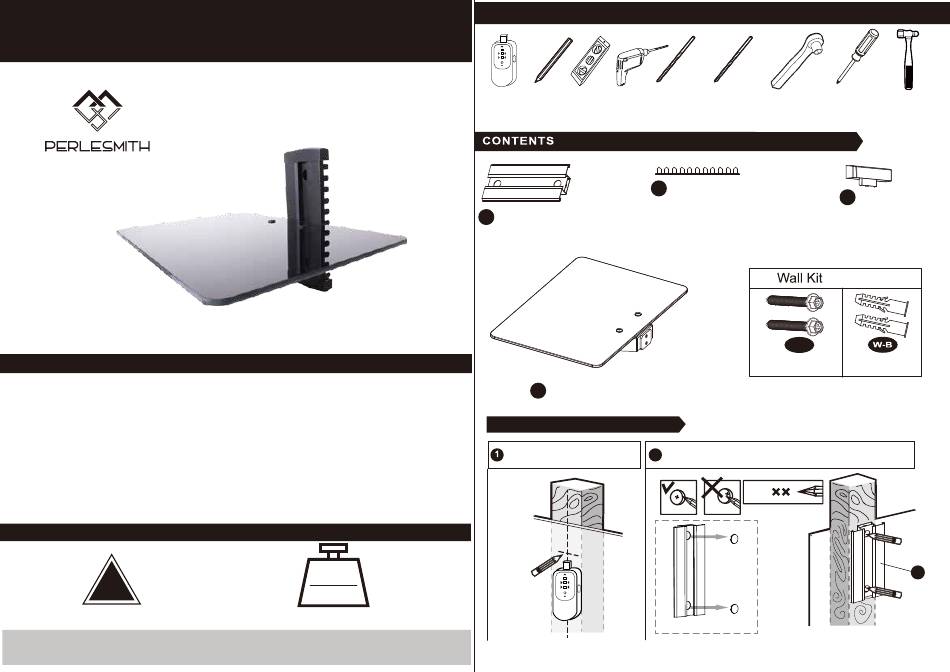

1a. MOUNT WALL PLATE ON SINGLE STUD
Find the stud by the stud
finder and mark the center.
1/8 in. 3/8 in.
3/8 in.
(3.2 mm) (10 mm)
(10 mm)
Wood Drill Concrete Drill
B
Cable manager
X2
W-A
Lag Bolt
2
Use wall plate (A) to mark two mounting hole locations.
2
Remove covers and save
Screw
Hammer
driver
End cap
C
X2
Concrete Anchor
A
1
