Manual No.:ALPE12EN-M10X-A5
OFM106LP
!
!
IMPORTANT
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
!
WARNING
Do not store or use gasoline or other
flammable vapors and liquids, in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
should not be stored in the vicinity of
this or any other appliance.
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion,
which could cause property damage, personal injury, or death.
ELEMENTI
THE ART OF FIRE
OFM107LP

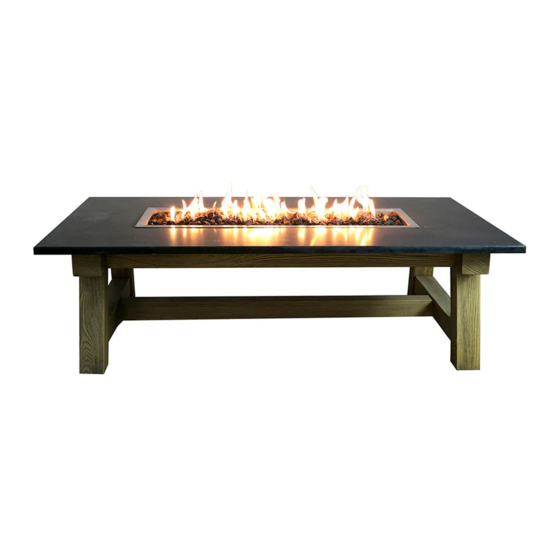

Workshop Coffee Table Owner's Manual
!
DANGER
OFM108LP
OFM110LP
Gas type: Propane
• If the information in this manual is not followed exactly,
a fire or explosion may result causing property damage
personal injury or loss of life.
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
Improper Installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage.
OFM112LP
!
WARNING
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
Save these instructions for
future reference. If you are
assembling this unit for someone
else, give this manual to him or her
to read and savefor future
reference.
!
WARNING
For outdoor use only
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
R
US
C
