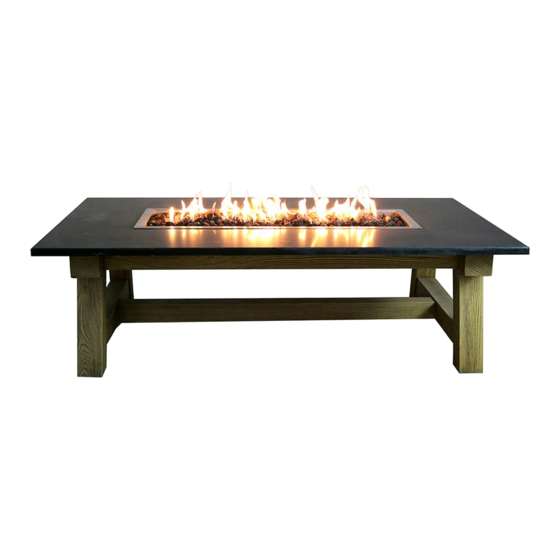

Manual No.:ANGE12EN-M10X-A1
OFM106
!
!
IMPORTANT
SAVE THESE
INSTRUCTIONS
!
WARNING
For outdoor use only. DO NOT use
for cooking. DO NOT use under any
overhead enclosure.
R
C
US
!
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
ELEMENTI
THE ART OF FIRE
OFM107
Gas type: Natural Gas
If the information in this manual
is not followed exactly, a fire or
explosion may result causing
property damage personal injury
or loss of life.
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
Improper Installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage.
DANGER
OFM108
OFM110
Owner's Manual
!
!
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
This unit is not for use with propane. Use only with
Natural gas.
OFM112
WARNING
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
Save these instructions for
future reference. If you are
assembling this unit for someone
else, give this manual to him or her
to read and savefor future
reference.
!
WARNING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ELEMENTI OFM106
Summary of Contents for ELEMENTI OFM106
- Page 1 Manual No.:ANGE12EN-M10X-A1 ELEMENTI THE ART OF FIRE OFM106 OFM107 OFM108 OFM110 OFM112 Owner's Manual Gas type: Natural Gas IMPORTANT WARNING SAVE THESE If the information in this manual Read the installation, operation INSTRUCTIONS is not followed exactly, a fire or...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Information -----------------------------------------------------------------------3 Natural Gas Warnings -------------------------------------------------------------------------------5 Parts List ------------------------------------------------------------------------------------------------7 Pre-use Instructions ---------------------------------------------------------------------------------12 Lighting Instructions ---------------------------------------------------------------------------------13 Care and Cleaning -----------------------------------------------------------------------------------14 Gas Component Connection Checks -----------------------------------------------------------15 Troubleshooting --------------------------------------------------------------------------------------17 Warranty -----------------------------------------------------------------------------------------------19 DANGER CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY IF YOU SMELL GAS • Shut off gas supply to the fire table. • Extinguish any open fame. • Do not try lighting any appliance. • Do not touch any electrical switch; do not use any phone in your building. •... - Page 4 If the hose is damaged,cracked or cut, it must be replaced before using the gas fire table. The hose assembly can only be replaced with a hose assembly specified by the manufacturer. Please call Elementi at 800-678-7294 . 4 / 20...
-
Page 5: Natural Gas Warnings
The burner assembly cannot be replaced. Please contact Elementi at 800-678-7294 for technical support. • Place the hose out of the pathways where people may trip over it. Do not place the hose in areas where it may be subjected to accidental damage. - Page 6 NATURAL GAS DANGERS AND WARNINGS Never store or use gasoline or other volatile substance in the vicinity of this fire table. Natural Gas Connection Connect a manual shut-off valve to gas supply line. Apply sealing compound or pipe thread tape of the type resistant to the action of natural gas on all male pipe threads.
-
Page 7: Parts List
PARTS LIST Fire Table Natural Gas Hose and Quick Disconnect Lava Rock Battery 7 / 20... - Page 8 ASSEMBLY INSTRUCTIONS Install the AAA battery as shown in the diagram below. Battery not included. Place lava rock by hand. DO NOT dump bag out in to the tray to avoid clogging the burner with dust. Position the lava rock (13.2 lbs / 6 kgs) to a level about 1” above the t op of the burner.
- Page 9 ASSEMBLY INSTRUCTIONS Connecting your Fire Table to the Natural Gas Source A professionally installed shut-off valve between the supply piping and the socket is recommended by the National Fuel Gas Code. Socket connection must be made outdoors. 9 / 20...
- Page 10 ASSEMBLY INSTRUCTIONS Connecting the Socket Coat the gas supply pipe nipple with gas resistant pipe compound or approved Teflon PTFE tape. Screw socket onto gas supply pipe (house gas source) as shown to the right, and wrench tighten. The quick disconnect socket should never be connected to the fire table.
- Page 11 ASSEMBLY INSTRUCTIONS Using the Quick Connect Socket Pull back the sleeve on the quick disconnect socket and insert the unattached end of the gas hose into the socket. Release the sleeve and continue pushing the hose into the socket until the sleeve snaps into the locked position. After making all connections, perform a leak test as described on page 12 of this manual.
-
Page 12: Pre-Use Instructions
If any bubbles appear turn natural gas off, reconnectand re-test. If you continue to see bubbles after several attempts, disconnect natural gas source and contact Elementi at Check for leaks at these locations 800-678-7294 for assistance. -
Page 13: Lighting Instructions
LIGHTING INSTRUCTIONS Using the Ignitor 1. Read and understand all operating instructions before lighting. Ensure that all protective film has been removed from stainless burn tray prior to lighting. 2. Burner control knob must be in the “OFF” position. 3. Connect natural gas source (see above pages). 4. -
Page 14: Care And Cleaning
DO NOT tamper with this appliance. This is DANGEROUS and will void the warranty. Any part found to be faulty must be replaced with an approved part, WARNING confirmed by manufacturer. For technical support contact Elementi at 800-678-7294 . General Care and Cleaning This outdoor fireplace should be cleaned regularly to ensure safe use and extend product life. -
Page 15: Gas Component Connection Checks
GAS COMPONENT CONNECTION CHECKS If the burner will not light or stay lit, please perform the following checks. 1. Make sure the electrode wire is correctly connected. Both electrode wires must be fully inserted into the igniter box. the inner side Valve Thermocouple... - Page 16 GAS COMPONENT CONNECTION CHECKS 5mm / 0.196” Thermocouple Igniter Pin 3. Make sure that the igniter pin and thermocouple are correctly positioned. - The igniter pin should be pointed straight to the thermocouple. - The thermocouple should be positioned 5mm / 0.196” away from the burner tube. Valve Thermocouple Wire Thermocouple...
-
Page 17: Troubleshooting
-Call ELEMENTI at 800-678-7294 for technical support. Possible Cause 4: Wire loose or disconnected. -Reference page 16, step 1, reconnect wire. Call Elementi at 800-678-7294 . Possible Cause 5: Wire is shorting (sparking) between igniter and electrode. -Call ELEMENTI at 800-678-7294 for support. - Page 18 TROUBLESHOOTING Problem: Sudden drop in gas flow, or a reduced flame height Possible Cause 1: Out of gas. -Call your local gas company. Possible Cause 2: Excess flow safety device may have been activated. -Turn control knob to “OFF”, wait 30 seconds and light outdoor fire table. If flames are still too low reset the excessive flow safety device by turning off the control knob and the gas supply.
-
Page 19: Warranty
1 year from the date of purchase. In the event of such defects Elementi will, at its option, repair or replace the defective product. The foregoing is at the discretion of Elementi. - Page 20 ELEMENTI THE ART OF FIRE Ocean Rock USA LLC 1300 W. 9th St., Upland, CA 91786 www.elementifire.com info@elementifire.com Tel: 800-678-7294...
