IMPORTANT
SAVE THESE
INSTRUCTIONS
WARNING
For outdoor use only. DO NOT use
for cooking. DO NOT use under any
overhead enclosure.

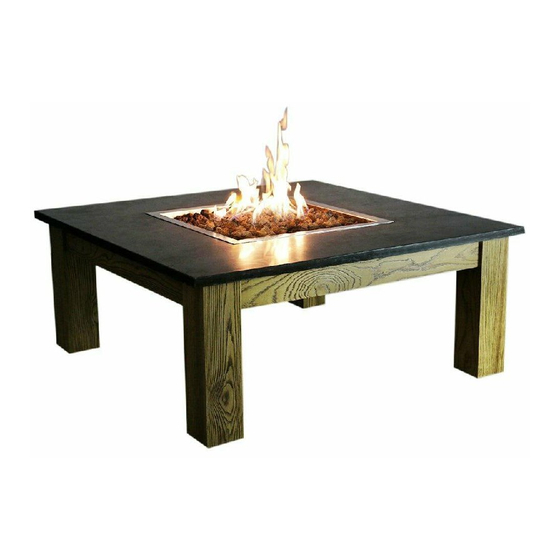

OFM103-NG
Amish Table owner's manual
If the information in this manual is not
follow exactly, a fire or explosion may
result causing property damage
personal injury or loss of life
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or
property damage.
DANGER
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, keep away
from the appliance and
immediately call your gas supplier
or fire department.
1/18
!
!
Read the
and maintenance instructions
thoroughly before installing or
servicing this equipment.
Save these instructions for future
reference. If you are assembling
this unit for someone else, give
this manual to him or her to read
and save for future reference.
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
This unit is not for use with
propane. Use only with Natural
gas.
installation, operation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OFM103-NG and is the answer not in the manual?

Questions and answers

Related Manuals for ELEMENTI OFM103-NG

Summary of Contents for ELEMENTI OFM103-NG

  • Page 1 OFM103-NG Amish Table owner’s manual IMPORTANT SAVE THESE Read the installation, operation If the information in this manual is not follow exactly, a fire or explosion may and maintenance instructions INSTRUCTIONS thoroughly before installing or result causing property damage personal injury or loss of life servicing this equipment.

  • Page 2: Table Of Contents

    Table of Contents Important Safety Information Natural Gas Warnings Parts List Pre-use Instructions Lighting Instructions Care and Cleaning Gas Component Connection Checks Troubleshooting Warranty DANGER CARBON MONOXIDE HAZARD Never use this appliance in an enclosed space such as camper, tent, car or home. 2/18...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY IF YOU SMELL GAS: • Shut off gas supply to the fire table. • Extinguish any open flame. • Do not try lighting any appliance. • Do not touch any electrical switch, do not use any phone in your building. •...
  • Page 4 If the hose is damaged, cracked or cut, it must be replaced before using the gas fire table. The hose assembly can only be replaced with a hose assembly specified by the manufacturer. Please call Elementi at 1-909-985-5553. 4/18...

  • Page 5: Natural Gas Warnings

    fire table must not be used. The burner assembly cannot be replaced. Please contact Elementi at 909-985-553 for technical support. • Place the hose out of the pathways where people may trip over it. Do not place the hose in areas where it may be subjected to accidental damage.
  • Page 6 NATURAL GAS DANGERS AND WARNINGS Continued Never store or use gasoline or other volatile substance in the vicinity of this fire table. Natural Gas Connection Connect a manual shut-off valve to gas supply line. Apply sealing compound or pipe thread tape of the type resistant to the action of natural gas on all male pipe threads.

  • Page 7: Parts List

    PARTS LIST Fire Table Natural Gas Hose and Quick Disconnect Lava Rock 7/18...
  • Page 8 Install the AAA battery as shown in the diagram below. Battery included. Place lava rock by hand. DO NOT dump bag out in to the tray to avoid clogging the burner with dust. Position the lava rock (10kgs) to a level about 1” above the t op of the burner.
  • Page 9 Connecting your Fire Table to the Natural Gas Source A professionally installed shut-off valve between the supply piping and the socket recommended by the National Fuel Gas Code. Socket connection must be made outdoors. House Natural Gas Piping Connecting the Socket Coat the gas supply pipe nipple with gas resistant pipe compound or approved Teflon PTFE tape.
  • Page 10 Using the Quick Connect Socket Pull back the sleeve on the quick disconnect socket and insert the unattached end of the gas hose into the socket. Release the sleeve and continue pushing the hose into the socket until the sleeve snaps into the locked position. After making all connections, perform a leak test as described on page 11 of this manual.

  • Page 11: Pre-Use Instructions

    If any bubbles appear turn natural gas off, reconnect and re-test. If you continue to see bubbles after several attempts, disconnect natural gas source and contact Elementi at 1-909-985- 5553 for assistance. Check for leaks at these locations If no bubbles appear after one-minute turn source OFF , wipe away solution and proceed.

  • Page 12: Lighting Instructions

    LIGHTING INSTRUCTIONS Using the Igniter 1. Read and understand all operating instructions before lighting. Ensure that all protective film has been removed from stainless burn tray prior to lighting. 2. Burner control knob must be in the “OFF” position. 3. Connect natural gas source (see above pages). 4.

  • Page 13: Care And Cleaning

    DO NOT tamper with this appliance. This is dangerous and will void the warranty. Any part found to be faulty must be replaced with an approved part, confirmed by the manufacturer. For technical support or replacement parts contact Elementi at 1-909-985-5553. General Care and Cleaning This outdoor fireplace should be cleaned regularly to ensure safe use and extend product life.

  • Page 14: Gas Component Connection Checks

    GAS COMPONENT CONNECTION CHECKS If the burner will not light or stay lit, please perform the following checks. Make sure the electrode wire is correctly connected. Both elect rode wires must be fully inserted in to the igniter box. Make sure that the pilot housing is unobstructed. Clear any debris on top of the pilot housing and make sure there is no debris between the igniter pin, thermocouple and the burner tube CORRECT...
  • Page 15 GAS COMPONENT CONNECTION CHECKS Thermocouple Igniter Pin 3. Make sure that the igniter pin and thermocouple are correctly positioned. - The igniter pin should be pointed straight to the thermocouple. - The thermocouple should be positioned 5mm away from the burner tube. Valve Thermocouple Wire Thermocouple...

  • Page 16: Troubleshooting

    -Call Elementi at 909-985-5553 for technical supporting. Possible Cause 4: Wire loose or disconnect ed. -Reference page 14, step 1, reconnect wire. Call Elementi at 909-985-5553 Possible Cause 5: Wire is shorting (spark) between igniter and electrode. -Call Elementi at 909-985-5553 for supporting.
  • Page 17 TROUBLESHOOTING Problem: Sudden drop in gas flow, or a reduced flame height Possible Cause 1: Out of gas. Call your local gas company. Possible Cause 2: Excess flow safety device may have been activated. Turn control knob to “OFF”, wait 30 seconds and light outdoor fire table. If flames are still too low reset the excessive flow safety device by running off the control knob and the gas supply.

  • Page 18: Warranty

    1 year from the date of purchase. In the event of such defects Elementi will, at its option, repair or replace the defective product. The foregoing is at the discretion of Elementi.

Table of Contents
