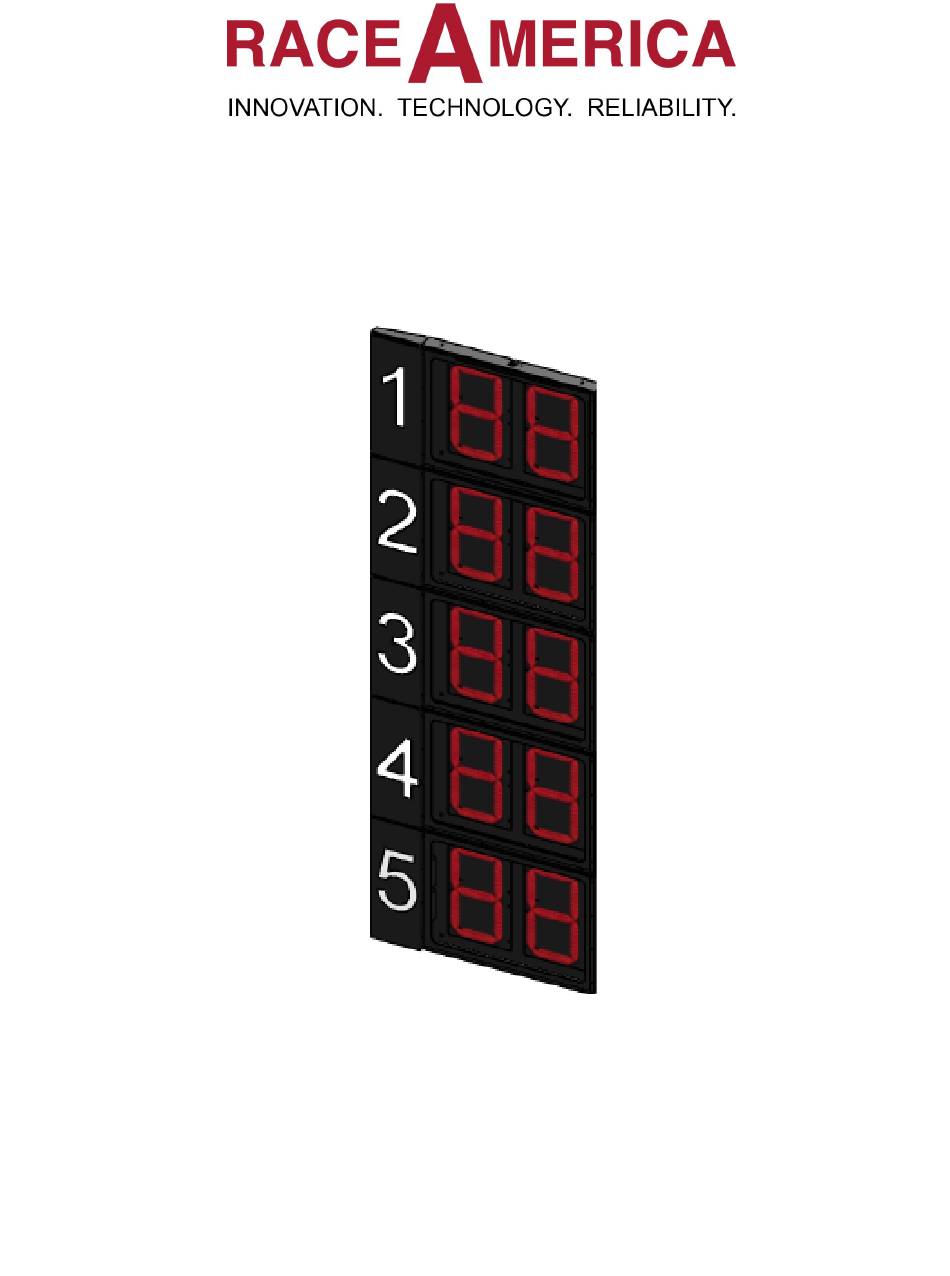

- Page 1 Wireless Leader Board Scoreboards Model 64835A/B, 64830A/B Rev B RaceAmerica Corporation 105 Bonaventura Drive San Jose, CA 95134 (408) 988-6188 www.raceamerica.com info@raceamerica.com Copyright 2020 RaceAmerica Corporation...
-
Page 2: Table Of Contents
RaceAmerica Racetrack Leader Boards Table of Contents PRODUCT INFORMATION LINKS ....................3 PRODUCT OVERVIEW ........................4 PACKAGE COMPONENTS ......................4 PRODUCT SPECIFICATIONS ......................4 LEADER BOARD SET-UP .........................5 SOFTWARE SET-UP ..........................9 LEADER BOARD MAINTENANCE ....................10 SPARE PARTS ...........................10 SUPPORT AGREEMENTS ......................10 Figures FIGURE 1a - DISPLAY MOUNTING ....................6 FIGURE 1b - DISPLAY MOUNTING .....................7... -
Page 3: Product Information Links
RaceAmerica Racetrack Leader Boards PRODUCT INFORMATION LINKS RaceAmerica Website www.raceamerica.com RaceAmerica Online Store store.raceamerica.com Raceamerica Online Forum www.raceamerica.com/forum Product Warranty www.raceamerica.com/legal.html Service & Repairs www.raceamerica.com/service.html Technical Assistance www.raceamerica.com/techcall.html Owner’s Manuals www.raceamerica.com/prodpdf.html Mounting Diagrams www.raceamerica.com/mountpdf.html Product Catalog www.raceamerica.com/catalog.html... -
Page 4: Product Overview
R a c e A m e r i c a L e a d e r B o a r d s a r e microprocessor controlled systems based upon 5 - Displays - Positions 1 thru 5 (64835A) the 7-segment format digit using the latest with left side position numbers technology Ultra-Bright LEDs. -
Page 5: Leader Board Set-Up
RaceAmerica Racetrack Leader Boards Total Dims: 54”W x 151” H x 4”D on the bottom of Position 4/9 (Figure 4). Place Mounting: 3/8-16 PEM nuts on back one 8-32x.375 screw in the bottom left corner of Housing: Powder coated aluminum Position 4/9. -
Page 6: Figure 1A - Display Mounting
RaceAmerica Racetrack Leader Boards Figure 1a... -
Page 7: Figure 1B - Display Mounting
RaceAmerica Racetrack Leader Boards Figure 1b... -
Page 8: Figure 2 - Interconnect Cable
RaceAmerica Racetrack Leader Boards Figure 4 - Position Displays together ready for mounting. Figure 2 - Locate the Circular Interconnect Cable between position displays Figure 5a - Install connecting screw between positions. Figure 3 - Connect the cable, twist until locked... -
Page 9: Software Setup
Licensed Sofwtare download page using the Software License issued at time of purchase. The ZIP file contains an install file for FTDI Drivers and an install file for the RaceAmerica software. STEP 2 - Install the Software Open the ZIP file and drag the two EXE files to the desktop. -
Page 10: Leader Board Maintenance
RaceAmerica recommends some spare parts. While the Leader Board may not shut down the racing action, a spare USB Wireless Unit and antennas should be considered. Contact RaceAmerica for availability and pricing of spares items. SUPPORT AGREEMENTS Support agreements are available from... - Page 11 RaceAmerica Racetrack Leader Boards REVISION HISTORY 05/04/2015 - Rev A Initial release...
