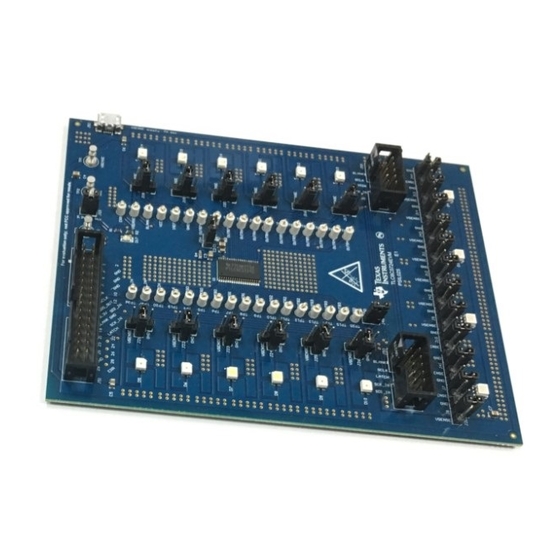

This document is a guide for using the TLC6C5716-Q1 EVM and GUI. The TLC6C5716EVM is designed
to be controlled with the TLC65716EVM GUI via a USB2ANY communication tool. The TLC6C5716EVM
can be powered by a micro-USB supply with a PC USB port. The TLC6C5716EVM GUI is designed to
demonstrate the TLC6C5716-Q1 features.
...................................................................................................................
1
2
3
Board Layout
4
Schematic and Bill of Materials
1
TLC6C5716EVM Kit
2
3
4
5
...................................................................................................................
6
7
1
Trademarks
All trademarks are the property of their respective owners.
1
Introduction
The TLC6C5716-Q1 device is a 16-channel, constant-current LED driver designed to support automotive
LED applications.
1.1
Features
The EVM has the following features:
•
16 constant-current-sink output channels
•
Excellent constant-current accuracy
•
7-bit individual dot correction
•
8-bit global brightness control
•
12-bit PWM dimming
•
LED protection and diagnostics
SLVUBD7 - May 2018
Submit Documentation Feedback
ADVANCE INFORMATION
TLC6C5716-Q1 Evaluation Module
.....................................................................................................
.................................................................................................................
............................................................................................
........................................................................................................
....................................................................................
......................................................................................
...........................................................................................................
....................................................................................................
...............................................................................................
...............................................................................................................
Copyright © 2018, Texas Instruments Incorporated
Contents
List of Figures
List of Tables
User's Guide
SLVUBD7 - May 2018
TLC6C5716-Q1 Evaluation Module
1
3
7
8
2
3
4
5
6
7
8
9
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TLC6C5716-Q1
Summary of Contents for Texas Instruments TLC6C5716-Q1
-
Page 1: Table Of Contents
SLVUBD7 – May 2018 TLC6C5716-Q1 Evaluation Module This document is a guide for using the TLC6C5716-Q1 EVM and GUI. The TLC6C5716EVM is designed to be controlled with the TLC65716EVM GUI via a USB2ANY communication tool. The TLC6C5716EVM can be powered by a micro-USB supply with a PC USB port. The TLC6C5716EVM GUI is designed to demonstrate the TLC6C5716-Q1 features. -
Page 2: Introduction
The following additional items are required to run the TLC6C5716EVM: • PC with the TLC6C5716EVM GUI installed • 5-V DC supply or USB port for LED supply TLC6C5716-Q1 Evaluation Module SLVUBD7 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 3: Test Setup And Results
VCC. • Connect the host computer to the USB2ANY board via a USB cable. xx xx xx xx • Connect the ribbon cable between the USB2ANY board and the TLC6C5716-Q1 EVM board. xx xx DC Supply Vsense USB cable... -
Page 4: Tlc6C5716Evm Gui Landing Page
TLC6C5716EVM GUI. A support document link is on bottom of the landing page. Figure 3. TLC6C5716EVM GUI Landing Page TLC6C5716-Q1 Evaluation Module SLVUBD7 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 5: Connection Status
Device Not connected, a green status indicator means Device connected. Click the Go Advanced button and a quick configuration page opens for control of the TLC6C5716EVM. Figure 4. Connection Status SLVUBD7 – May 2018 TLC6C5716-Q1 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 6: Advanced Settings Page
Figure 5. Advanced Settings Page 2.3.3 Device Cascading Use J34 and J35 to connect two TLC6C5716-Q1 EVMs in cascading mode. Note that users should remove J34 shunt during the cascading mode. TLC6C5716-Q1 Evaluation Module SLVUBD7 – May 2018 Submit Documentation Feedback Copyright ©... -
Page 7: Pcb Layout
ADVANCE INFORMATION Board Layout www.ti.com Board Layout Figure 6 illustrates the PCB layout of TLC6C5716EVM. Figure 6. PCB Layout SLVUBD7 – May 2018 TLC6C5716-Q1 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 8: Tlc6C5716Evm Schematic
TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TLC6C5716QDAPRQ1 OUTR5 OUTB5 OUTR6 OUTB6 OUTR7 OUTB7 IREF BLANK SDI_IN SCK_IN SENSE Figure 7. TLC6C5716EVM Schematic TLC6C5716-Q1 Evaluation Module SLVUBD7 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 9: Bill Of Materials
Constant-Current LED Driver with 7-Bit Dot Correction and 12-Bit PWM Dimming, DAP0038E (TSSOP-38) 4.7uF CAP, CERM, 4.7 µF, 16 V,±10%, X5R, 0805 0805 EMK212BJ475KG-T Taiyo Yuden SLVUBD7 – May 2018 TLC6C5716-Q1 Evaluation Module Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 10 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 11 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 12 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/ /www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 3.4 European Union 3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive): This is a class A product intended for use in environments other than domestic environments that are connected to a low-voltage power-supply network that supplies buildings used for domestic purposes.
- Page 13 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated...
- Page 14 IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products;...
