DESCRIPTION

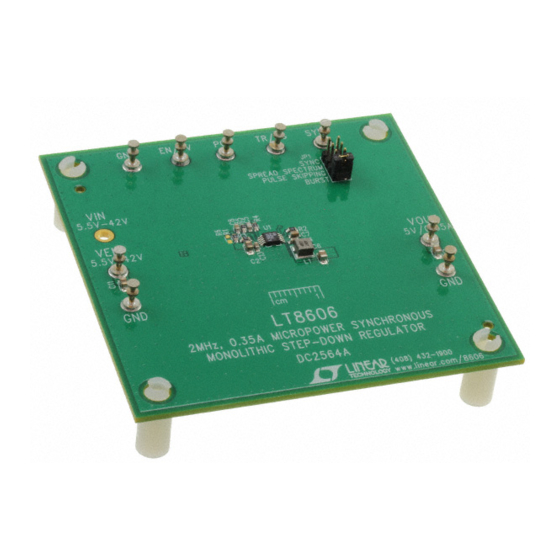

Demonstration Circuit 2564A is a 42V, 0.35A micropower
synchronous step-down regulator featuring the
The demo board is designed for 5V output from a 5.5V
to 42V input. The wide input range allows a variety of
input sources, such as automotive batteries and indus-
trial supplies. The LT8606 is a compact, high efficiency,
high speed synchronous monolithic step-down switch-
ing regulator that consumes less than 3μA of quiescent
current when output is regulated at 5V. Top and bottom
power switches, compensation components and other
necessary circuits are inside of the LT8606 to minimize
external components and simplify design.
The SYNC pin on the demo board is grounded by default
for low ripple Burst Mode
SKIPPING position can change the operation mode to
pulse-skipping operation. Once JP1 is on SPREAD SPEC-
TRUM position, VCC is applied to the SYNC pin for low
EMI spread spectrum operation. To synchronous to an
external clock, move JP1 to SYNC and apply the external
PERFORMANCE SUMMARY
SYMBOL
PARAMETER
V
Input Voltage Range
IN
V
Output Voltage
OUT
I
Maximum Output Current
OUT
f
Switching Frequency
SW
EFE
Efficiency at DC
42V, 0.35A Micropower Synchronous
LT
operation. Move JP1 to PULSE
®
Specifications are at T
CONDITIONS
V
DEMO MANUAL DC2564A
Step-Down Regulator
clock to the SYNC turret. Figure 1 shows the efficiency
8606.
of the circuit.
®
The demo board has an EMI filter installed. The radiated
EMI performances of the board (with EMI filter) are shown
in Figures 2 and 3. The red/green lines in Figures 2 and
3 are CISPR25 Class 5 peak/average limit. To use the
EMI filter, the input should be tied to VEMI, not VIN. An
inductor L2, which is a 0Ω jumper on the board by default
now, can be added in the EMI filter to further reduce the
conducted emission.
The LT8606 data sheet gives a complete description of
the part, operation and application information. The data
sheet must be read in conjunction with this demo manual
for DC2564A.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2564A
L, LT, LTC, LTM, Linear Technology, the Linear logo and Burst Mode are registered trademarks
of Analog Devices, Inc. All other trademarks are the property of their respective owners.
= 25°C
A
= 12V, I
= 0.35A
IN
OUT
LT8606
MIN
TYP
MAX
5.5
42
4.8
5
5.2
0.35
1.85
2
2.15
92.1
dc2564af
UNITS
V
V
A
MHz
%
1
