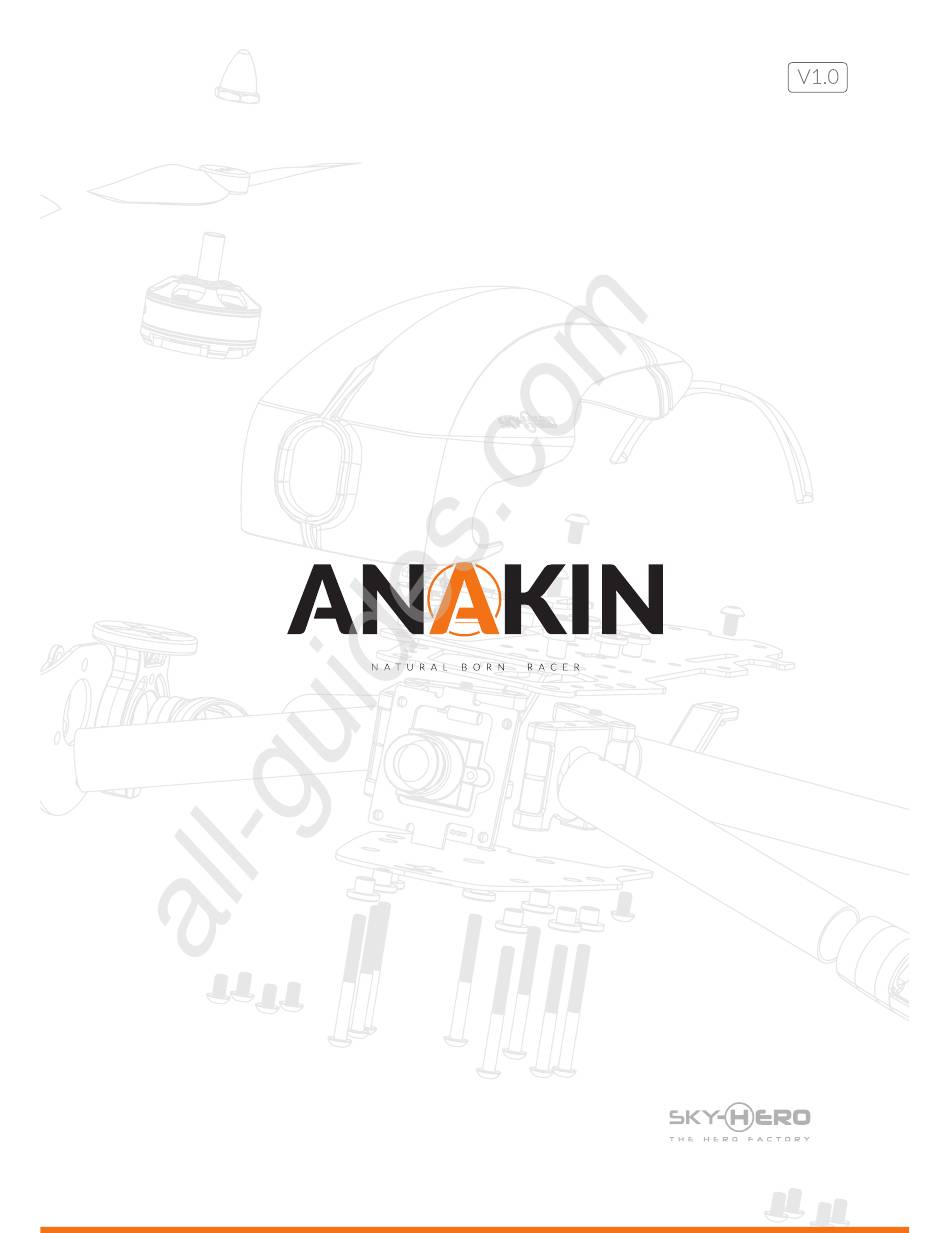

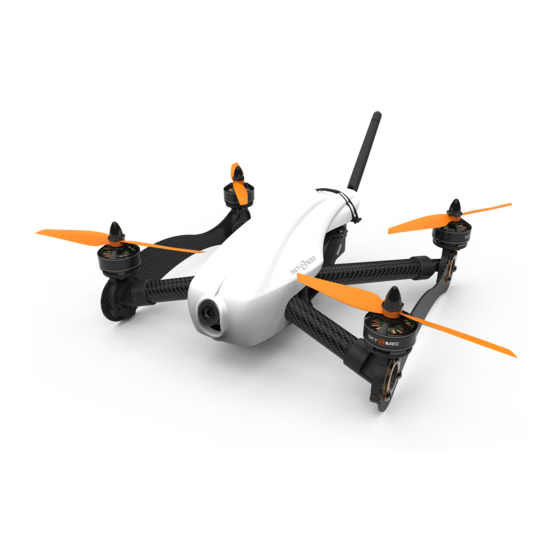

  • Page 1 All manuals and user guides at all-guides.com Assembly Instruction Manual 2015.08...
  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com TABLES OF CONTENT GLUE THE TUBES END’S ATTACH YOUR MOTORS ATTACH MOTOR MOUNTS ON ARMS ROUTE YOUR MOTOR CABLES FIX YOUR SIDE FRAME USING 2 SCREWS SOLDER YOUR ESC’S USE SCHRINK TUBE TO PROTECT YOUR ESC’S SLIDE ESC’S INTO THE TUBES PRESS THE INSERT IN POSITION CHOOSE THE POSITION OF YOUR ARMS...
  • Page 3 All manuals and user guides at all-guides.com SCREW 1/1 SCALE ISO 7380 M3X6MM ISO 7380 M3X4MM ISO 7380 M3X6TP MM ISO 7380 M3X30MM ISO 7380 M2.5X8MM HEX NUT 2.5MM...
  • Page 4: Glue The Tubes End's

    All manuals and user guides at all-guides.com GLUE THE TUBES END’S Use 5min epoxy glue USE EPOXY GLUE (Whipe out excess of glue with acetone) SKH01-106-F SKH01-106-R USE EPOXY GLUE USE EPOXY GLUE FIG. 1 SKH03-280 ( FRONT TUBE ) (ou SKH03-240) SKH03-280 (REAR TUBE (ou SKH03-240 )
  • Page 5: Attach Your Motors

    All manuals and user guides at all-guides.com ATTACH YOUR MOTORS Warning! Before starting: - Make sure to identify your clockwise (CW) and counter-clockwise (CCW) motors*. - Be aware that all your wires will go backwards as shown in figure 3 SKH04-009 SKH01-105 FIG.
  • Page 6: Attach Motor Mounts On Arms

    Pay attention to motor support orientation. (See figure) You must build 1CW+1CCW with the motors’s wires oriented to the side of the nut for Anakin’s front side And 1CW+1CCW with the motors’s wires oriented to the side of the screw for Anakin’s rear side FIG.
  • Page 7: Route Your Motor Cables

    All manuals and user guides at all-guides.com ROUTE YOUR MOTOR CABLES Rear cables = 220mm long / Front cables = 150mm long FIG. 6 FIX YOUR SIDE FRAME USING 2 SCREWS Build left + right side ISO 7380 M3x8TP ( LEFT SIDE ) FIG.
  • Page 8: Solder Your Esc's

    All manuals and user guides at all-guides.com SOLDER YOUR ESC’S And check your motors direction USE SOLDER SKH04-014* & WELDING Let the esc outside the tube and connect it to check your motor rotation FIG. 8 SKH04-014* Use schrink tube to protect your esc’s FIG.
  • Page 9: Slide Esc's Into The Tubes

    All manuals and user guides at all-guides.com SLIDE ESC’S INTO THE TUBES FIG. 10...
  • Page 10: Press The Insert In Position

    All manuals and user guides at all-guides.com PRESS THE INSERT IN POSITION In order to mount the frame you must first insert the PEM’s by tightening them one by one until you reach themaximum position. Use the threaded insert on upper frame. SKH03-200-S SH54-01 (FROM SKH07-111)
  • Page 11 All manuals and user guides at all-guides.com SLIDE YOUR FRAME SPACER AROUND THE TUBES (Use the threaded insert on upper frame) FIG. 12 FRONT SPACER REAR SPACER SKH01-103-F SKH01-103-R FIG. 13 SKH01-103-F SKH01-103-R Small center hole must always face up...
  • Page 12: Choose The Position Of Your Arms

    All manuals and user guides at all-guides.com CHOOSE THE POSITION OF YOUR ARMS ACCORDING THE CENTER OF GRAVITY ADJUSTMENT YOU WANT FRONT SPACER REAR SPACER SKH01-103-F SKH01-103-R FIG. 14 FRONT DOWN HIGH CG Standard setup REAR DOWN FRONT UP LOW CG REAR UP FRONT DOWN CROSSED SETUP...
  • Page 13: Slide Your Motor Shafts Into The Mounting Jig

    All manuals and user guides at all-guides.com SLIDE YOUR MOTOR SHAFTS INTO THMOUNTING JIG FIG. 15...
  • Page 14: Screw Your Lower Frame

    All manuals and user guides at all-guides.com SOLDER YOUR ESC CABLES, EQUIPEMENTS CABLES, ( VTX, UBEC, LED, ETC... ) TO YOUR BATTERY CONNECTOR CABLES EQUIPEMENTS FIG. 16 BATTERY CONNECTOR CABLES SCREW YOUR LOWER FRAME (DO NOT OVERTIGHT) ISO7380 M3x30MM SKH03-200-L FIG.
  • Page 15: Fix Your Motor Mount

    All manuals and user guides at all-guides.com FIX YOUR MOTOR MOUNT FIG. 18 HEX NUT M2,5x0,5MM DIN912 M2,5x8MM...
  • Page 16 All manuals and user guides at all-guides.com SCREW THE THIRD SCREW FIG. 19 ISO7380 M3X30MM...
  • Page 17: Attach Your Z Spacers

    All manuals and user guides at all-guides.com ATTACH YOUR Z SPACERS FIG. 20 SKH01-104 ISO7380 M3x6MM ISO7380 M3x6 MM SKH01-109-00 SKH04-109-00 FIG. 21 Fix your camera plate in position SKH01-108-00 FIG. 22...
  • Page 18: Camera Angle

    All manuals and user guides at all-guides.com CAMERA ANGLE According to your level, you can adjust the angle of the camera as followed FIG. 23 Standard setup FIG. 24 20 ° FIG. 25 20 ° Optional parts...
  • Page 19: Adjust Motors Angle

    To adjust motor angle to banked position, you need to unscrew the plactic ring or alu ring on the side and tilt The motor mounts until the edge of the sideframes. WARNING! You need optional sideframes in order to do this. Check accessories in the Anakin section of our website (www.sky-hero.com) to order them or run to the closest Sky-Hero dealer! 0°...
  • Page 20: Attach Your Canopy

    All manuals and user guides at all-guides.com ATTACH YOUR CANOPY FIG. 28 SKH04-008-6 SKH04-008-5 SKH05-024-01 SKH05-024...
  • Page 21 All manuals and user guides at all-guides.com ATTACH YOUR CANOPY ISO7380 M3x30MM SKH04-10 (CC3D) YOUR VIDEO TRANSMITTER Optional parts...
