SKY-HERO Anakin Assembly Instructions Manual

Hide thumbs Also See for Anakin:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Assembly
Instruction Manual
2015.08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anakin and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SKY-HERO Anakin

Summary of Contents for SKY-HERO Anakin

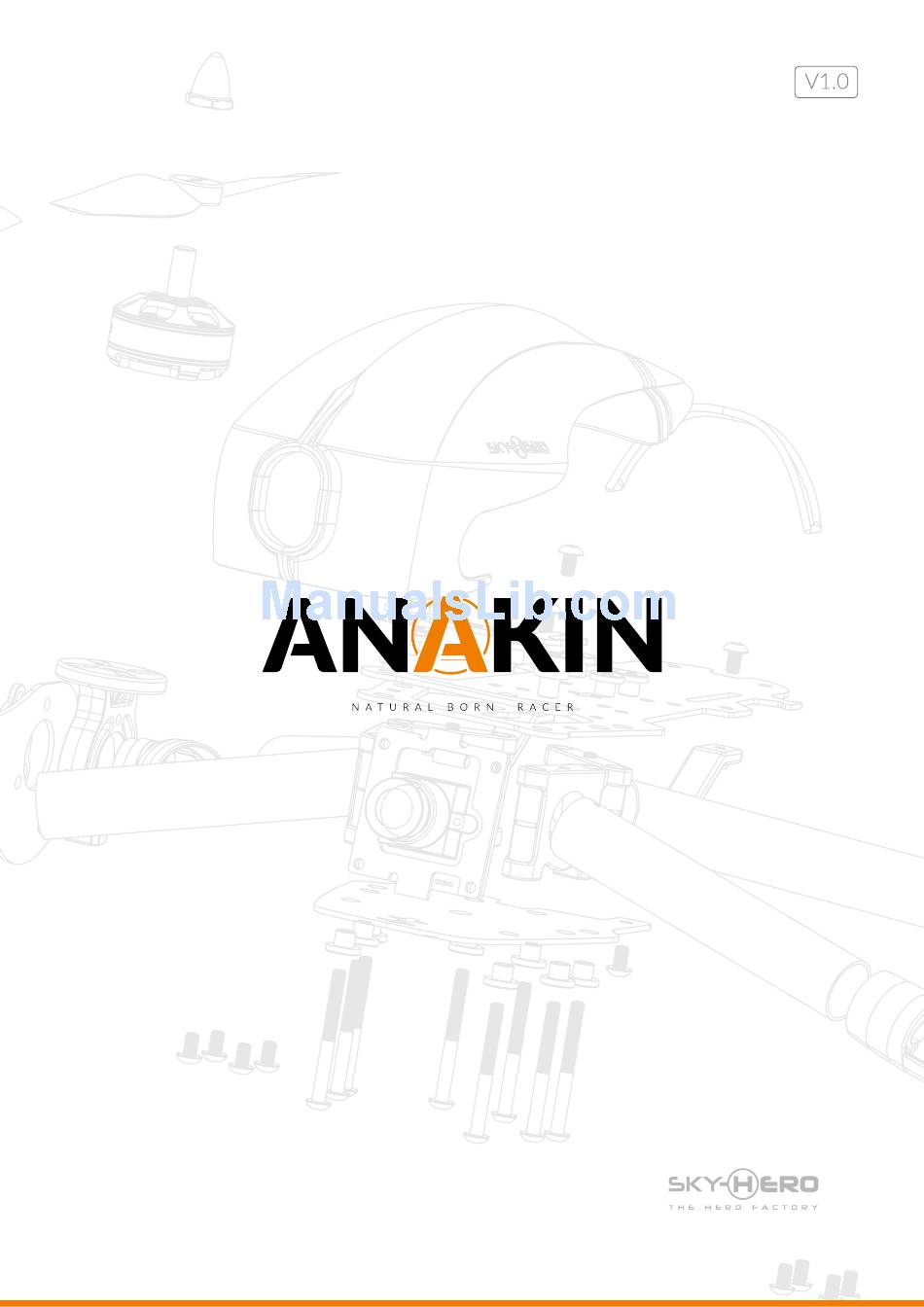

  • Page 1 Assembly Instruction Manual 2015.08...

  • Page 2: Table Of Contents

    TABLE OF CONTENT SCREWS 1/1 SCALE GLUE THE TUBES END’S ATTACH YOUR MOTORS ATTACH MOTOR MOUNTS ON ARMS ROUTE YOUR MOTOR CABLES FIX YOUR SIDE FRAME USING 2 SCREWS SOLDER YOUR ESC’S SLIDE ESC’S INTO THE TUBES PRESS THE INSERTS IN POSITION SLIDE YOUR FRAME SPACER AROUND THE TUBES CHOOSE THE POSITION OF YOUR ARMS SLIDE YOUR MOTOR SHAFTS INTO THE MOUNTING JIG...

  • Page 3: Screws 1/1 Scale

    SCREWS 1/1 SCALE ISO 7380 M3X6 ISO 7380 M3X4 ISO 7380 M3X6TP ISO 7380 M3X8TP ISO 7380 M3X30 DIN 912 M2.5X8 HEX NUT M2.5...

  • Page 4: Glue The Tubes End's

    GLUE THE TUBES END’S (Wipe out excess of glue with acetone) USE 5MIN EPOXY GLUE SKH01-106-F SKH01-106-R USE EPOXY GLUE USE EPOXY GLUE FIG. 1 SKH03-280 (FRONT TUBE) SKH03-280 (REAR TUBE) Please make sure you push the tube at the edge of the arm’s end...

  • Page 5: Attach Your Motors

    ATTACH YOUR MOTORS Warning! Before starting: - Make sure to identify your clockwise (CW) and counter-clockwise (CCW) motors*. - Be aware that all your wires will go backwards as shown in figure 3 SKH04-009 SKH01-105 FIG. 2 ISO 7380 M3X6 FIG.

  • Page 6: Attach Motor Mounts On Arms

    Pay attention to motor support orientation. (See figure 4) You must build 1CW+1CCW with the motors’s wires oriented to the side of the nut for Anakin’s front side and 1CW+1CCW with the motors’s wires oriented to the side of the screw for Anakin’s rear side FIG.

  • Page 7: Route Your Motor Cables

    ROUTE YOUR MOTOR CABLES Rear cables = 220mm long / Front cables = 150mm long FIG. 6 FIX YOUR SIDE FRAME USING 2 SCREWS Build left + right side ISO 7380 M3x8TP (LEFT SIDE) FIG. 7 SKH03-280-A SKH01-170-00 (OPTION = SKH06-001)

  • Page 8: Solder Your Esc's

    SOLDER YOUR ESC’S And check your motors direction USE SOLDER SKH04-014* & WELDING Let the esc outside the tube and connect it to check your motor rotation FIG. 8 SKH04-014* Use schrink tube to protect your esc’s FIG. 9 Optional parts...

  • Page 9: Slide Esc's Into The Tubes

    SLIDE ESC’S INTO THE TUBES FIG. 10...

  • Page 10: Press The Inserts In Position

    PRESS THE INSERTS IN POSITION In order to mount the frame you must first interlock the PEM’s by tightening them one by one until it’s totally inserted in the carbon plate. Use the threaded insert on upper frame. SKH03-200-S SH54-01 (FROM SKH07-111) SH54-03 (FROM SKH07-111)

  • Page 11: Slide Your Frame Spacer Around The Tubes

    SLIDE YOUR FRAME SPACER AROUND THE TUBES (Use the threaded insert on upper frame) FIG. 13 FRONT SPACER REAR SPACER SKH01-103-F SKH01-103-R FIG. 14 SKH01-103-F SKH01-103-R Small center hole must always face up...

  • Page 12: Choose The Position Of Your Arms

    CHOOSE THE POSITION OF YOUR ARMS ACCORDING THE CENTER OF GRAVITY ADJUSTMENT YOU WANT FRONT SPACER REAR SPACER SKH01-103-F SKH01-103-R FIG. 15 FRONT DOWN HIGH CG REAR DOWN Standard setup FRONT UP LOW CG REAR UP FRONT DOWN CROSSED SETUP REAR UP...

  • Page 13: Slide Your Motor Shafts Into The Mounting Jig

    SLIDE YOUR MOTOR SHAFTS INTO THE MOUNTING JIG FIG. 16...

  • Page 14: Solder Your Esc Cables, Equipements Cables To Your Battery Connector Cables

    SOLDER YOUR ESC CABLES, EQUIPEMENTS CABLES, ( VTX, UBEC, LED, ETC... ) TO YOUR BATTERY CONNECTOR CABLES EQUIPEMENTS FIG. 17 BATTERY CONNECTOR CABLES SCREW YOUR LOWER FRAME (DO NOT OVERTIGHT) ISO7380 M3X30 TIP: PEM’s are already pressed in position (see figure 11) SKH03-200-L SKH03-200-L (FROM SKH07-111)

  • Page 15: Fix Your Motor Mount

    FIX YOUR MOTOR MOUNT FIG. 19 HEX NUT M2,5X0,5 DIN912 M2,5X8...

  • Page 16: Screw The Third Screw

    SCREW THE THIRD SCREW FIG. 20 ISO7380 M3X8TP...

  • Page 17: Attach Your Z Spacers

    ATTACH YOUR Z SPACERS FIG. 21 SKH01-104 ISO7380 M3X6TP ISO7380 M3X6 SKH01-109-00 SKH04-109-00 FIG. 22 Fix your camera plate in position SKH01-108-00 FIG. 23...

  • Page 18: Camera Angle

    CAMERA ANGLE YOU CAN ADJUST THE ANGLE OF THE CAMERA AS FOLLOWED FIG. 24 Standard setup FIG. 25 20 ° FIG. 26 20 ° Optional parts...

  • Page 19: Adjust Motors Angle

    To adjust motor angle to banked position, you need to untight the plactic ring or alu ring on the side and tilt The motor mounts until the edge of the sideframes*. *You need optional sideframes in order to do this. Check accessories in the Anakin section of our website www.sky-hero.com ) to order them or run to the closest Sky-Hero dealer! 0°...

  • Page 20: Equipments Layout

    EQUIPMENTS LAYOUT SKH04-10 (CC3D) YOUR VIDEO TRANSMITTER FIG. 29 Optional parts...

  • Page 21: Attach Your Canopy

    ATTACH YOUR CANOPY FIG. 30 SKH04-008-6 SKH05-024-01 SKH05-024...
