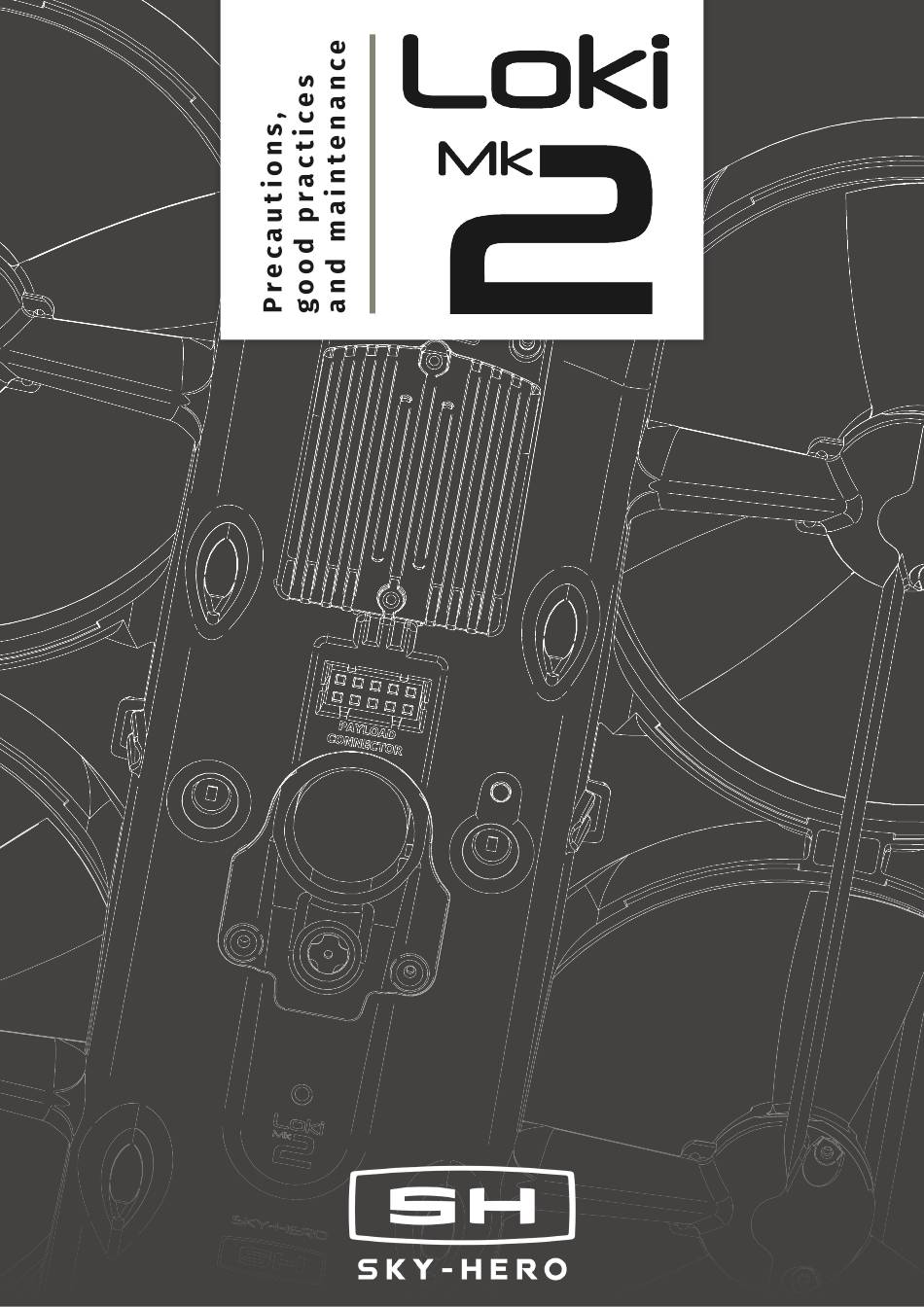

SKY-HERO Loki MK2 Maintenance Manual

Hide thumbs Also See for Loki MK2:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Loki MK2 and is the answer not in the manual?

Questions and answers

Summary of Contents for SKY-HERO Loki MK2

  • Page 2: Table Of Contents

    P r e c a u t i o n s , g o o d p r a c t i c e s a n d m a i n t e n a n c e GCS VERSION : 2.10.0 CONTENTS GOOD PRACTICES AND PRECAUTIONS Hovering...
  • Page 3 1. GOOD PRACTICES AND PRECAUTIONS Your Loki MK2 is equipped with multiple sensors which aid the pilot during the mission. However, this ge- nerates some trade-offs and limitations. The operator should always be the person in control and not the embedded computer;...
  • Page 4: Take Off - Landing

    b. Take off – Landing LIMITATIONS : WHEN TAKING OFF OR LANDING, THE UAV WILL HAVE THE SAME LIMITATIONS AS THE “HOVERING” PROCESS, SUCH AS FOLLOWING ITS OWN SHADOW, DRIFTING WHILE LANDING, OR BEING UNABLE TO GET AN ACCURATE POSITION HOLD AFTER TAKE-OFF. Advice •...
  • Page 5: After Crash

    e. After crash After a crash or a heavy impact, it is always recommended to perform a series of close inspections on the UAV. Motor arm position In the event of a heavy impact, the motor arms can slightly pop out of their position. If this happens, pop them back in place.
  • Page 6: Health Status

    Health status • The embedded computer will constantly monitor the health status of your Loki MK2’s main sensors and display them on the bottom right corner of your GCS. When the UAV is not flying, the sensors should be yellow.
  • Page 7: Maintenance

    No Tools Required The easiest and best way to keep your Loki MK2 in good condition, is to avoid the use of damaged propeller as much as possible; This generates a lot of vibrations, wears down the motor bearings quickly, and shortens the gyroscopes’...
  • Page 8: Landing Pads

    e. Landing pads No Tools Required, Instant CA Glue Refer to the appropriate video for landing pads change. As these are made of rubber, you can glue them with any instant glue. f. Upper frame Tools: T5 screwdriver + T9 screwdriver Refer to the appropriate video for upper frame change, and pay extra attention to the antennas;...
  • Page 9: Charger - Batteries

    CAUTION: THE OFFICIAL LOKI MK2 LIPO BATTERIES ARE THE ONLY AUTHORIZED BATTERIES. Your Loki MK2 uses a Sky-Hero proprietary battery with embedded power and balancing connectors and an extremely resilient plastic casing. This battery uses lithium technology which offers the best power to weight ratio.
  • Page 10 STEP 3: Select the “LiPo” setting and “3A” as the charging current on the charger. STEP 4: Plug the charge into a power source, then place your Loki MK2 Lipo battery on the hub. Never connect a battery or leave a battery connected to the hub unless all hub wires are plugged properly into the sky-hero charger;...
