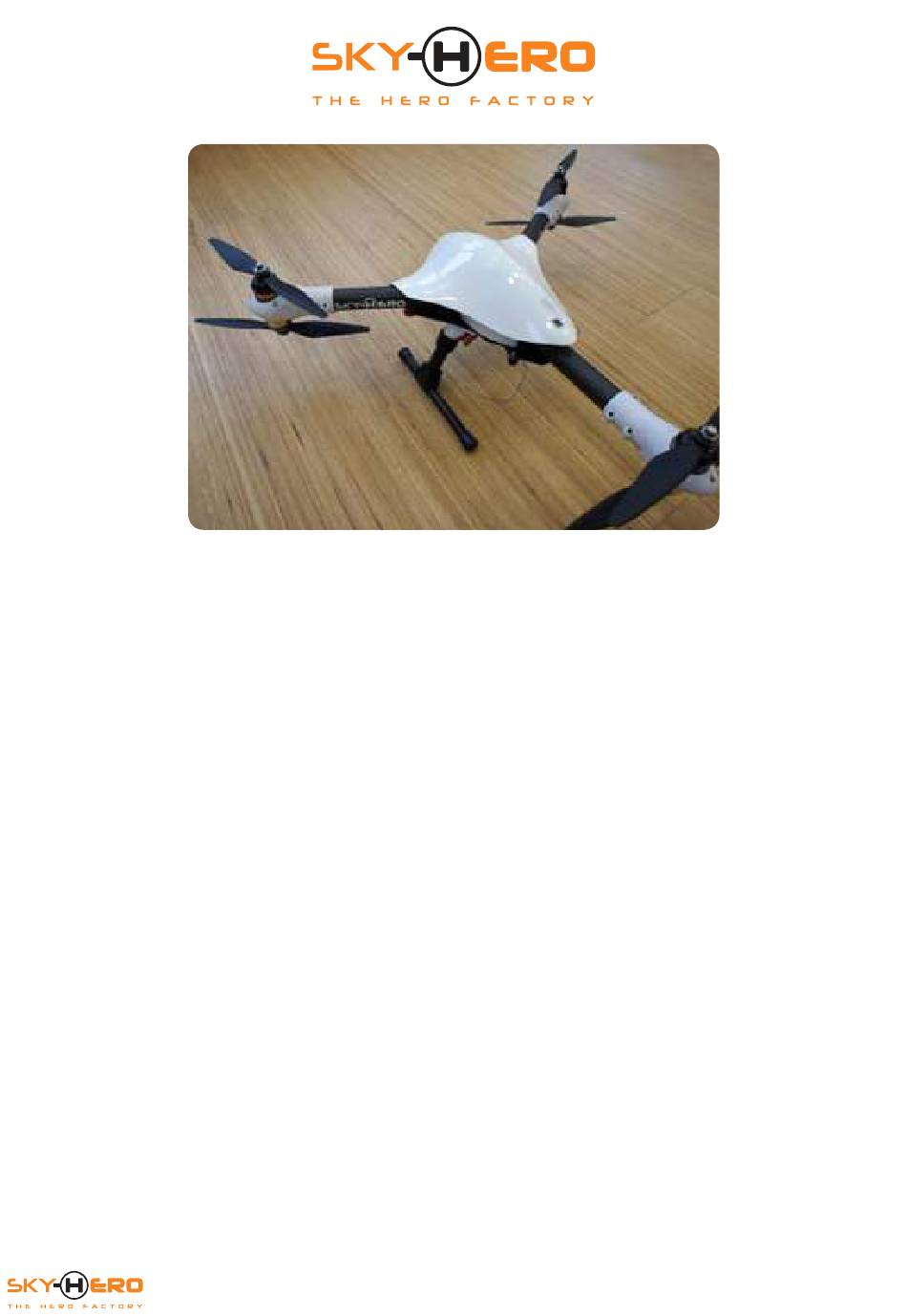

- Page 1 Assembly instructions Kits SKH00-301, SKH00-302 & SKH00-303 v e r b e e n Y o u ’ v e n e r o … o b e a H e s o c l o s e t Assembly instructions Spy / Kits SKH00-301, SKH00-302 & SKH00-303 / Page...
- Page 2 Mount de 3 frame-spacers. Screws used: PT 2,9*13mm Mount de 2 landing gear holders. Screws used: M3*10mm + M3 locknut PT 3*10mm Tip : Glue de screw in place on your frame for later easy gear holder replacement… Mount de 4 silent blocks. Screws used: M4*10mm round head Mount your motors on motor holders.
- Page 3 Connect your ESC to your motors. Tip : Check your cable length depending on your frame size and flight controller. Check your motor rotation depending on your flight controller recommendations. Mount 2 motor holders on each arms. Screws used: M3*10mm + M3 locknuts Tip : Align the centering pins from your motor holders with the arms holes.
- Page 4 Place your flight controller and RX, route all your cables. Tip : The center of your frame is the hole… Use the 45 * 45 mm pattern for suitable flight controllers. Remove the knuckles and mount the upper frame. Use M4*40mm buttonhead in rear outer hole for fixing canopy standof.
- Page 5 Mount your landing leg, landing poles and landing caps. Screws used: M3*16mm + M3 locknuts Tip : Check the for correct logo orientation Screw the quick release nut on landing gear holder and slide legs into it. Tip : Do not over tight the nut and never tight it with no leg into it Drill a 8mm hole in your canopy and glue the grommet holder in place.
